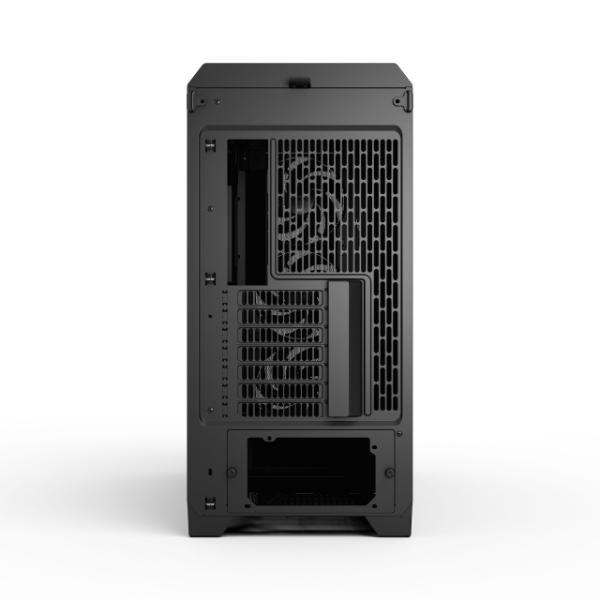

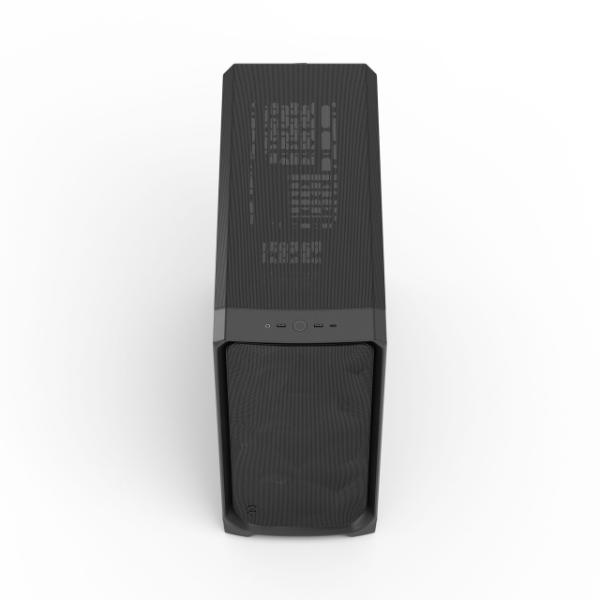

Fractal Design Meshify 3 XL Black Full-Tower Cabinet with Solid Side Panel, Type-C Port, E-ATX Support & Up to 420mm Radiator Support
Overview :
The Fractal Design Meshify 3 XL E-ATX Full Tower PC Case Cabinet – Black Solid Side Panel, Mesh Front Panel, USB Type‑C, 360 mm Radiator Support is a premium full‑tower PC case designed for high-end gaming and workstation builds. Highlighting expansive internal space, versatile cooling options, and sleek black steel construction,
FRACTAL DESIGN Meshify 3 Xl Black Solid supports E‑ATX motherboards up to 330 mm wide, accommodates GPUs up to 512 mm long and CPU coolers up to 182 mm tall—with room for massive multi‑radiator water cooling loops. Fractal Design Meshify 3 XL With three included 140 mm Momentum fans, top‑tier airflow, tool‑less panels, a 20 Gbps USB‑C front port, and premium cable-routing features, Fractal Design Meshify 3 XL E-ATX Full Tower PC Case Cabinet – Black Solid Side Panel, Mesh Front Panel, USB Type‑C, 360 mm Radiator Support case is ideal for whether you’re building a powerful custom loop or an ultra‑clean, high-performance system.
Key Features :
Maximum compatibility: Supports E‑ATX/ATX/mATX/ITX/SSI‑CEB/‑EEB with GPU length up to 512 mm and CPU cooler height up to 182 mm
Industry‑leading cooling: Comes with three high-performance 140 mm Momentum fans (LCP blades, FDB bearings) and offers space for up to ten 120/140 mm fans
Custom loop ready: Supports radiators up to 420 mm on top, 360 mm front and side—with removable brackets and air guides for easy installation
Optimized airflow: Sculpted ventilated front mesh enhances intake performance while side mesh sections channel air efficiently
Premium build convenience: Steel tool‑less panels with sliding top panel, fabric tab, thumb screws, cable covers and aligners simplify build and cable management
Modern connectivity: Front I/O includes one 20 Gbps USB‑C, two USB‑A 5 Gbps ports, plus combo audio jack
Dust and maintenance friendly: PSU dust filter, cable-routing cover, and easy access panels ensure cleanliness and upkeep
Durable design: Heavy duty steel construction, 10.5 kg solid side, backed by a 2‑year warranty
Specification Table :
| Specification | FD‑C‑MES3X‑01 (Meshify 3 XL) |
|---|---|
| Model | FD‑C‑MES3X‑01 Black Solid |
| Form Factor | Full Tower / E‑ATX compatible |
| Dimensions (W×H×D) | 245 × 515 × 575 mm (565 × 515 × 245 mm without feet) |
| Net Weight | 10.5 kg |
| Motherboards Supported | E‑ATX (max.330 mm) / ATX / mATX / ITX / SSI‑CEB/EEB |
| Expansion Slots | 7 full‑height PCIe |
| Drive Bays | 2×3.5″ or 4×2.5″ (behind MB tray), +1×dedicated 2.5″ |
| GPU Clearance | Up to 512 mm (7‑slot width, cable inclusive) |
| CPU Cooler Height | Up to 182 mm |
| PSU Length | Up to 230 mm ATX |
| Included Fans | 3×140 mm Momentum (LCP blades, FDB bearings) |
| Fan Support | Front: up to 3×180/140/120; Top: 3×140/120; Side: 3×140; Rear: 1×140/120 |
| Radiator Support | Front: 360/280 mm; Top: 420/360/280 mm (up to 475 mm); Side: 360 mm; Rear: 140 mm |
| Front I/O Ports | 1×USB‑C 3.2 Gen 2×2 (20 Gbps), 2×USB‑A 3.2 Gen 1 (5 Gbps), 1×combo audio jack |
| Material / Color | Steel / Matte Black |
| Dust Filters / Cable Routing | PSU filter, cable covers, aligners & straps |
| Warranty | 2 years |
