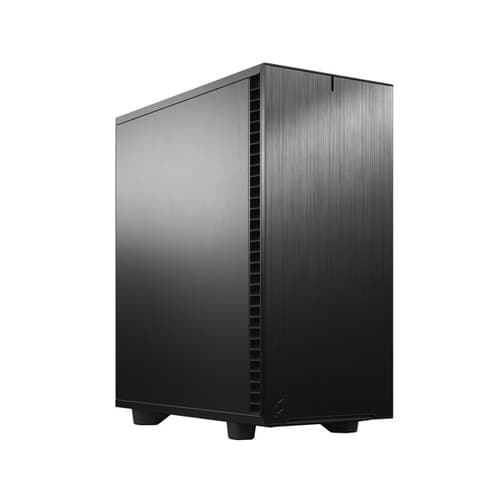

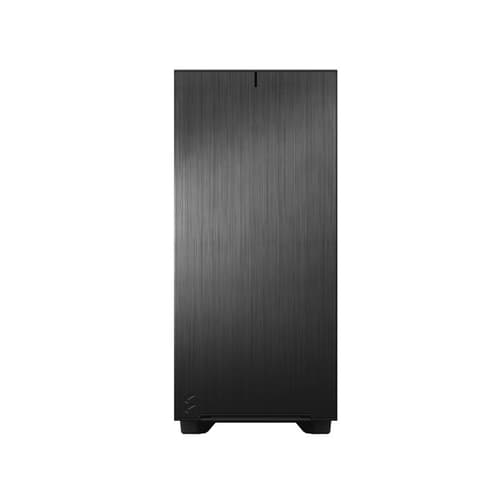

Fractal Design Define 7 Compact Black Mid‑Tower Cabinet with USB Type‑C, Sound‑Dampened Steel Panels, ATX Support & Up to 360 mm Radiator Support
Overview :
The Fractal Design Define 7 Compact Black mid‑tower chassis blends minimalist Scandinavian aesthetics with premium materials and performance-ready features. Designed for ATX, micro‑ATX, and mini‑ITX builds,Fractal Design Define offers USB 3.2 Gen 2 Type‑C front I/O, a sleek brushed aluminum front panel, and industry-leading sound-dampening for whisper-quiet operation. Fractal Design Define Builders will appreciate the modular layout, comprehensive cable management, and support for high-end cooling, including front-mounted 360 mm radiators.
Key Features :
Spacious Compact Design: Holds full-sized ATX motherboards and GPUs up to 360 mm, while preserving a compact footprint.
Sound-Dampened Construction: High-density steel panels with industrial-grade damping keep noise to a minimum.
Premium Aluminum Finish: Brushed aluminum front and tool-less top latch convey a high-end, clean aesthetic.

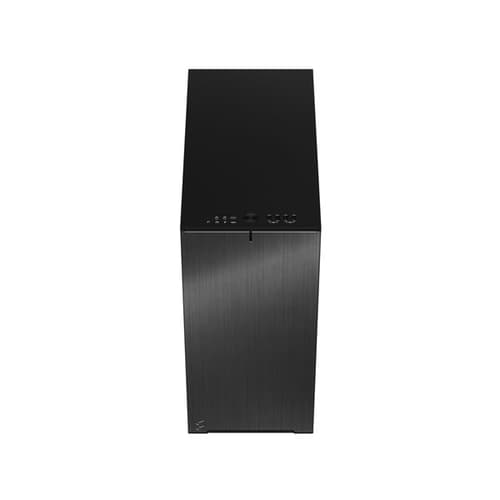

USB-C Front I/O: Includes a USB 3.2 Gen 2 Type‑C port (10 Gbps) plus four USB-A ports and audio jacks.
Robust Cooling Options: Supports up to seven 120 mm (or four 140 mm) fans, with 360 mm front, 240 mm top, and 120 mm rear/bottom radiator support.
Included Fans: Ships with one 140 mm Dynamic X2 GP‑14 (front) and one 120 mm GP‑12 (rear).

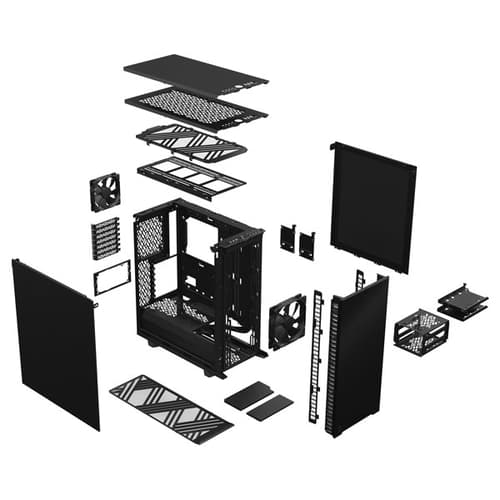

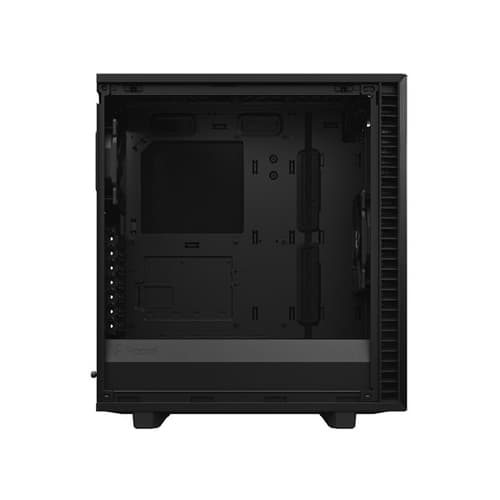

Modular Interior: Removable HDD cage, multi-bracket system for SSD/pump, and tool-less access panels facilitate build customization.

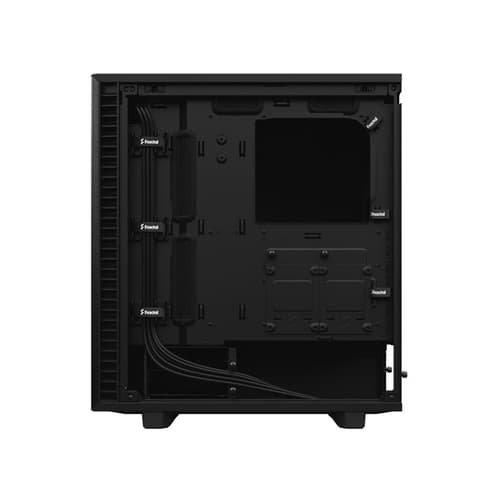

Exceptional Cable Routing: Offers 17–28 mm of behind-tray space, complete with grommets and Velcro straps.
Specifications Table :
| Category | Specification |
|---|---|
| SKU / Model | Fractal Design Define 7 Compact Black (FD‑C‑DEF7C‑01) |
| Form Factor | Mid‑Tower (supports ATX, Micro‑ATX, Mini‑ITX) |
| Materials | Brushed aluminum front, steel panels with sound-dampening |

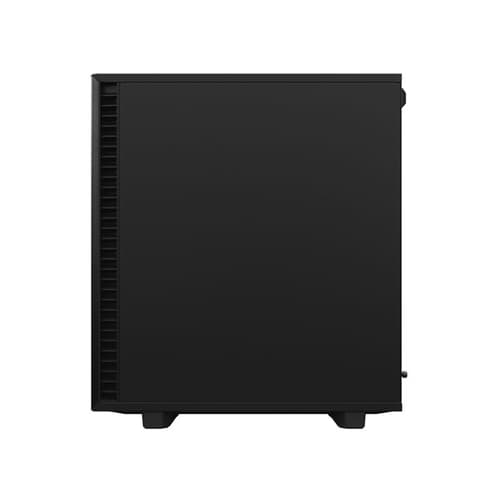

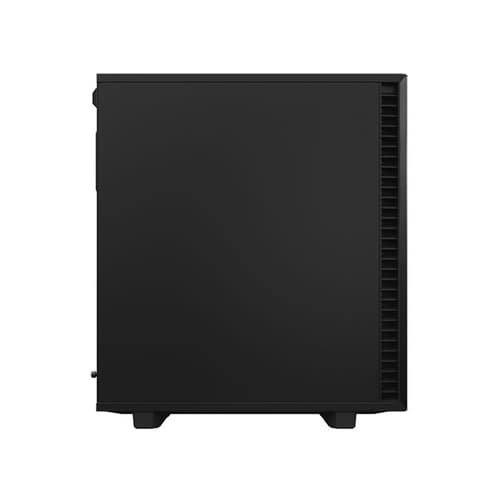

| Side Panels | Steel (both sides) |
| Front I/O | 1× USB‑C (Gen 2), 2× USB‑A 3.0, 2× USB‑A 2.0, audio I/O, power/reset |
| Drive Bays | 2× 3.5″/2.5″ universal + 2× 2.5″ dedicated trays |

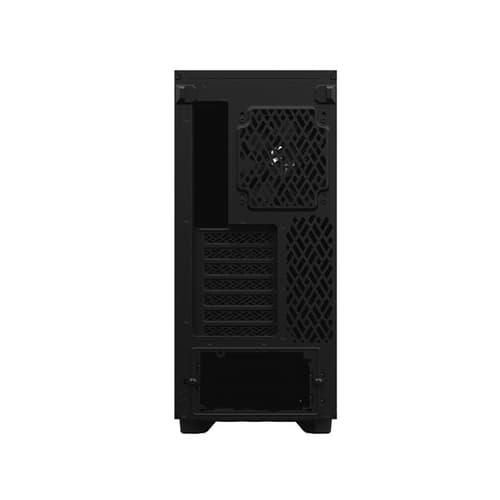

| Expansion Slots | 7 full-height |
| Included Fans | 1× 140 mm GP‑14 front, 1× 120 mm GP‑12 rear |
| Fan Support | Front: 3×120 or 2×140 mm; Top: 2×120/2×140 mm; Rear: 1×120 mm; Bottom: 1×120 mm |
| Radiator Support | Front up to 360 mm; Top up to 240 mm; Rear/Bottom up to 120 mm |
| Max GPU Length | 360 mm without front fan; 341 mm with fan |
| Max CPU Cooler Height | 169 mm |
| Max PSU Length | 200 mm (165 mm with HDD cage + fan) |
| Cable Clearance | 17–28 mm behind tray |
| Dust Filters | Magnetic front, top, full-length bottom |
| Dimensions (W×H×D) | 210 × 474 × 427 mm |
| Weight | ~8.6 kg |
| Warranty | 2 years |
