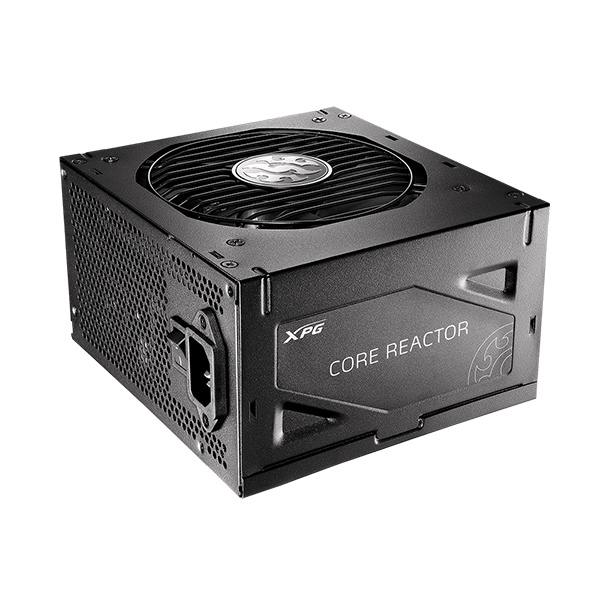

XPG Core Reactor 750G 80 Plus Gold Power Supply :
XPG Core Reactor 750G is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
Features :
- 80 Plus Gold Certified
- Compact with Modular Design
- Intelligent, Low-Noise Fan-Curve
- Premium 100% Japanese Capacitors
- Industrial-Grade Protection
- 10-Year Warranty
Overview :
80 Plus Gold Certified
The 80 Plus Gold certified XPG Core Reactor 750G gives you 90% efficiency at 50% load
Cybenetics LAMBA / ETA Certified
XPG Core Reactor 750G is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
For more information on XPG CORE REACTOR’s Cybenetics certifications, please visit XPG CORE REACTOR SERIES PSU – Cybenetics Labs – PSU Efficiency & Noise Level Certifications.

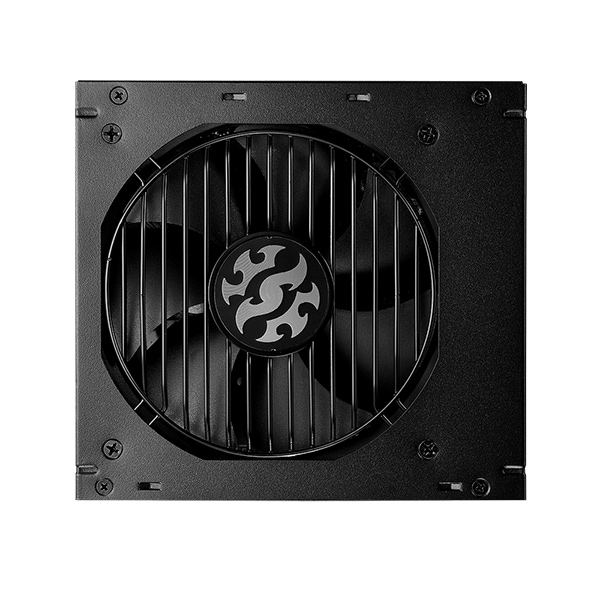

Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

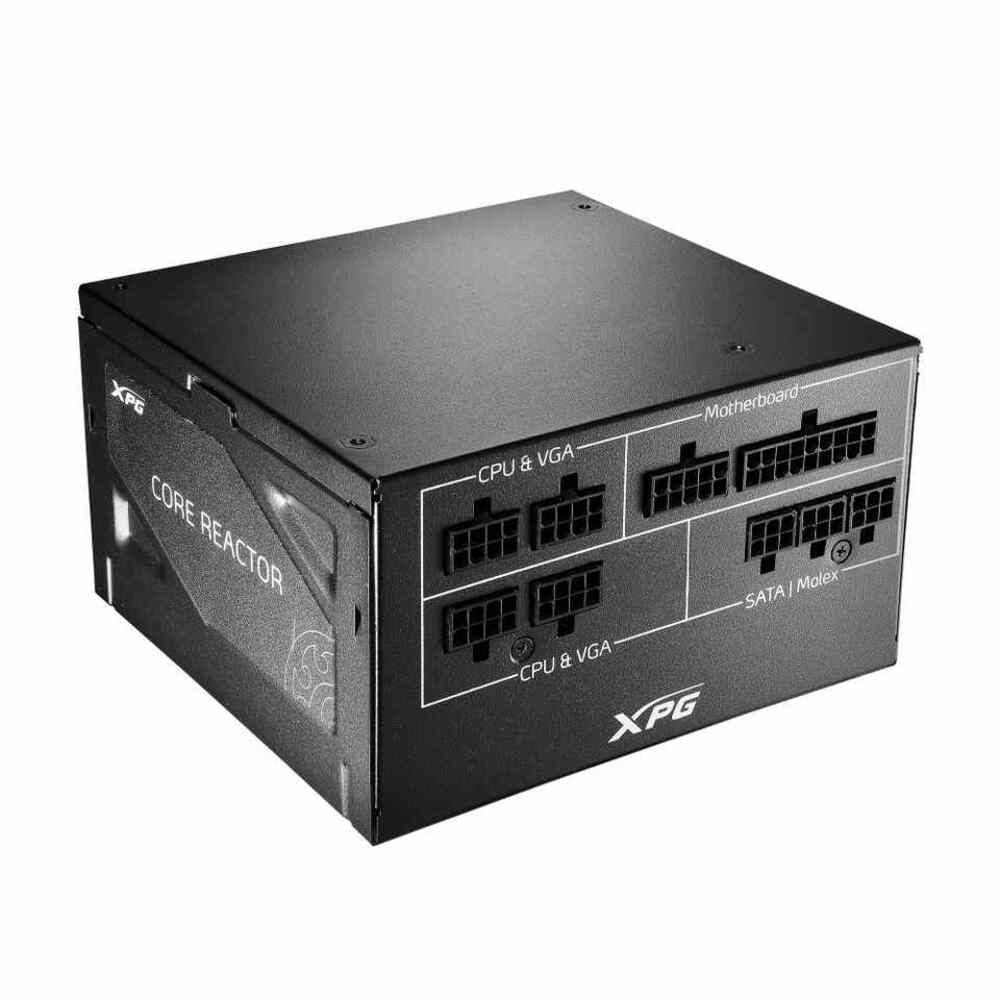

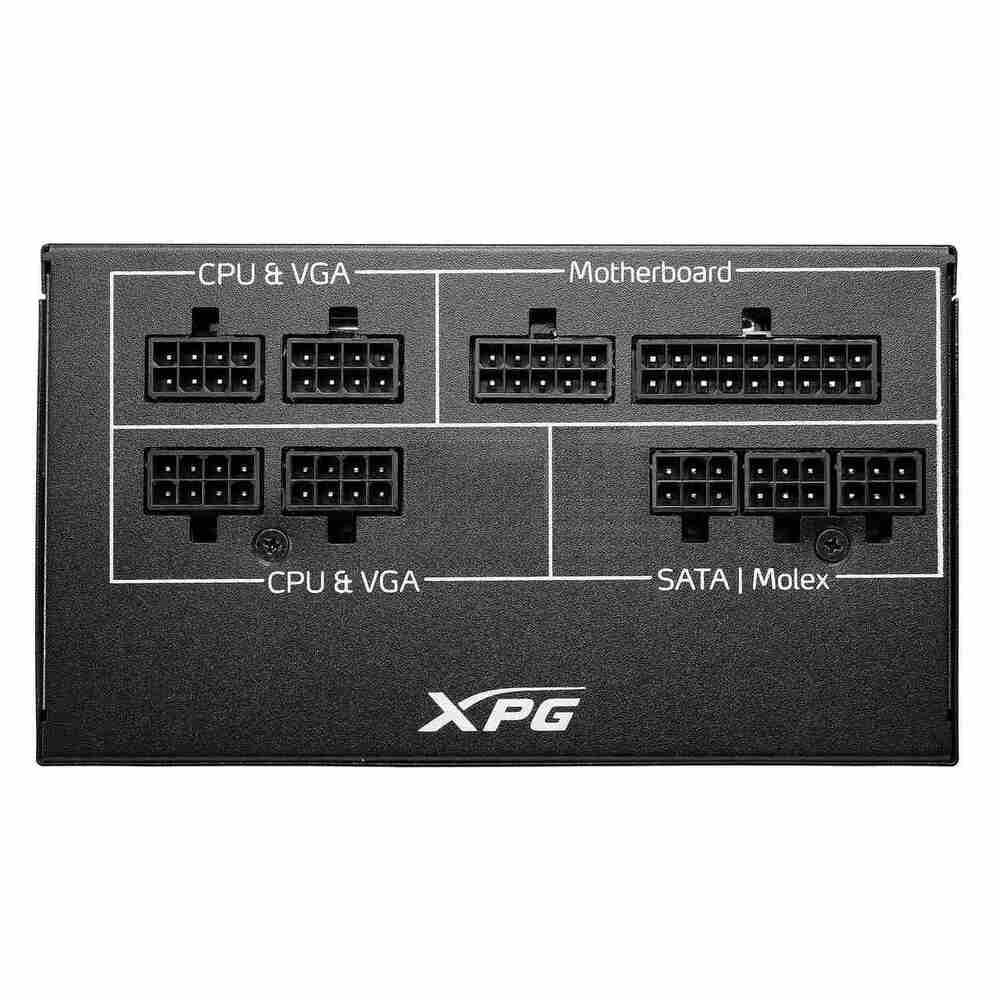

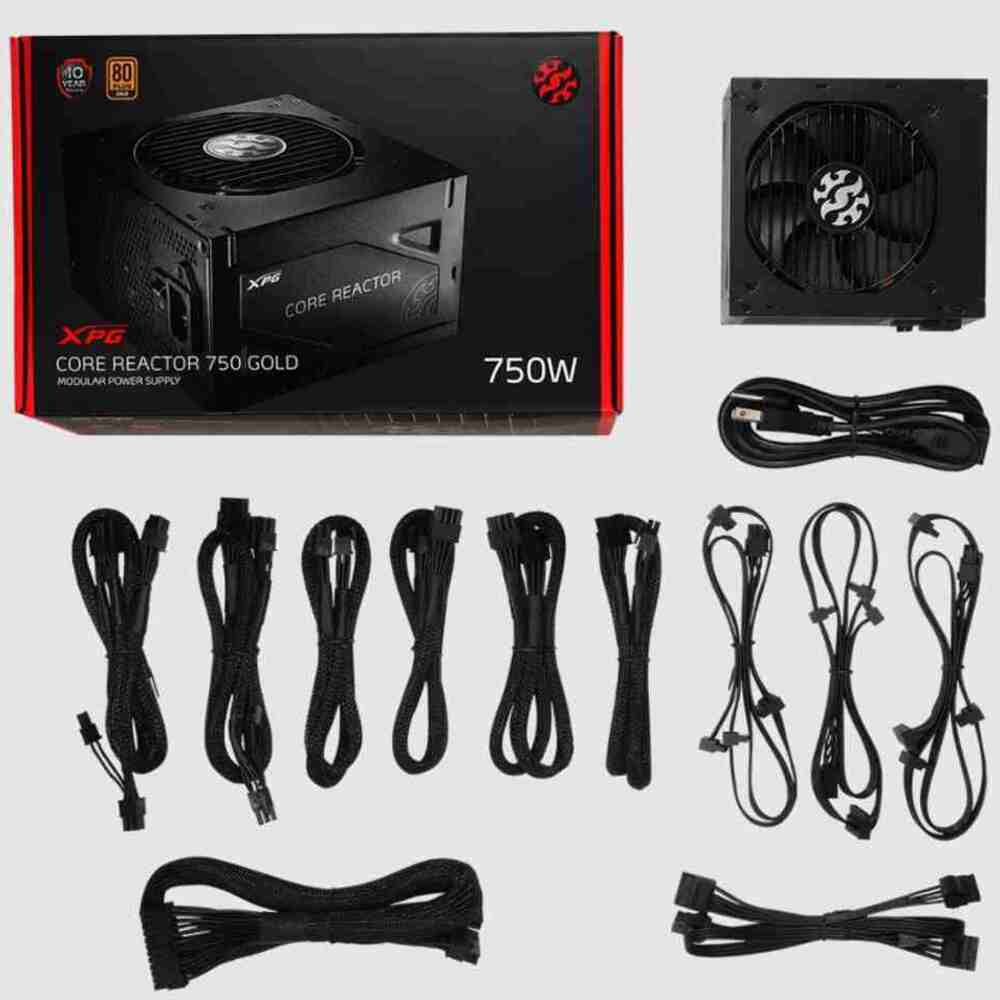

Compact and Modular
The XPG Core Reactor 750G is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What’s more, its modular design reduces cable clutter and simplifies system building.

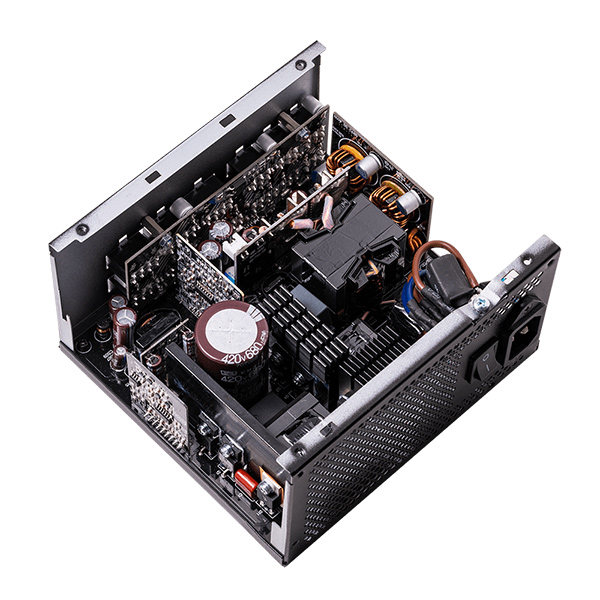

Premium Japanese Capacitators
Equipped with All 105°C Japanese capacitors, the XPG Core Reactor 750G provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.
Industrial-Grade Protection
The XPG Core Reactor 750G comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge & Inrush Protection (SIP)
Specifications :
Dimensions (L x W x H) | 140 x 150 x 86mm |
80 PLUS RATING | GOLD |
ATX Version | Intel ATX 12V v2.52 |
Protections | OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP |
Certification | CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / RCM / NOM / BSMI / KC |
PFC | 0.99 |
Input Voltage | 100V-240V |
Input Current | 10A-5A |
Input Frequency | 47Hz-63Hz |
Operating Temperature | 50°C |
Fan Size | 12cm |
Fan Bearing | FDB (Fluid Dynamic Bearing)* |
Fan Speed | 2400 |
MTBF | 100K hours at full load |
ATX 24 Pin Connector | 1 |
EPS 8 (4+4) Pin Connector | 750W : 2 |
PCI-E 6+2 Pin Connector | 750W : 4 |
SATA Connector | 12 |
Peripheral 4 Pin Connector | 4 |
Floppy 4 Pin Connector | - |
Weight | 750W: Product+cables:1.41kg+1.08kg (3.1lb+2.4lb) ±5% with Package:3.19kg (7.0lb) ±5% |
Warranty | 10 Years |
