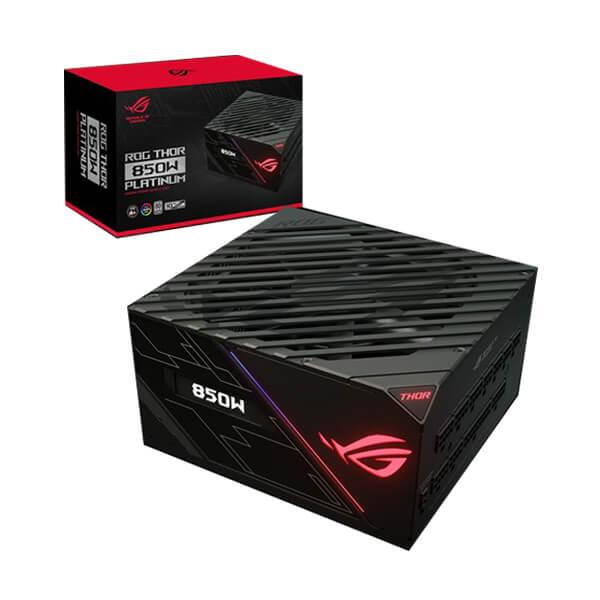

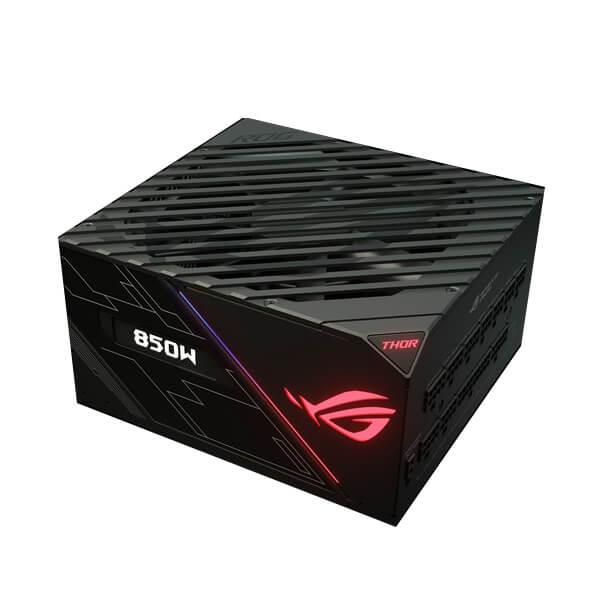

Asus ROG THOR 850P Power Supply:
- Aura Sync : Advanced customization with addressable RGB LEDs and Aura Sync compatibility
- OLED Power Display : Real-time power draw monitoring with OLED Power Display
- ROG Thermal Solution : 0dB cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design
- 80 PLUS Platinum : Built with 100% Japanese capacitors and other premium components
- Sleeved Cables : For easy building and superior aesthetics
Asus ROG THOR 850P Inside and out, our first PSU is packed with innovative ideas. Externally, Aura Sync RGB illumination and an integrated OLED information panel enable unique customization and monitoring options for your ROG gaming rig. Under the hood, high-quality capacitors, a 135mm Wing-blade fan, and large heatsinks allow the ROG Thor 850W to achieve LAMBDA A+ and 80 PLUS® Platinum certifications, making it ideal for PC enthusiasts who demand performance perfection.
Aura Sync Outshine the competition
Asus ROG THOR 850P ASUS Aura Sync is an illumination ecosystem that lets you synchronize lighting effects across your gaming rig, components, and peripherals. The ROG Thor lets you take full control with internal Aura RGB LEDs that connect to the 4-1 addressable RGB header on select motherboards.
OLED POWER DISPLAY
Asus ROG THOR 850P The ROG Thor 850W Platinum is the first PC PSU in the world to feature an integrated OLED panel, offering a real-time display of power draw. Now you can see at a glance how much juice your rig is using.

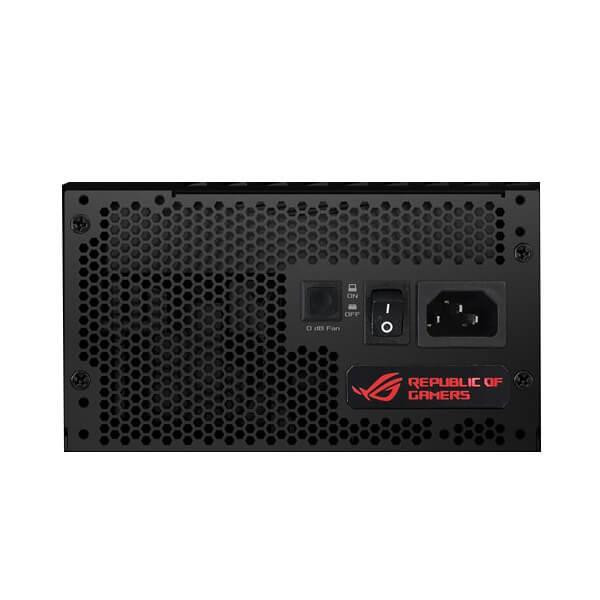

Asus ROG THOR 850P We’ve equipped the ROG Thor 850W Platinum with a 135mm patented Wing-blade fan to maximize component lifespan. IP5X dust-resistance keeps it spinning freely and 0dB technology utilizes thermal sensors to allow the fan to switch off completely at lower wattages — enabling totally silent operation.
Asus ROG THOR 850P The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the ROG Thor 850W Platinum. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise never exceeds 20dB, allowing ROG Thor to achieve LAMBDA A+ certification.
80 PLUS PLATINUM CERTIFICATION
Asus ROG THOR 850P The ROG Thor 850W Platinum utilizes top-end Japanese capacitors to ensure efficient operation. This has earned an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% at 50% load. The increased efficiency produces less heat, reducing fan noise and increasing reliability.
Asus ROG THOR 850P We know you’ll want to get building right away, so we’ve included high-quality sleeved and standard cables. The sleeved cables include one 24-pin, two 6+2-pin PCI-e cables and two 8-pin CPU cables. We’ve also included an RGB connector that plugs into the addressable RGB header on your ASUS motherboard.
Asus ROG THOR 850P We’re so confident about the reliability of the ROG Thor 850W Platinum that we back it with a 10-year* warranty.
|Dimensions||6.3 ” x 5.9 ” x 3.38 ” Inch|
16 x 15 x8.6 Centimeter
|AC Input Range||100-240Vac|
|DC Output Voltage||+3.3V +5V +12V -12V +5Vsb|
|Maximum Load||20A 20A 71A 0.3A 3A|

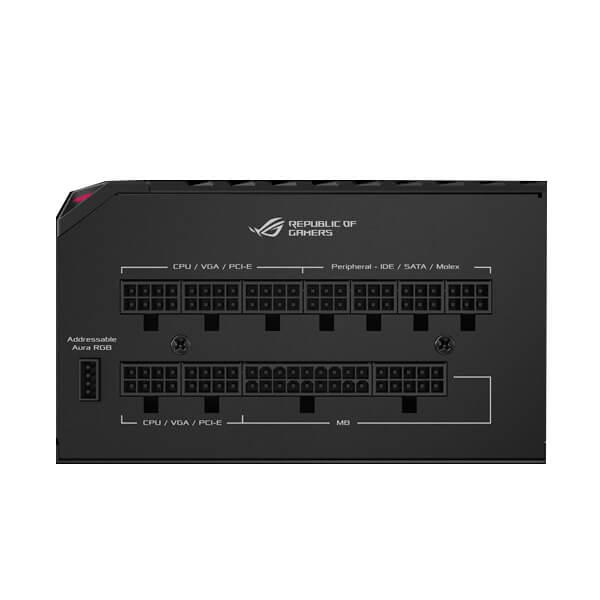

|Connectors||MB 24/20-pin x 1|
CPU 8/4-pin x 2
PCI-E 8/6-pin x 4
SATA x 12
Peripheral 4-pin x 5
Floppy x 1
|Package Contents||Power Cord x 1|
Motherboard Power Cable (24-pin) x 1 (610mm)
CPU Cable (4+4-pin) x 2 (650mm)
PCI-E Cable (6+2-pin) x 3 (675mm)
SATA Cable x 3 (760mm/570mm)
Peripheral x 2 (690mm/470mm)
SATA to Peripheral Cable x 1 (300mm)
Floppy Cable x 1 (101mm)
Addressable RGB Cables x 2 (950mm)
ROG Sticker x 1
ROG Cable Tie x 4
Sleeved Cable Combs (6-pin) x 2
Sleeved Cable Combs (8-pin) x 6
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 10
User Manual x 1
