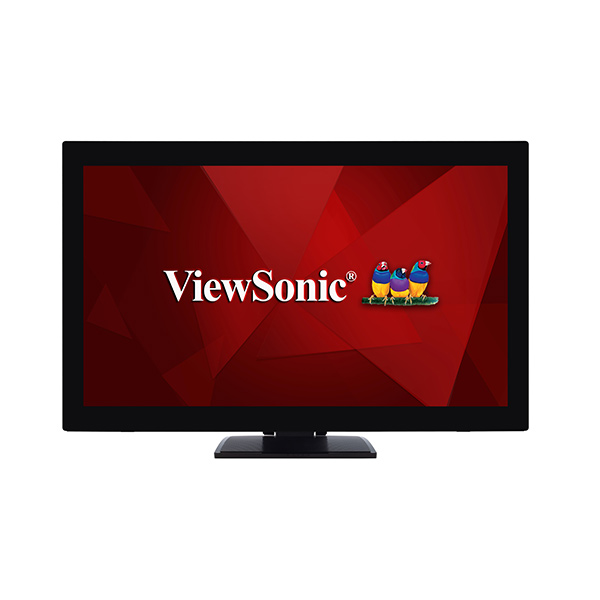

ViewSonic TD2760 27″ Touch Monitor, VA Panel FHD RS232 HDMI CEC
Features:
- SuperClear® technology
- Advanced ergonomic stand for tilt or flat
- HDMI, DisplayPort and VGA inputs
- 50M:1 dynamic contrast ratio
- Supports Windows® 7/8/10/11 and selected Linux, Chrome, and Android
Overview:
The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and 1080p Full HD resolution, the 27-inch ViewSonic TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10/11, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mounted display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. The ViewSonic TD2760’s ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission.
10-Point Multi-Touch
ViewSonic TD2760 comes with Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, and commercial use.
Clarity From Any Angle
Enjoy accurate and vivid colours with consistent levels of brightness no matter your vantage point. With SuperClear® VA panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

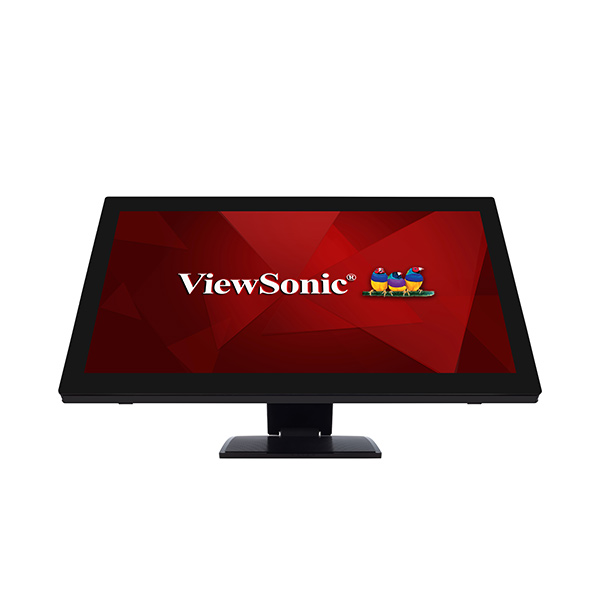

Advanced Ergonomic Stand for Optimal Touch Experience
A flexible ergonomic stand makes it easy to adjust this touch monitor for optimal comfort and viewing. Simply tilt, raise, and lower the monitor for the most natural position, or lay it completely flat to create a comfortable working environment.
Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Mega Dynamic Contrast Ratio
A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colours, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.
Cross-Platform Compatibility
Cross-platform compatibility with a wide range of operating systems including: Windows 7/8/10/11, Linux, Chrome, and Android*.
Control Multiple Devices
RS232 offers local control for set-top boxes, and other RS232 connected devices. The HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices directly through the display.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Low Power Consumption
ViewSonic TD2760 comes With Energy Star Certification, this monitor reduces environmental impact over its lifecycle, making it a great eco-friendly, long-term investment.
Enhanced Viewing Comfort
ViewSonic TD2760 have Flicker-Free Technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
VESA-Compatible Mount
Mount the monitor as you see fit using its convenient VESA-compatible mount design

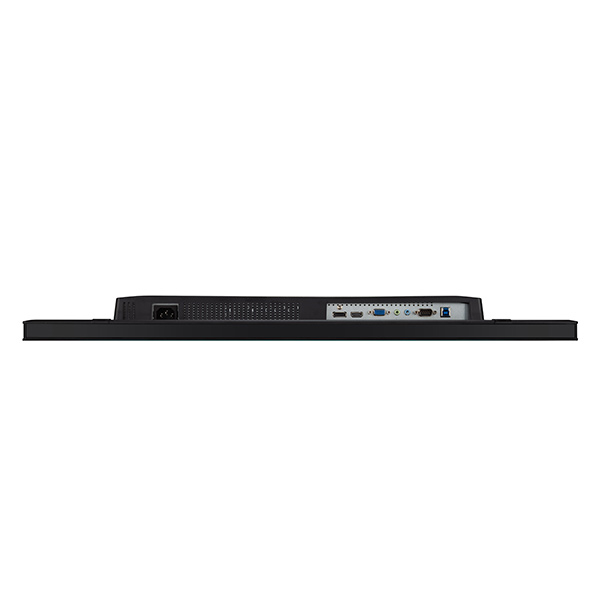

- Internal Speakers
- VESA Compatible(Wall Mount 100x100mm)
- AC In
- DisplayPort
- HDMI
- VGA
- USB Down Stream X 2
- USB Up Stream
- RS232
- Earphone
- Audio In
Specifications:
| DISPLAY | |
| Display Size (in.): | 27 |
| Viewable Area (in.): | 27 |
| Panel Type: | VA Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 3,000:1 (typ) |
| Dynamic Contrast Ratio: | 50M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m² (typ) |
| Colors: | 16.7M |
| Color Space Support: | 8 bit (6 bit + Hi-FRC) |
| Aspect Ratio: | 16:09 |
| Response Time (Typical GTG): | 6ms |
| Response Time (GTG w/OD): | 6ms |
| Response Time (Typical Tr+Tf): | 12ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 30000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 60 |
| Blue Light Filter: | Yes |
| Flicker-Free: | Yes |
| Color Gamut: | NTSC: 72% size (Typ) sRGB: 102% size (Typ) |
| Pixel Size: | 0.311 mm (H) x 0.311 mm (V) |
| Touch Screen: | Projected Capacitive, 10-point multi-touch |
| Surface Treatment: | Anti-Glare, Hard Coating (≧6H) |
| Cover Glass Thickness: | 1.88mm |
| COMPATIBILITY | |
| PC Resolution (max): | 1920×1080 |
| Mac® Resolution (max): | 1920×1080 |
| PC Operating System: | Windows 7/8/8.1/10/11 certified; macOS tested |
| Mac® Resolution (min): | 1920×1080 |
| CONNECTOR | |
| VGA: | 1 |
| USB 3.2 Type A Down Stream: | 2 |
| USB 3.2 Type B Up Stream: | 1 |
| 3.5mm Audio In: | 1 |
| 3.5mm Audio Out: | 1 |
| HDMI 1.4: | 1 |
| DisplayPort: | 1 |
| Power in: | 3-pin Socket (IEC C14 / CEE22) |
| RS232 In: | 1 |
| AUDIO | |
| Internal Speakers: | 2Watts x2 |
| POWER | |
| Eco Mode (Conserve): | 19W |
| Eco Mode (optimized): | 22W |
| Consumption (typical): | 26W |
| Consumption (max): | 28W |
| Voltage: | AC 100-240V |
| Stand-by: | 0.3W |
| Power Supply: | Internal Power Supply |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| CONTROLS | |
| Physical Controls: | 1, 2, Up, Down, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| OPERATING CONDITIONS | |
| Temperature: | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): | 20% to 90% |
| WALL MOUNT | |
| VESA Compatible: | 100 x 100 mm |
| INPUT SIGNAL | |
| Frequency Horizontal: | 15 ~ 90KHz |
| Frequency Vertical: | 50 ~ 76Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2) |
| Analog Sync: | Separate/Composite/SOG – RGB Analog |
| ERGONOMICS | |
| Tilt (Forward/Back): | -4º / 90º |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 17.4 |
| Net Without Stand (lbs): | 12.2 |
| Gross (lbs): | 22.6 |
| WEIGHT (METRIC) | |
| Net (kg): | 7.9 |
| Net Without Stand (kg): | 5.5 |
| Gross (kg): | 10.2 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 29.6 x 20.7 x 8 |
| Physical (in.): | 26 x 17.5 x 9.4 |
| Physical Without Stand (in.): | 26 x 16.2 x 2.3 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 753 x 525 x 204 |
| Physical (mm): | 660 x 443 x 239 |
| Physical Without Stand (mm): | 660 x 410 x 58 |
| GENERAL | |
| Regulations: | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BIS, CCC, China RoHS, China Energy Label, CECP |
| PACKAGE CONTENTS: | TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | *Warranty offered may differ from market to market |
| Power Management: | Energy Star standards, EPEAT |
