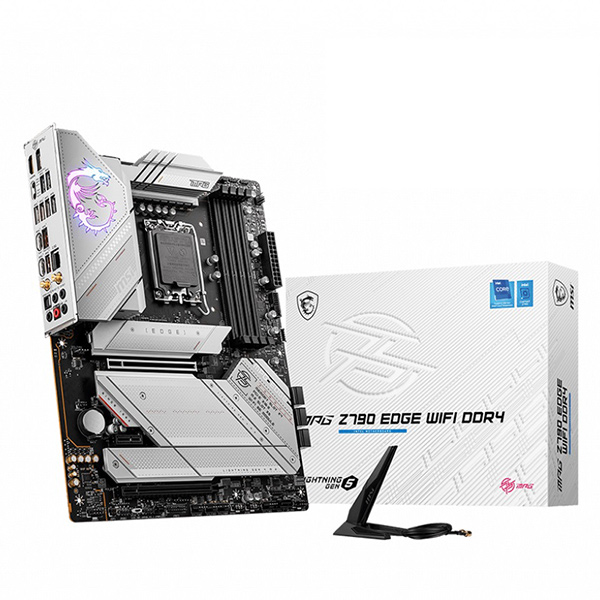

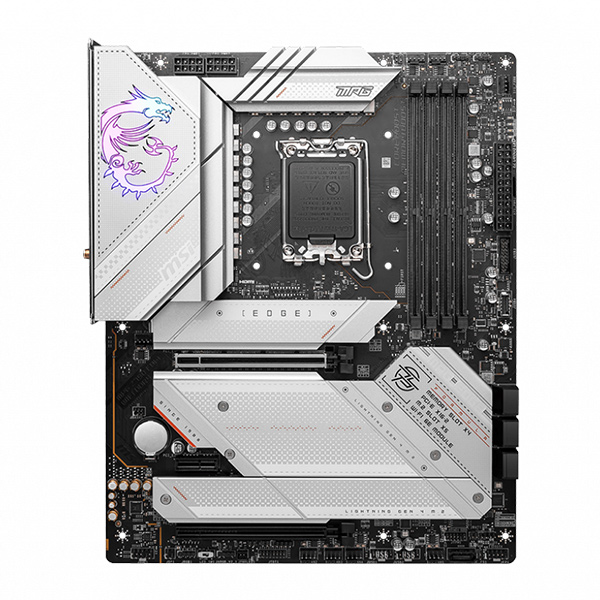

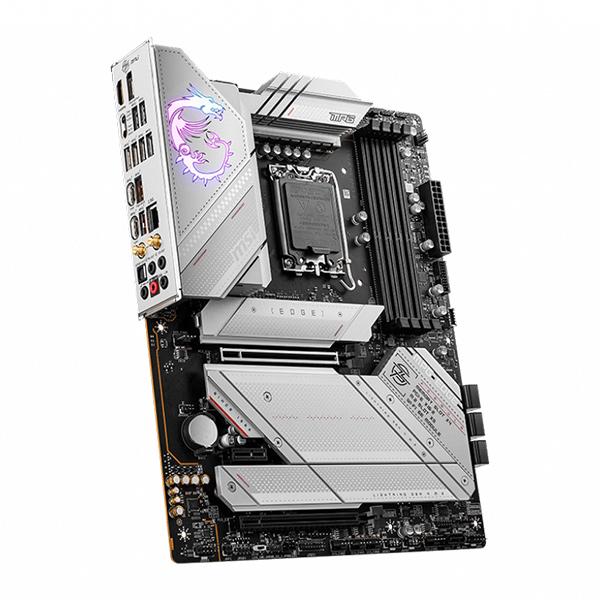

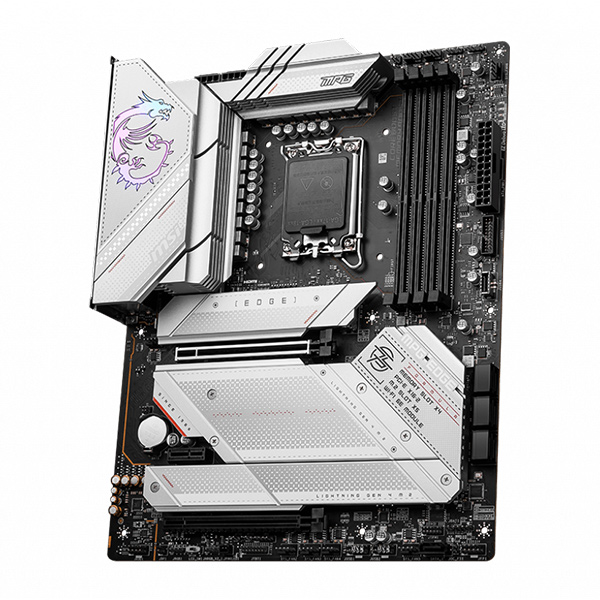

MSI MPG Z790 Edge WIFI DDR4 Motherboard
MSI MPG Z790 EDGE WIFI DDR4
- MSI MPG Z790 Edge WIFI DDR4 Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- MSI MPG Z790 Edge WIFI DDR4 Supports DDR4 Memory, up to 5333+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSDs safe while preventing throttling.
Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
FULLY FAN CONTROL
CONTROL IN ONE CLICK
MSI MPG Z790 Edge WIFI DDR4 let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI MPG Z790 Edge WIFI DDR4 fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
16+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z790 EDGE WIFI DDR4 is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
FAST AND FUTURE-READY STORAGE
MSI MPG Z790 Edge WIFI DDR4 series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.a
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MSI MPG Z790 Edge WIFI DDR4 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI MPG Z790 Edge WIFI DDR4 gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme oerclocking. The XMP memory profile has great improvement on performance and efficiency for Z790. Easy to enable XMP profile with auto power settings to get the best memory speed and stability
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI MPG Z790 Edge WIFI DDR4 provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
|CPU SUPPORT||Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors|
|MEMORY||4x DDR4, Maximum Memory Capacity 128GB|
|Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)|
|Max. overclocking frequency:|
|• 1DPC 1R Max speed up to 5333+ MHz|
|• 1DPC 2R Max speed up to 4800+ MHz|
|• 2DPC 1R Max speed up to 4400+ MHz|
|• 2DPC 2R Max speed up to 4000+ MHz|
|Supports Intel® XMP3.0 OC|
|Supports Dual-Controller Dual-Channel mode|
|Supports non-ECC, un-buffered memory|
|ONBOARD GRAPHICS||1x HDMI™|
|Support HDMI™ 2.1, maximum resolution of 4K 60Hz*|
|Support DP 1.4, maximum resolution of 8K 60Hz*|
|*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.|
|EXPANSION SLOT||2x PCI-E x16 slot|
|1x PCI-E x1 slot|
|PCI_E1 PCIe 5.0 supports up to x16 (From CPU)|
|PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)|
|PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)|
|STORAGE||5x M.2 slot|
|M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices|
|M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices|
|M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices|
|M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices|
|M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices|
|7x SATA 6G port|
|RAID||Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices|
|Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices|
|* SATA_A1~A2 do not support RAID function.|
|USB||4x USB 2.0 (Front)|
|4x USB 3.2 Gen1 Type A (Rear)|
|2x USB 3.2 Gen1 Type A (Front)|
|4x USB 3.2 Gen2 Type A (Rear)|
|1x USB 3.2 Gen2 Type C (Rear)|
|1x USB 3.2 Gen2 Type C (Front)|
|1x USB 3.2 Gen2x2 Type C (Rear)|
|LAN||Intel® 2.5Gbps LAN|
|WIRELESS / BLUETOOTH||Intel® Wi-Fi 6E|
|The Wireless module is pre-installed in the M.2 (Key-E) slot|
|Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps|
|Supports 802.11 a/ b/ g/ n/ ac/ ax|
|Supports Bluetooth® 5.3, FIPS, FISMA|
|* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.”|
|AUDIO||Realtek® ALC4080 Codec|
|7.1-Channel USB High Performance Audio|
|Supports up to 32-Bit/384 kHz playback on front panel|
|INTERNAL I/O||1x Power Connector(ATX_PWR)|
|2x Power Connector(CPU_PWR)|
|1x CPU Fan|
|1x Pump Fan|
|6x System Fan|
|2x Front Panel (JFP)|
|1x Chassis Intrusion (JCI)|
|1x Front Audio (JAUD)|
|1x TBT connector (JTBT, supports RTD3)|
|1x Tuning Controller connector(JDASH)|
|3x Addressable V2 RGB LED connector (JARGB_V2)|
|1x RGB LED connector(JRGB)|
|1x TPM pin header(Support TPM 2.0)|
|4x USB 2.0|
|2x USB 3.2 Gen1 Type A|
|1x USB 3.2 Gen2 Type C|
|LED FEATURE||4x EZ Debug LED|
|1x EZ LED Control switch|

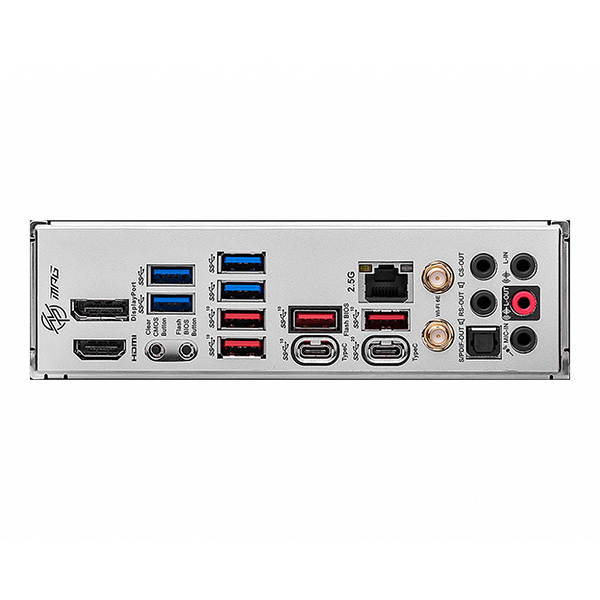

|BACK PANEL PORTS||Display Port|
|USB 3.2 Gen 1 5 Gbps (Type-A)|
|USB 3.2 Gen 2 10Gbps (Type-A)|
|Wi-Fi / Bluetooth|
|Clear CMOS / Flash BIOS|
|USB 3.2 Gen 2 10Gbps (Type-A)|
|USB 3.2 Gen 2 10Gbps (Type-C)|
|USB 3.2 Gen 2×2 20Gbps (Type-C)|
|Optical S/PDIF Out|
|OPERATING SYSTEM||Support for Windows® 11 64-bit, Windows® 10 64-bit|
