MSI MAG B860 Tomahawk WiFi DDR5 Intel LGA 1851 ATX WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI MAG B860 Tomahawk WiFi ATX Motherboard is built for gamers and performance enthusiasts, offering Intel B860 chipset, LGA 1851 socket, DDR5 support, and PCIe 5.0 for high-speed performance. MSI MAG B860 Tomahawk WiFi With Wi-Fi 7, 2.5G LAN, USB 20Gbps, and robust cooling solutions, it ensures smooth and stable operation for modern gaming and productivity needs.
Key Features :
Intel B860 Chipset – Optimized for Intel Core Ultra (Series 2) processors.
LGA 1851 Socket – Supports latest-gen Intel CPUs.
DDR5 Memory Support – Up to 192GB, 7600+ MT/s (OC) for high-speed multitasking.
PCIe 5.0 x16 Slot – Future-proofed for next-gen GPUs.
Wi-Fi 7 & 2.5G LAN – Ultra-fast wireless & wired networking.
M.2 Storage Support – 3x M.2 slots (PCIe 5.0/4.0) for high-speed SSDs.
USB 20Gbps Type-C – Lightning-fast data transfers.
Enhanced Power Design – 12+1+1 phase VRM for stable power delivery.
Robust Cooling – Extended heatsinks, M.2 Shield Frozr & multiple fan headers.
Specifications :
| Chipset | Intel B860 |
| CPU Support | Intel® Core Ultra (Series 2) Processors |
| Socket | LGA 1851 |
| Memory | 4x DDR5 DIMM, Up to 192GB |
| Memory Speed | Up to 7600+ MT/s (OC), Dual-Channel |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x1 |
| Storage | 3x M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) 4x SATA 6Gb/s |
| Onboard Graphics | 1x HDMI 2.1, 1x DisplayPort 1.4 (Requires supported CPU) |
| Networking | Intel Wi-Fi 7, 2.5G LAN |

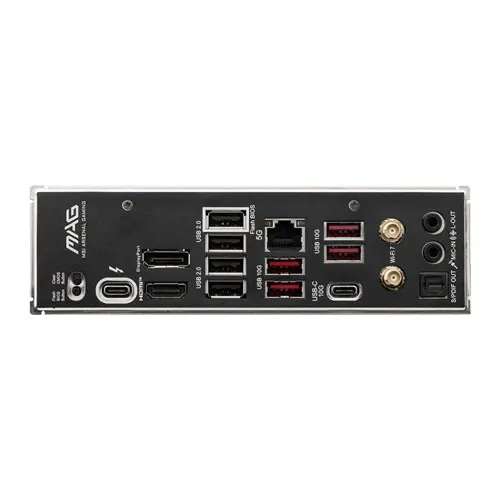

| USB Ports | Rear: 1x USB 20Gbps Type-C, 2x USB 10Gbps, 3x USB 5Gbps, 2x USB 2.0 Front: 1x USB 10Gbps Type-C, 2x USB 5Gbps, 2x USB 2.0 |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Cooling | Extended Heatsinks, M.2 Shield Frozr, 6x Fan Headers |
| Form Factor | ATX (305mm x 244mm) |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
