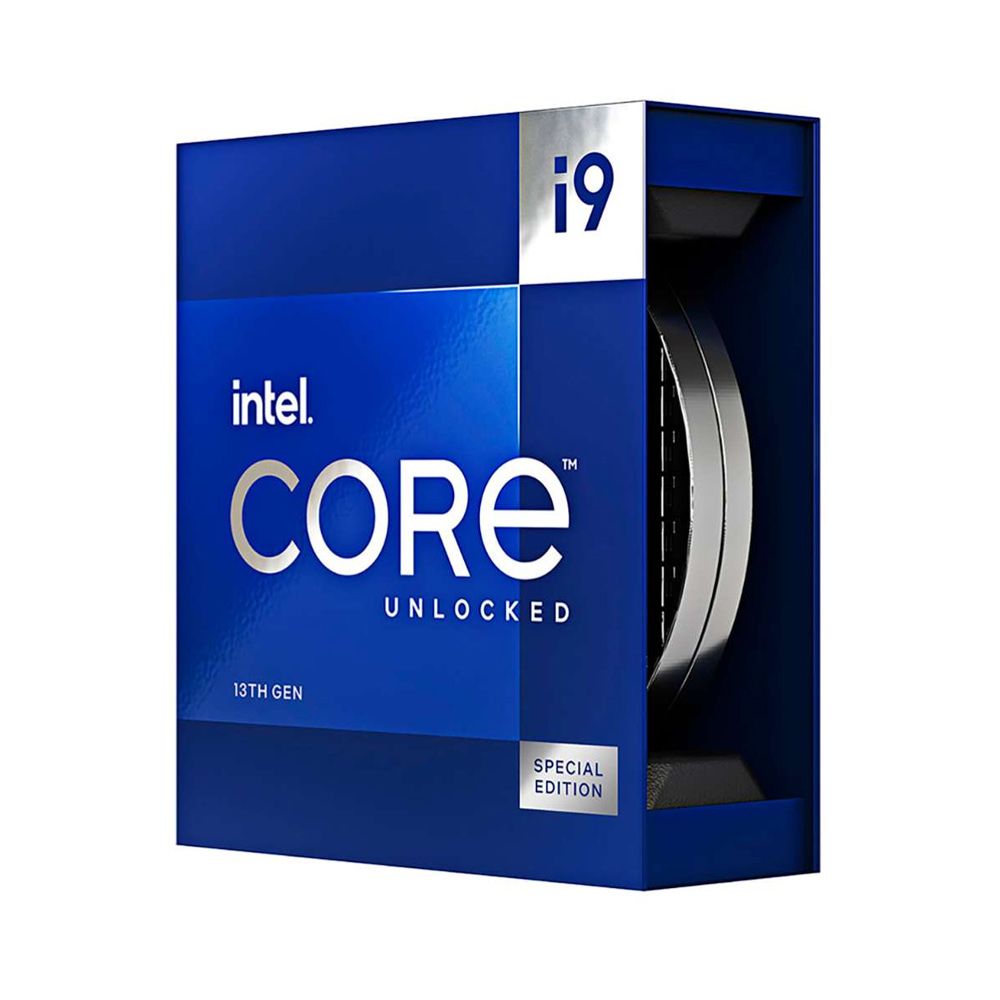

Intel Core i9 13900KS Processor :
Features :
Performance-core (P-core) | The highest-performing CPU core ever built by Intel, designed to handle single-threaded, lightly threaded, or burst workloads like 4K gaming and 3D design. |
Efficient-core (E-core) | Designed to handle multi-threaded and background tasks such as minimized browser tabs, IT services, and cloud syncing, leaving P-cores free to deliver incredible performance without interruption. |
Performance Hybrid Architecture1 | Integrates two core microarchitectures into a single die, prioritizing and distributing workloads to optimize performance. |
Intel® Thread Director1 13 | Optimizes workloads by helping the OS scheduler intelligently distribute workloads to the optimal cores. |
PCIe 5.02 up to 16 Lanes | Offers readiness for up to 32 GT/s for fast access to discrete graphics, storage, and peripheral devices with up to 16 PCI Express 5.0 lanes. |
PCIe 4.0 up to 4 Lanes | Offers up to 16 GT/s for fast access to storage and peripheral devices with up to 4 PCI Express 4.0 lanes. |
Up to DDR5 5600 MT/s3 | Delivers the latest, industry-leading innovation in memory capabilities for fast speeds, high bandwidth, and enhanced workflow productivity. |
Up to DDR4 3200 MT/s | Continued support of existing memory technology and speeds. |
L3 and L2 Cache | Increased shared Intel® Smart Cache (L3) and L2 cache sizes allow users to work faster, with larger datasets. |
Intel® Deep Learning Boost | Accelerates AI inference to improve performance for deep learning workloads. |
Gaussian & Neural Accelerator 3.0 (GNA 3.0) | Processes AI speech and audio applications such as neural noise cancellation while simultaneously freeing up CPU resources for overall system performance and responsiveness. |
Intel® Adaptive Boost Technology | Intel® ABT improves performance by opportunistically allowing higher multi-core turbo frequencies, while operating within system power and temperature specifications when current, power, and thermal headroom exists. |
Intel® Thermal Velocity Boost | Intel® Thermal Velocity Boost opportunistically and automatically increases clock frequency of select 13th Gen Intel® Core™ Desktop processors by up to 100 MHz if the processor is at a temperature of 70°C or lower and turbo power budget is available. |
Intel® Turbo Boost Max Technology 3.05 | Identifies the processor’s fastest cores and directs critical workloads to them. |
Intel® UHD Graphics driven by Xe Architecture8 | Rich media and intelligent graphics capabilities enable amplified visual complexity, enhanced 3D performance, and faster image processing. |
Overclocking6 Features and Capabilities | When paired with the Intel® Z790 or Z690 chipset, processor P-cores, E-cores, graphics, and memory can be set to run at frequencies above the processor specification resulting in higher performance. |
Intel® Extreme Tuning Utility7 | A precision toolset for tuning and overclocking, featuring memory and hybrid processor overclocking, so that new and experienced users can get more from their unlocked processors.6 |
Intel® Extreme Memory Profile 3.0 | Simplifies the memory overclocking experience with increased flexibility, additional profiles, and expanded voltage controls. |
Intel® Dynamic Memory Boost1 | Intelligent memory overclocking performance on-demand that optimizes platform performance based on usage. |
Overview :
Advancing Performance Hybrid Architecture
Intel Core i9 13900KS 13th Gen processors advances performance hybrid architecture with up to eight Performance-cores (P-core) and up to 16 Efficient-cores (E-core), combined with workloads intelligently routed by Intel® Thread Director2.
Built for Modern Gaming
Built for gamers looking for maximum performance to play the latest games, while also having the capabilities to tackle other workloads. New Intel Core i9 13900KS 13th Gen processor-based PCs make it all possible.
Superior Creating Experience
The Intel Core i9 13900KS 13th Gen processor offers faster P-cores and more E-cores with support for DDR4/DDR5 and PCIe 4.0/5.0. That provides a platform that can max out multitasking and choice for configurability.
Customize for What You Do Every Day
Intel Core i9 13900KS 13th Gen processor deliver highly flexible architecture and industry-leading tools for the ultimate in performance customization.
Level Up Your Game and Then Some
Intel Core i9 13900KS Built for modern gaming, streaming, and recording, Intel’s performance hybrid architecture with up to eight Performance-cores and up to 16 Efficient-core1 makes it all possible.
Multitask with Ease
Superior performance, no matter what type of creator you are, lets you stream, browse, edit, video chat, and just take care of business. Buckle up because multitasking won’t slow you down with the Intel Core i5 13600K processor.
Industry Leading Overclocking
A great overclocking experience for enthusiasts of all levels – from beginners to experts. The Intel® Extreme Tuning Utility, paired with an unlocked Intel Core processor, makes the overclocking process easy.
Specifications :
Essentials | |
Product Collection | 13th Generation Intel® Core™ i9 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i9-13900KS |
Marketing Status | Launched |
Launch Date | Q1’23 |
Lithography | Intel 7 |
Recommended Customer Price | – |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 24 |
# of Performance-cores | 8 |
# of Efficient-cores | 16 |
Total Threads | 32 |
Max Turbo Frequency | 6.00 GHz |
Intel® Thermal Velocity Boost Frequency | 6.00 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.80 GHz |
Performance-core Max Turbo Frequency | 5.40 GHz |
Efficient-core Max Turbo Frequency | 4.30 GHz |
Performance-core Base Frequency | 3.20 GHz |
Efficient-core Base Frequency | 2.40 GHz |
Cache | 36 MB Intel® Smart Cache |
Total L2 Cache | 32 MB |
Processor Base Power | 150 W |
Maximum Turbo Power | 253 W |
Supplemental Information | |
Embedded Options Available | No |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 89.6 GB/s |
ECC Memory Supported ‡ | Yes |
Processor Graphics | |
Processor Graphics ‡ | Intel® UHD Graphics 770 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.65 GHz |
Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0xA780 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
TJUNCTION | 100°C |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Thermal Velocity Boost | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
Intel® Turbo Boost Technology ‡ | 2 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Trusted Execution Technology ‡ | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Stable IT Platform Program (SIPP) | Yes |
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
