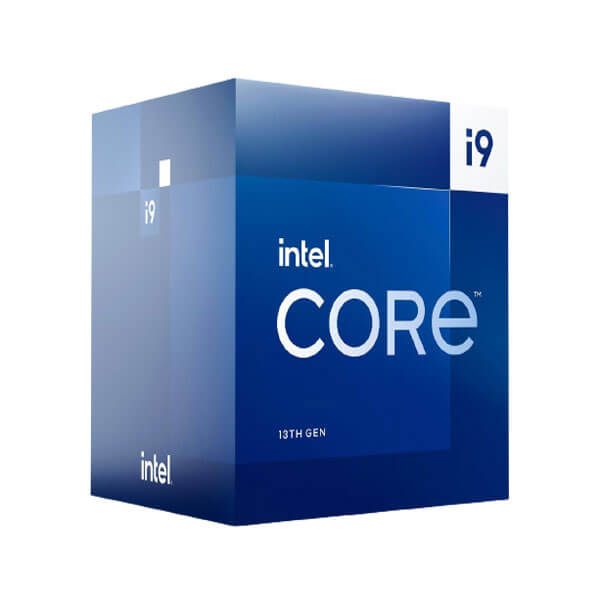

Intel Core i9-13900 13th Generation Desktop Processor – 24 Cores (8P+16E) / 32 Threads
Overview:
Power up your productivity, gaming, and content creation with the Intel Core i9-13900 2 GHz 24-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 24 cores— eight more than the previous generation— onto a single processor while still supporting the LGA 1700 socket. Designed to provide exceptional performance, the Intel Core i9-13900 features 16 low-voltage Efficient-cores that handle background tasks for multitasking while the eight 2 GHz Performance-cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
Intel Core i9-13900 With 32MB of cache and a 5.5 GHz Turbo Boost Max 3.0 frequency that can be pushed higher with Thermal Velocity Boost and Adaptive Boost technologies, this processor is made to handle almost any workload. The Core i9-13900 also supports PCI Express 5.0 and dual-channel DDR5 ECC memory at 5600 MHz.
The Intel Core i9-13900 features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included. This processor is backed by a 3-year warranty.
Specifications:
| Essentials | |
| Product Collection | 13th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i9-13900 |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 24 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 16 |
| Total Threads | 32 |
| Max Turbo Frequency | 5.60 GHz |
| Intel® Thermal Velocity Boost Frequency | 5.60 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.50 GHz |
| Performance-core Max Turbo Frequency | 5.20 GHz |
| Efficient-core Max Turbo Frequency | 4.20 GHz |
| Performance-core Base Frequency | 2.00 GHz |
| Efficient-core Base Frequency | 1.50 GHz |
| Cache | 36 MB Intel® Smart Cache |
| Total L2 Cache | 32 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 219 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Max Dynamic Frequency | 1.65 GHz |
| Graphics Base Frequency | 300 MHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
