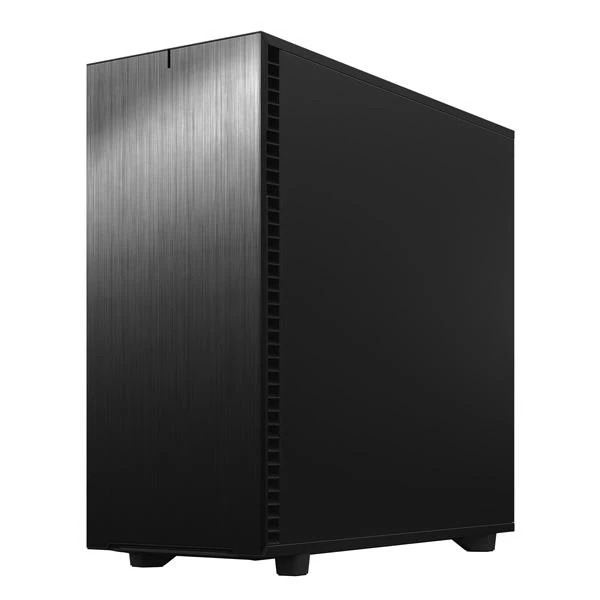

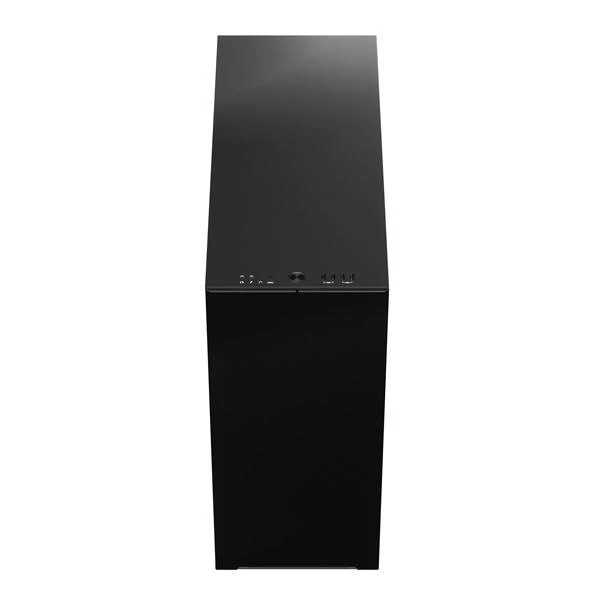

Fractal Design Define 7 XL Black Solid Full Tower Cabinet
Overview :
The Fractal Design Define 7 XL Black Solid sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

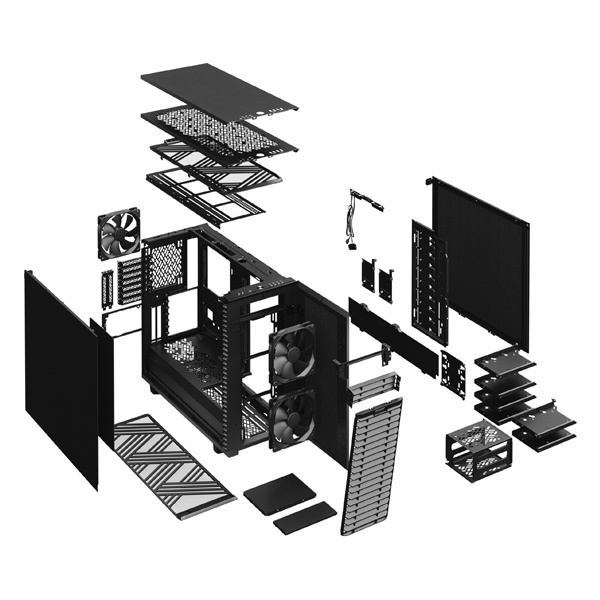

- New chassis design opens up to fully expose the case interior

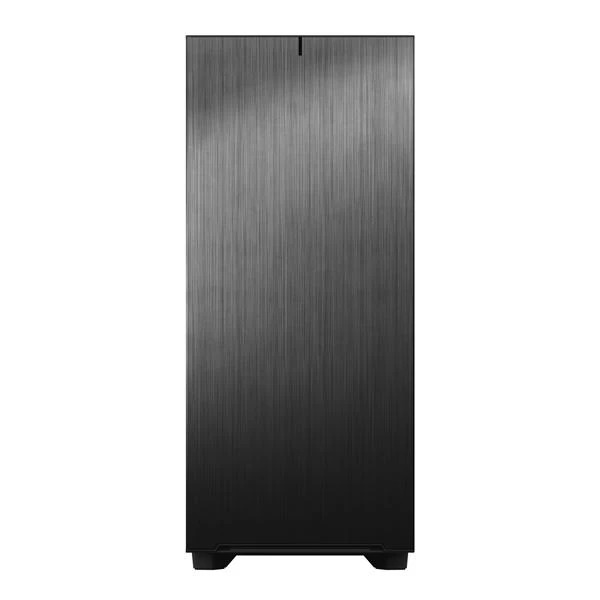

- Anodized aluminum front panel with reversible dual-handed hinges
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout
Plenty of room for massive builds
- Use the Fractal Design Define 7 XL Black Solid’s Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base

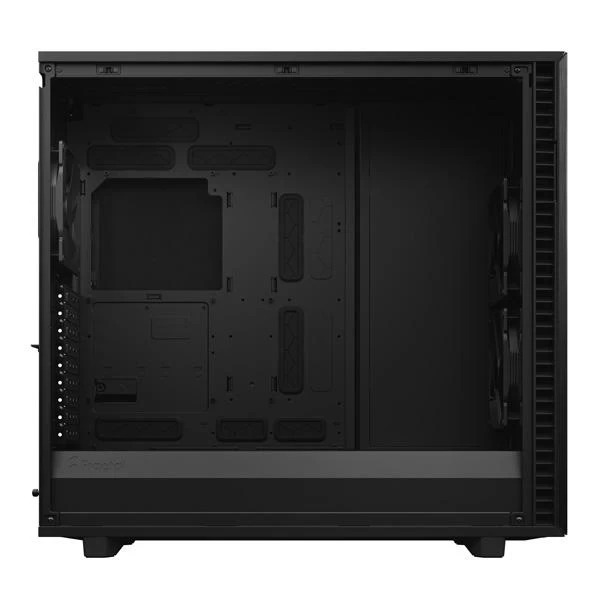

- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)

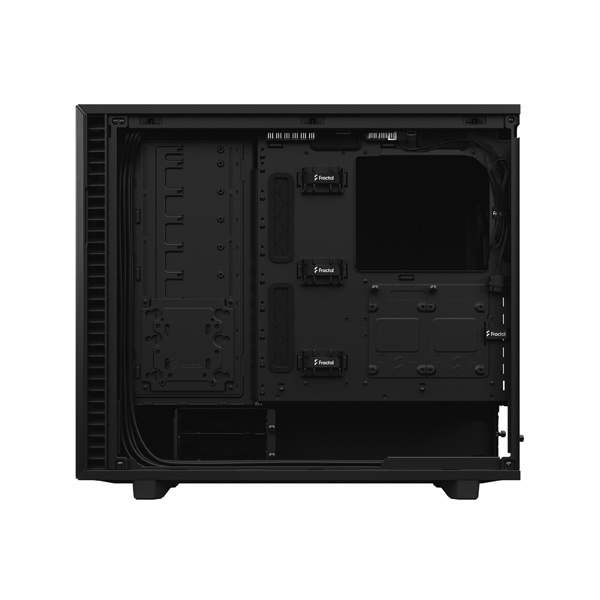

- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes in Fractal Design Define 7 XL Black Solid with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling
- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans in Fractal Design Define 7 XL Black Solid
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering
Exceptionally silent
Fractal Design Define 7 XL Black Solid has Silence-optimized construction with industrial sound-damped front, top, and side panels
USB Type-C – USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
SSI-EEB – Easily holds your SSI-EEB motherboard
Moduvent – Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
Versatile new Multibracket
The included Multibrackets in Fractal Design Define 7 XL Black Solid lets you convert any unused fan position to an HDD, SSD or pump mount.
Specifications :
| Product Code | FD-C-DEF7X-01 |
| 3.5″/2.5″ Universal drive brackets | 6 + 2 included, 18 positions total |
| Dedicated 2.5″ drive brackets | 2 included, 5 positions total |
| 5.25” drive mounts | 2 |
| Expansion slots | 9 + 3 |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 11 x 120 mm or 9 x 140 mm |
| Front fan | 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) |
| Top fan | 4 x 120 mm or 3 x 140 mm |
| Rear fan | 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Top, 2 x Front, Bottom + PSU |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |

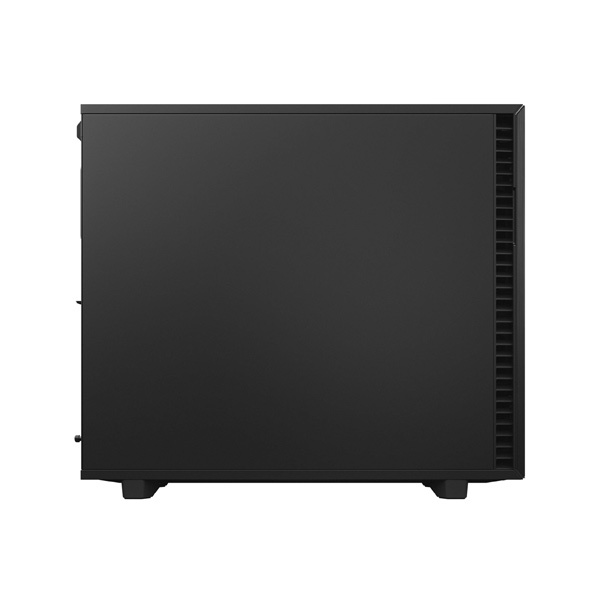

| Left side panel | Industrial sound-damped steel |
| Right side panel | Industrial sound-damped steel |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB |
| PSU max length | 250 mm (both HDD cages installed) |
| GPU max length | Storage layout: 359 mm – Open layout: 549 mm (524 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 480/420 mm |
| Top radiator | Up to 480/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Vertical GPU Support (with Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Dimensions | |
| Case dimensions (LxWxH) | 604 x 240 x 566 mm |
| Case dimensions w feet/protrusions/screws | 604 x 240 x 566 mm |
| Net weight | 16.64 kg |
| Package dimensions (LxWxH) | 646 x 357 x 708 mm |
| Package weight | 18.84 kg |
| Volume | 77.6 liters |
| Warranty | 2 Years |
