Deepcool PN750M 750 Watt ATX 3.1 80 Plus Gold Power Supply :
Overview

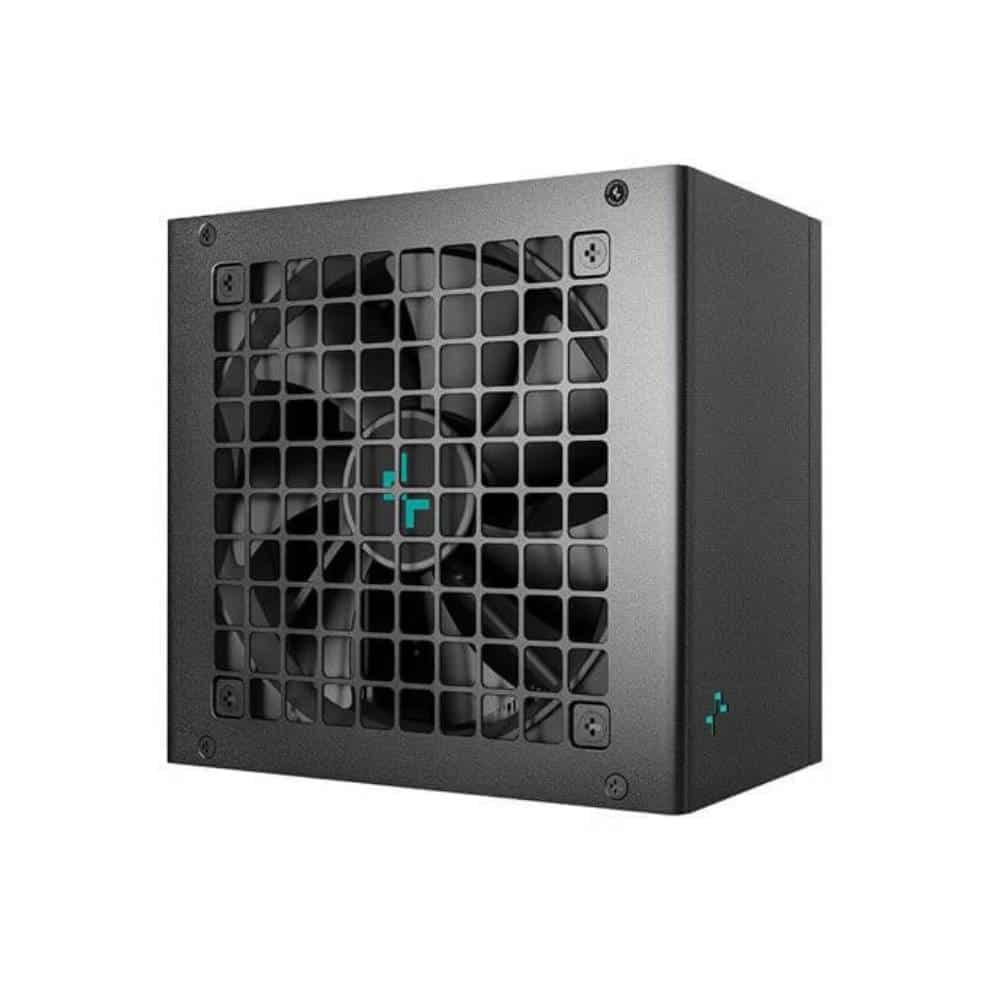

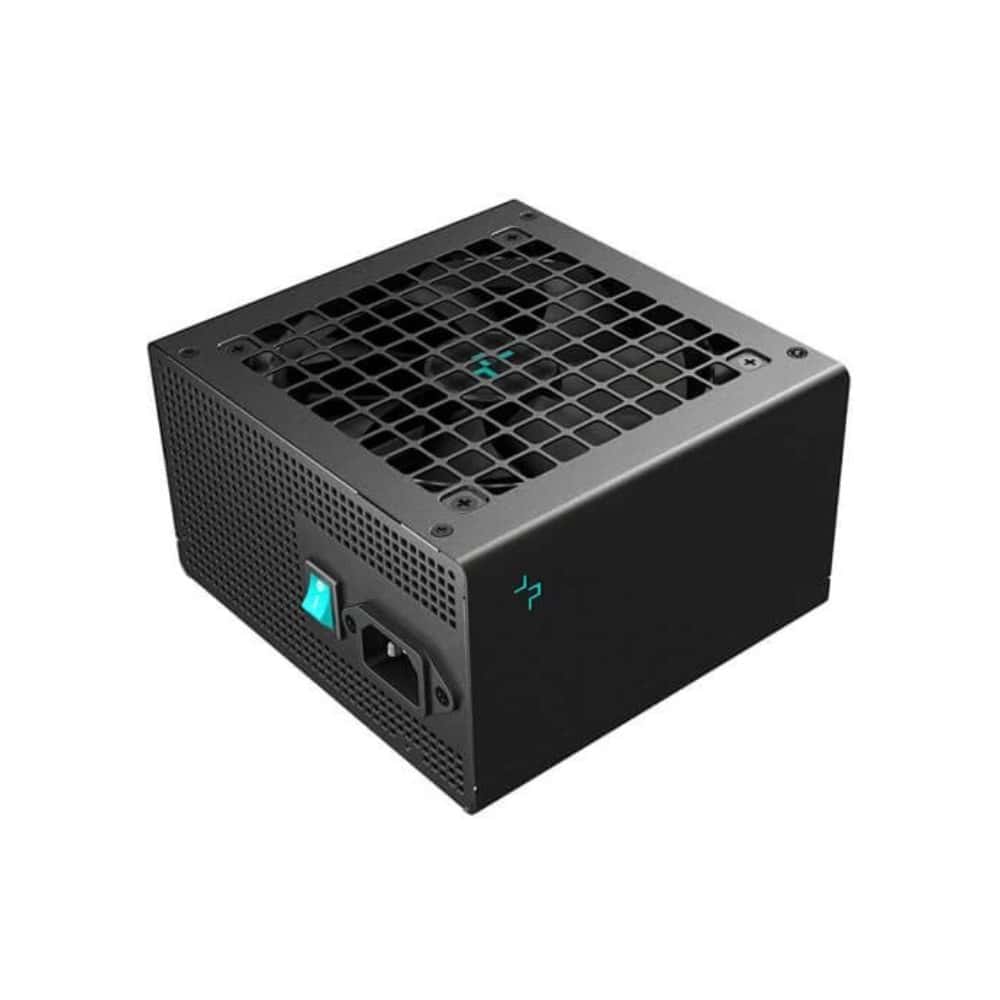

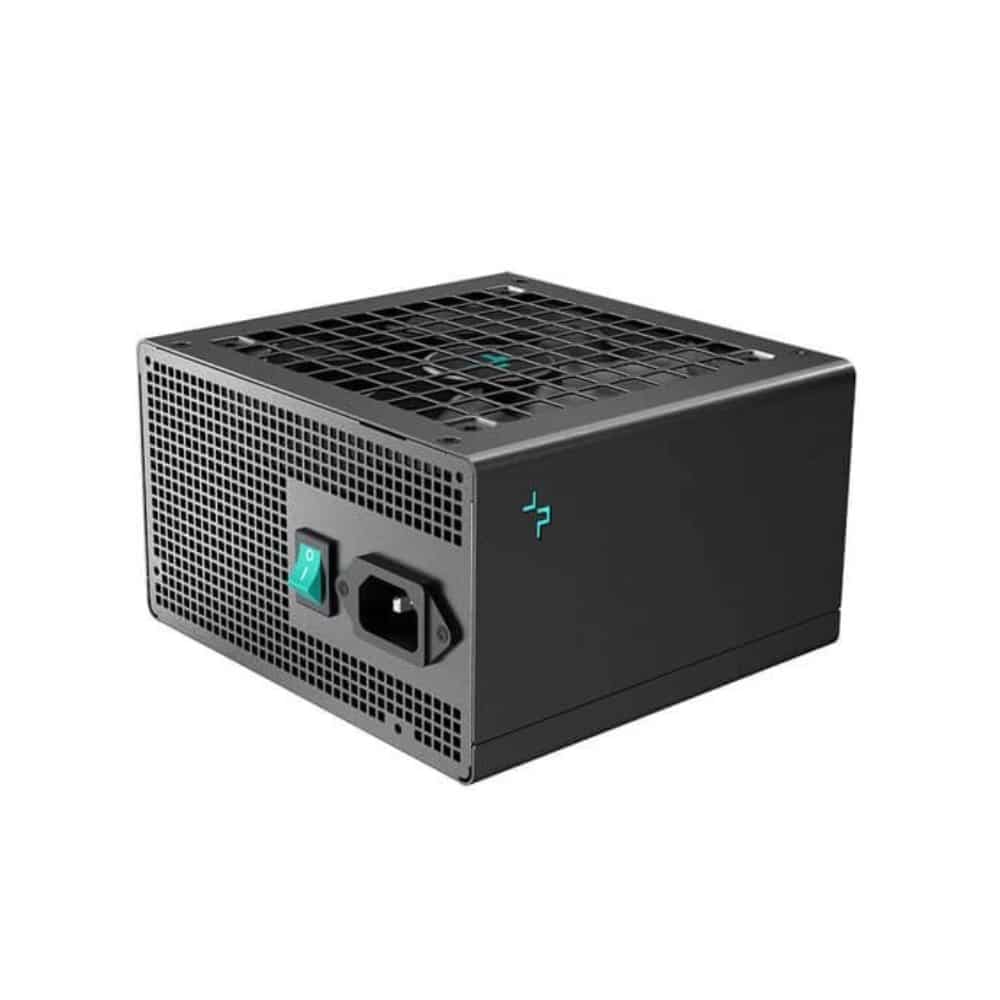

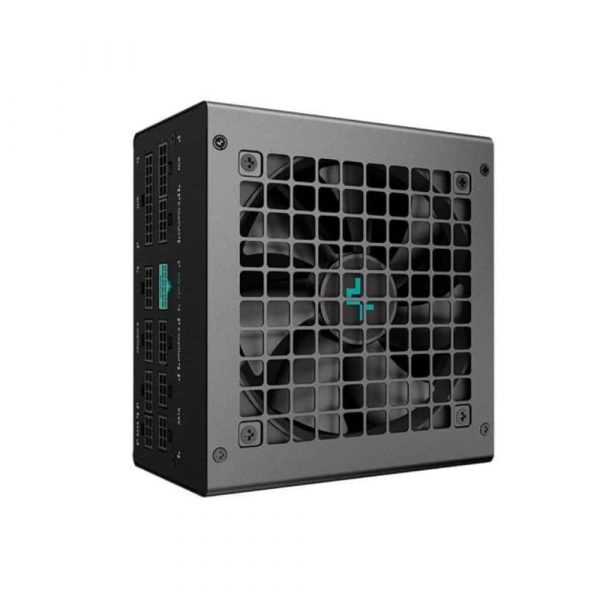

The Deepcool PN750M 750W Fully Modular Power Supply delivers next-generation performance with outstanding power efficiency and future-ready connectivity. Compliant with Intel ATX 3.1 and PCIe 5.0 standards, it ensures stable and clean power delivery to high-performance components. Deepcool PN750M 750 Watt ATX 3.1 80 Plus Gold Power Supply Certified with 80 Plus Gold, and designed with a fully modular cable system, this PSU makes cable management easier while enhancing airflow, reliability, and aesthetics in custom builds.
Key Features:
ATX 3.1 & PCIe 5.0 Compliant
Supports GPU power excursion limits with native 12VHPWR (16-pin) connector for RTX 40 series cards.Fully Modular Design

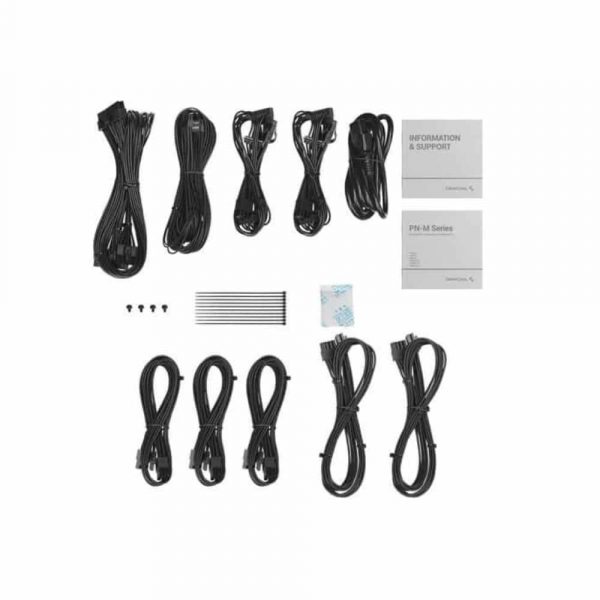

Connect only the cables you need for a cleaner, more efficient build and improved airflow.750W Continuous Power Output
Ideal for gaming rigs and workstation setups with high-end GPUs and multi-core CPUs.80 Plus Gold Certified Efficiency
Achieves up to 90% energy efficiency, reducing heat output and power consumption.Silent 120mm FDB Fan
Offers quiet operation and optimized cooling with a fluid dynamic bearing design.High-Performance Internal Design

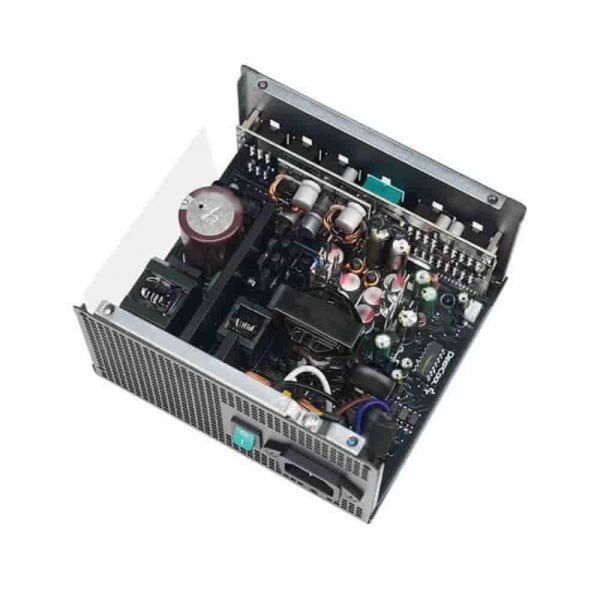

Utilizes DC-to-DC conversion, LLC topology, and active PFC for stable voltage delivery.Comprehensive Protection Suite
Includes Over Voltage, Under Voltage, Over Current, Over Power, Short Circuit, and Over Temperature protections.High-Quality Components
Built with 105°C Japanese capacitors for long-term reliability and performance.5-Year Warranty
Backed by DeepCool’s trusted quality assurance for peace of mind.
Specification Table:
| Specification | Details |
|---|---|
| Model Name | DeepCool PN750M (Fully Modular) |
| Form Factor | ATX 3.1 |

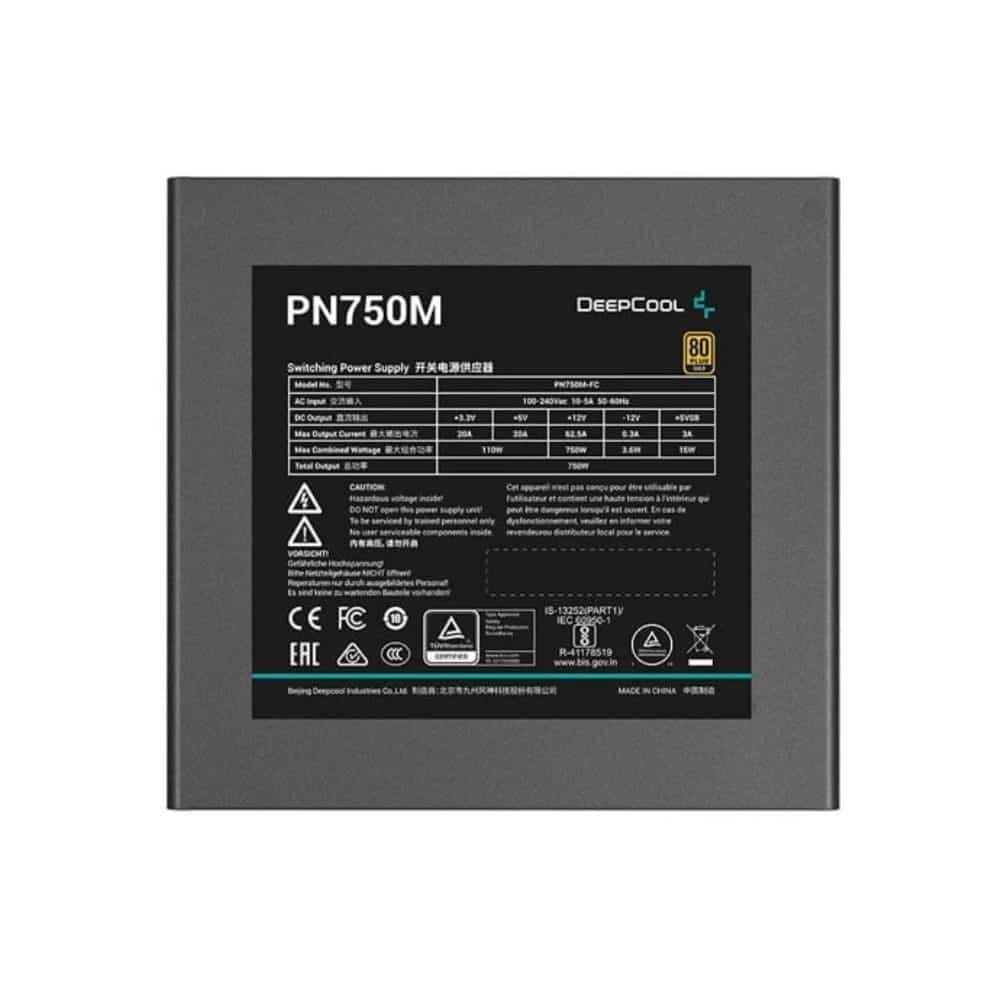

| Total Power Output | 750 Watts |
| Efficiency Rating | 80 Plus Gold |
| Modularity | Fully Modular |
| Topology | LLC + DC-DC with Active PFC |

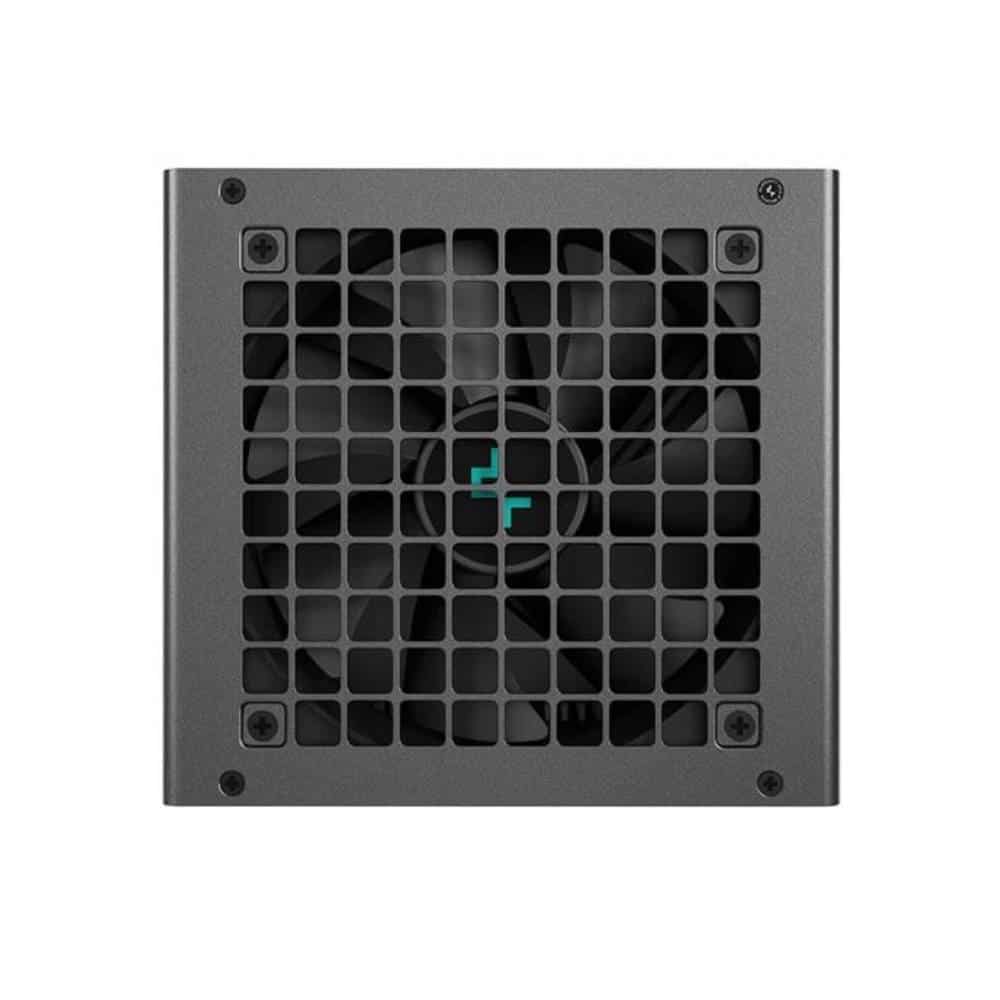

| Cooling | 120mm Fluid Dynamic Bearing Fan |

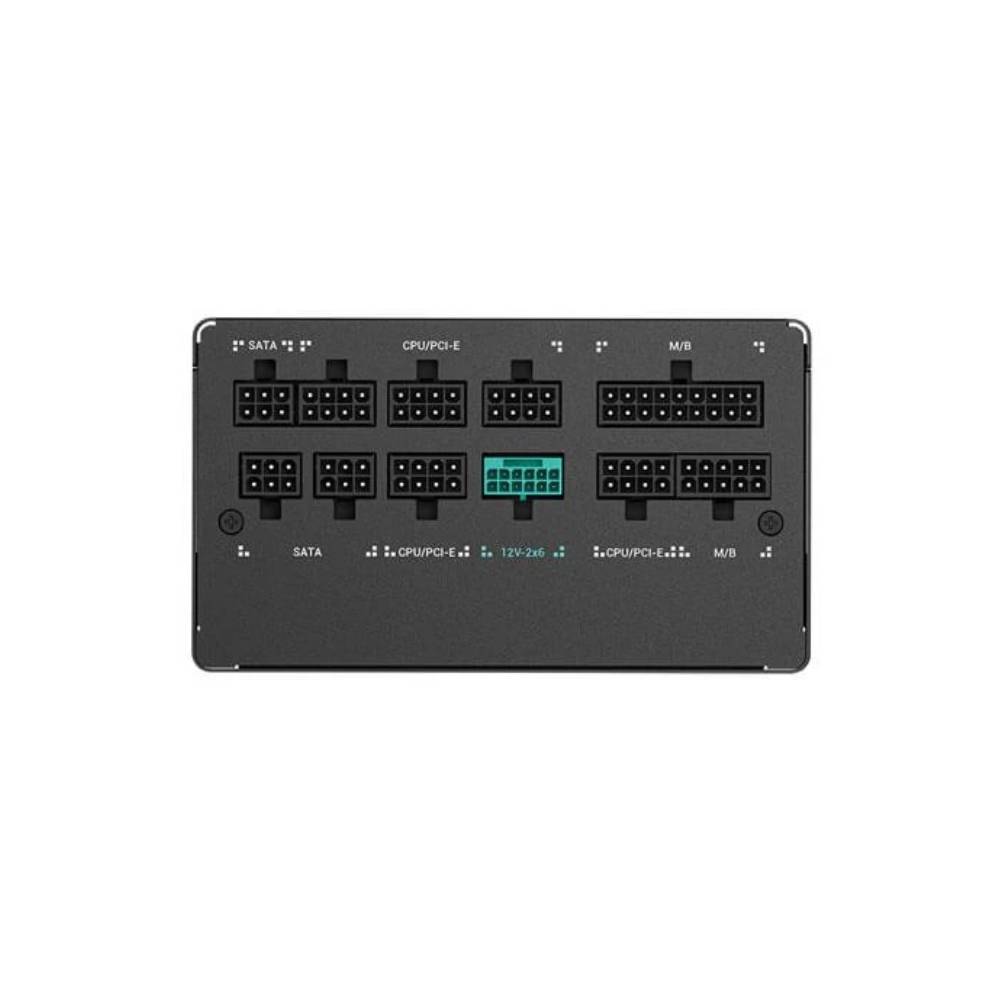

| ATX Connector | 1 × 24-pin |
| CPU Connectors | 2 × 4+4-pin EPS |
| PCIe Connectors | 2 × 6+2-pin + 1 × 12VHPWR (16-pin) |
| SATA Connectors | 6 × SATA |
| Peripheral Connectors | 3 × Molex (4-pin) |
| Input Voltage Range | 100V – 240V AC |
| Protections | OVP, OCP, UVP, OPP, SCP, OTP |
| Hold-Up Time | ≥16 ms at full load |
| Power Factor Correction | Active PFC |
| MTBF | >100,000 hours |
| Operating Temperature | 0°C to 40°C |
| Dimensions (L×W×H) | 150 × 140 × 86 mm |
| Certifications | CE, CB, TUV, FCC, cTUVus, CCC |
| Warranty | 5 Years |
