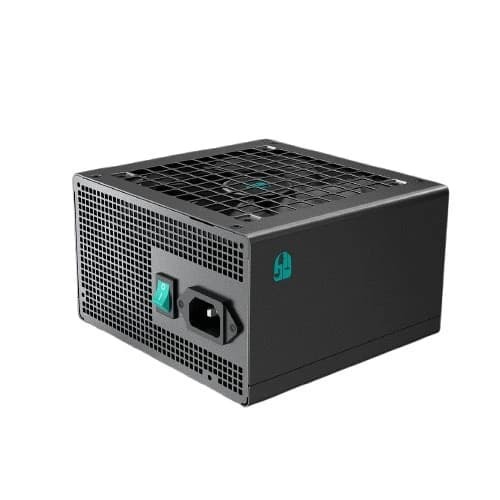

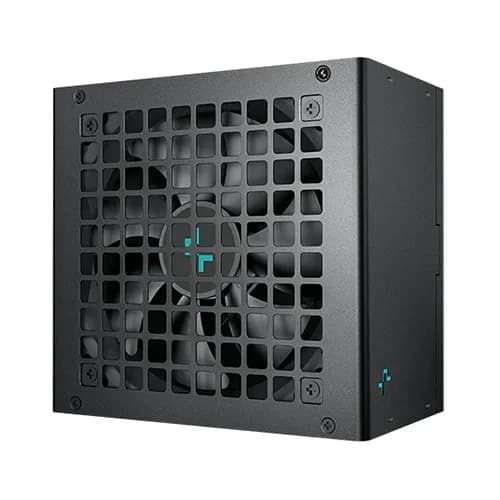

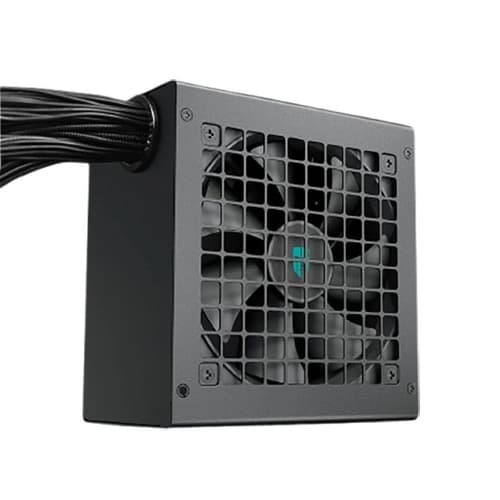

DeepCool Gamer Storm PN650D 650 Watt ATX 3.1 80 Plus Gold Power Supply
Overview:
The DeepCool Gamer Storm PN650D is a reliable 650 W non‑modular ATX 3.1 / Intel ATX12V v3.1 power supply featuring an 80 PLUS Gold efficiency rating. DeepCool Gamer Storm PN650D 650 Watt ATX 3.1 80 Plus Gold ATX 3.1 Power Supply supports modern GPU power demands through a native 12V‑2×6 (16‑pin) connector, offers a 10‑year warranty, and includes a responsive 120 mm hydro‑bearing fan for quiet and efficient operation. DeepCool Gamer Storm PN650D 650 Watt ATX 3.1 80 Plus Gold ATX 3.1 Power Supply Designed with Active PFC, Full-Bridge SRC LLC + DC‑to‑DC topology, and built-in safety protections. DeepCool Gamer Storm PN650D 650 Watt ATX 3.1 80 Plus Gold ATX 3.1 Power Supply delivers robust performance for up-to-date gaming and creative systems.
Key Features:
Natively ATX 3.1 / Intel ATX12V v3.1 compliant, ensuring compatibility with high-power GPUs and fast power transitions.
80 PLUS Gold certified efficiency, delivering ≥ 90% efficiency at typical loads (~50%).
Equipped with a sleeved 12V‑2×6 (16‑pin) PCIe 5.1 power cable capable of delivering up to 450 W to modern GPUs.
Full‑bridge SRC LLC + DC‑to‑DC design with Active PFC and premium electrolytic caps, providing stable voltages and hold-up time ≥ 16 ms at 80% load.

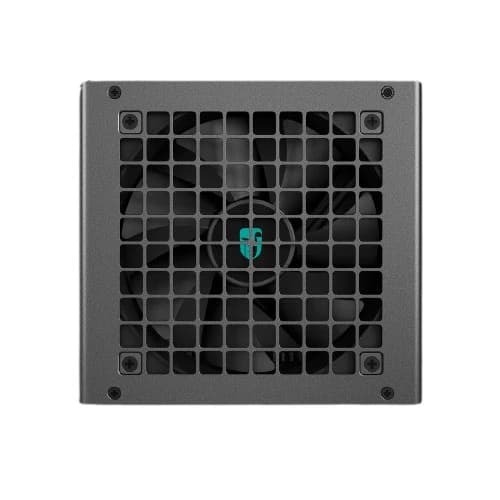

Dynamic 120 mm hydro‑bearing (HYB) fan, adjusting speed according to thermal load for quiet operation.
Comprehensive protection suite: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO included for safe operation.
Operating temperature range from 0–40 °C and support for system deployment up to 5,000 m altitude.
10‑year limited warranty, reflecting DeepCool’s confidence in long-term reliability.
Specification Table:
| Specification | Details |
|---|---|
| Model / SKU | R‑PN650D‑FC0B‑JGIN‑V2 |
| Series | DeepCool Gamer Storm PN650D |
| Power Capacity | 650 W |
| Form Factor / Standard | ATX12V v3.1 / Intel ATX 3.1 |
| Efficiency Certification | 80 PLUS Gold (≥ 90% at ~50% load) |
| Fan | 120 mm Hydro Bearing (HYB), dynamic speed control |
| Cooling & Topology | Active PFC + Full‑Bridge SRC LLC + DC‑to‑DC |
| Capacitors | High-quality Chinese electrolytic |
| Hold-up Time | ≥ 16 ms (at 80% load) |
| Power‑Good Signal Delay | 100–150 ms |
| Connectors | 1× ATX 20+4 pin, 2× EPS 4+4 pin, 3× PCIe 6+2 pin, 1× 12V‑2×6 16‑pin, 3× SATA, 2× Molex |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Dimensions | 150 × 140 × 86 mm |
| Operating Temp Range | 0–40 °C |
| Altitude Support | Up to 5,000 m |
| Regulatory Compliance | CE, FCC, CCC, cTUVus, RCM, EAC, BIS, TUV‑RH, ErP 2014, WEEE, RoHS, P65 |
| MTBF | 100,000 hours |
| Warranty | 10 years |
