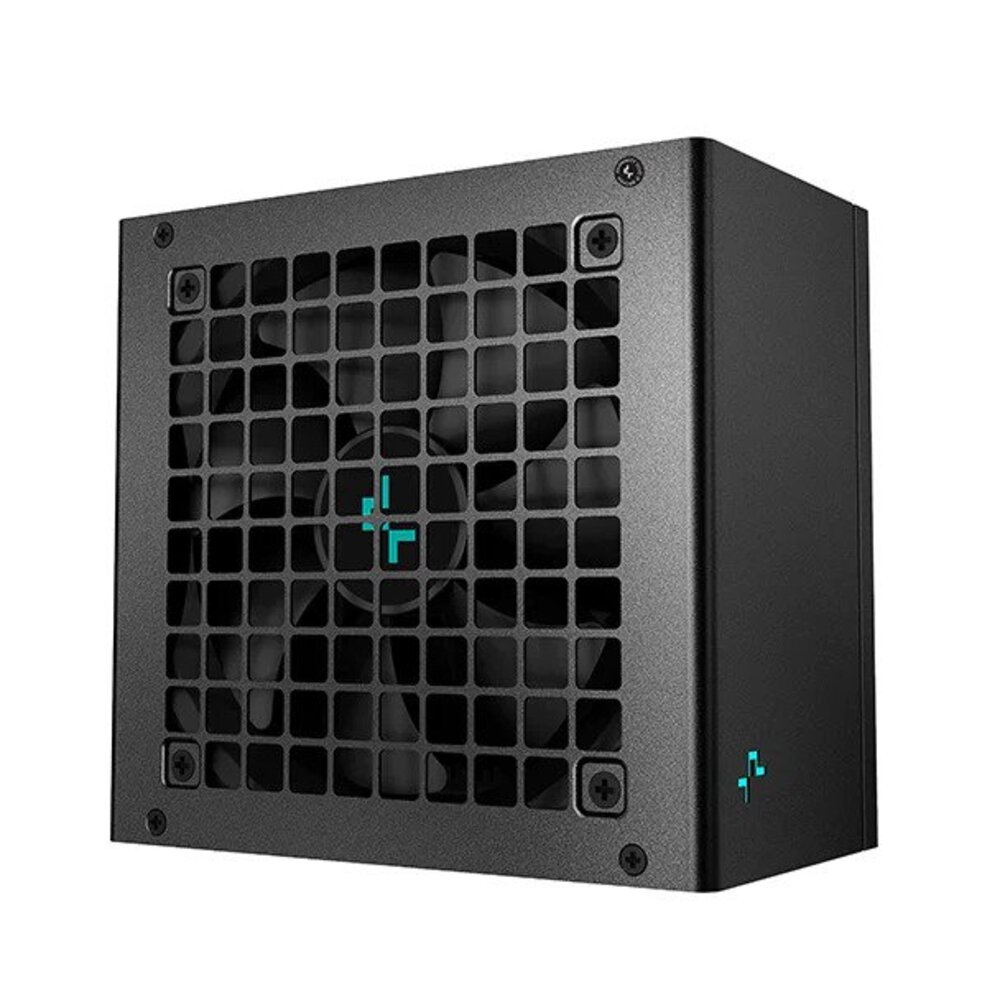

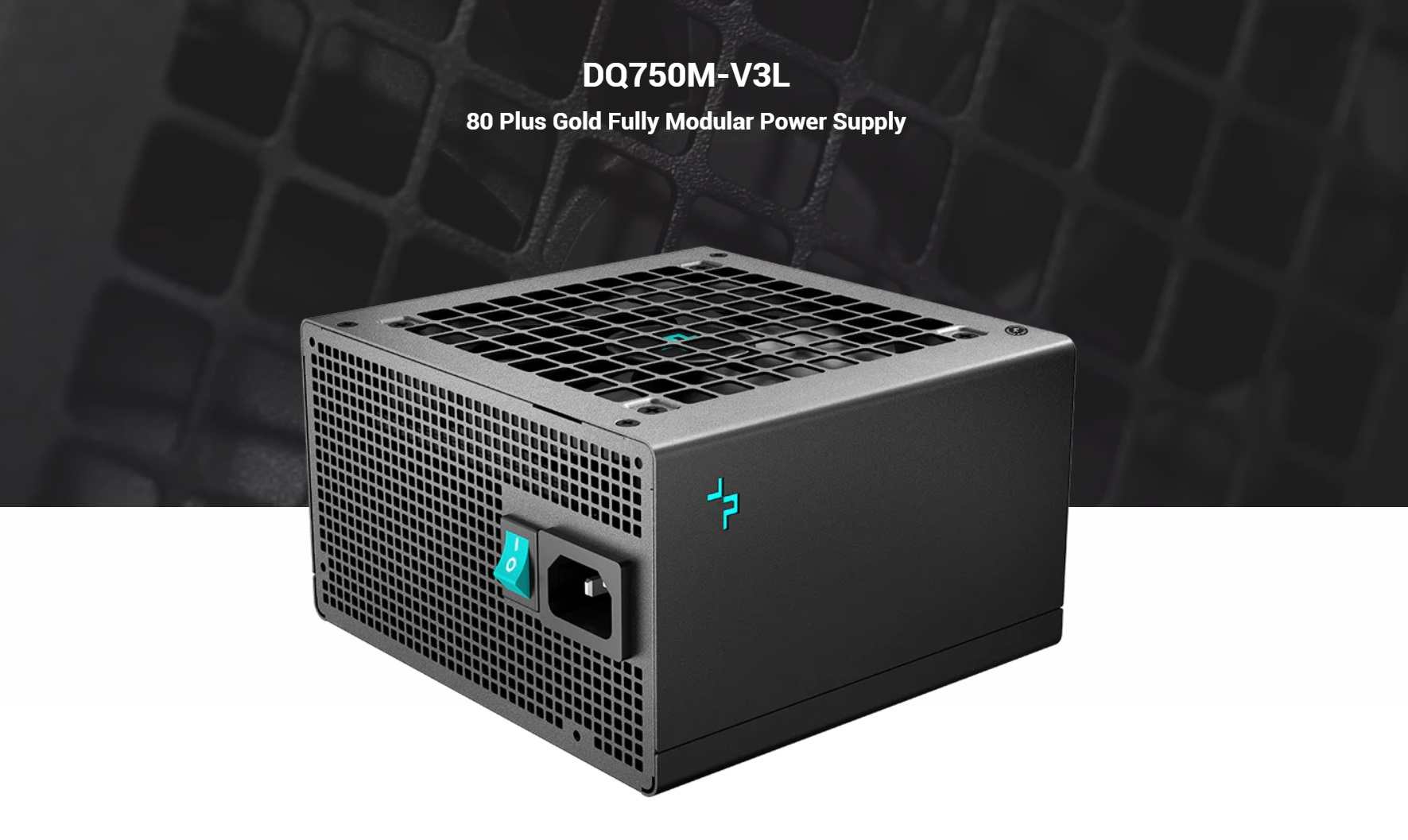

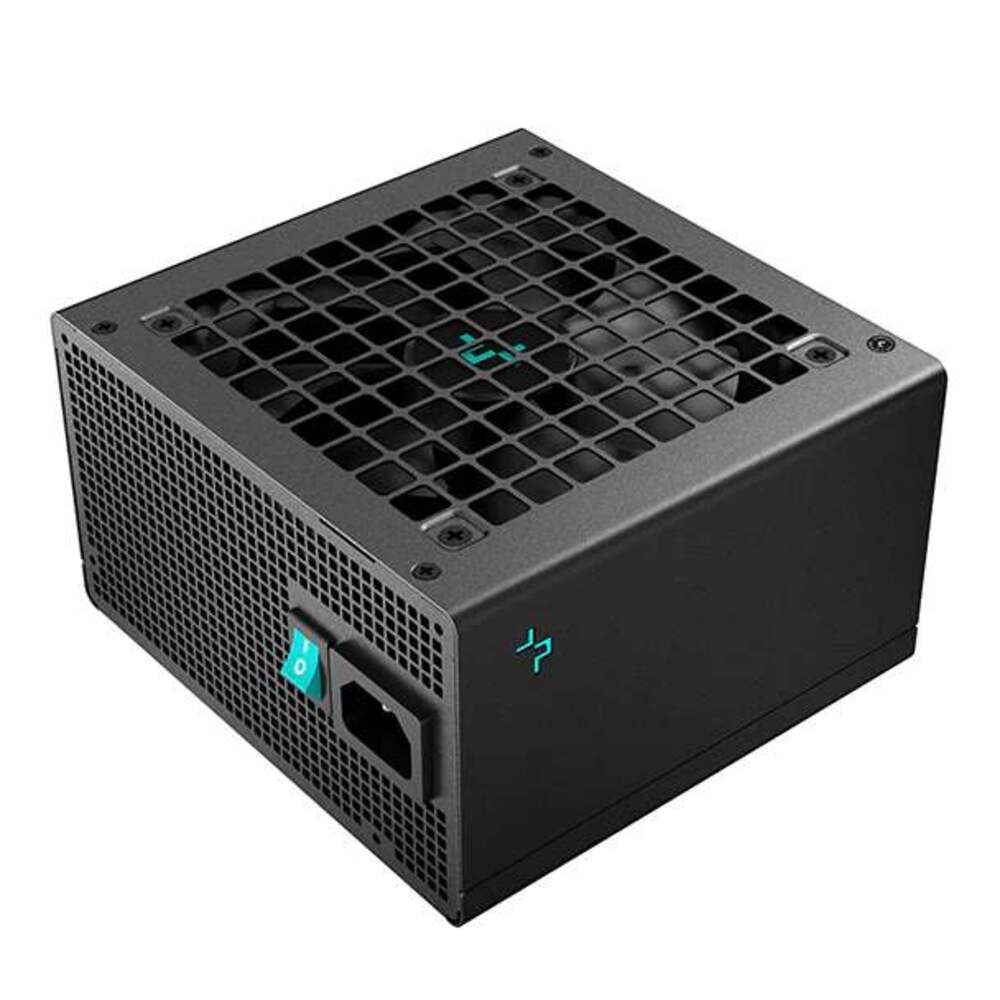

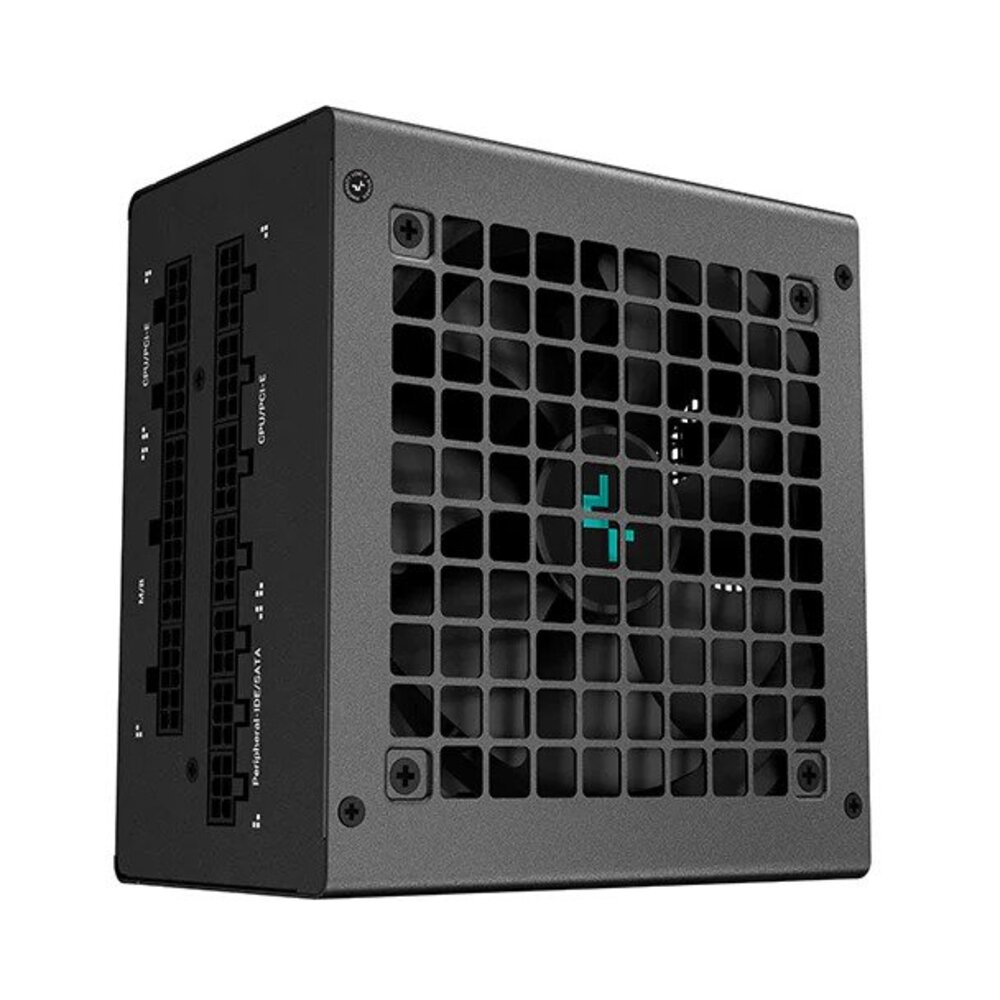

Deepcool DQ750M-V3L 750W 80 Plus Gold Power Supply :
The DeepCool DQ750M-V3L 750W is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.
GO FOR GOLD.
The Deepcool DQ750M-V3L 750W power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. The Deepcool DQ750M-V3L 750W is energy-efficient, and provides efficiency greater than 91.9% at 50% load.
DESIGNED AND BUILT SOLID
The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105℃ bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.
IMPROVED COOLING PERFORMANCE
By implementing a new manufacturing process with the adoption of SiC diodes, it produces lower heat loss, while achieving higher efficiency. The seperative heatsink for the LLC mosfet and a large, full copper heatsink for the SR mosfet creates superior heat dissipation.
POWERFUL COOLING WHEN YOU NEED IT; WHISPER QUIET WHEN YOU DON’T!
Under low loads, the Deepcool DQ750M-V3L 750W will operate at a true zero noise level. At full load, the supported intellegent, temperature-control adjusted, enabled FDB fan provides remarkably low noise cooling, while minimizing noise interference.
SUPERIORITY IN FIVE MAJOR POINTS OF INTERNAL DESIGN
The Deepcool DQ750M-V3L 750W is designed with advanced, mature solution and high specification materials. This focus on detail provides continuous and stable power output for your system.
- The PFC inductor is composed of iron-silicon aluminum that results in low core loss and longer life of the psu.
- A 3rd generation super junction MOSFET tube provides a low internal resistance design, reducing conduction loss.
- The output solid capacitor ripple is lower to meet load variation demand from graphics cards such as RTX30/RX60.
- Optimized start-up inrush current design, the inrush current is less than 80A to prevent circuit damage.
- 12V with DC to DC design, optimized ripple and voltage regulators.
|Product Dimensions||150×140×86mm (W x L x H)|
|Fan Bearing||FDB (Fluid Dynamic Bearing)|
|Topology||Active PFC + Full Bridge SRC LLC + DC to DC|
|Capacitors||Full Japan Electrolytic Capacitors|
|Power Good Signal||100-500ms|
|Hold Up Time||≥16ms(80% Load)|
|Efficiency||≥90% Under Typical Load(50% Loading)|
|Operation Temperature||0 – 40 °C|
|Erp Regulation||ErP 2014|
|EAN P/N||6933412716297 R-DQ750M-FB0B-UK|
