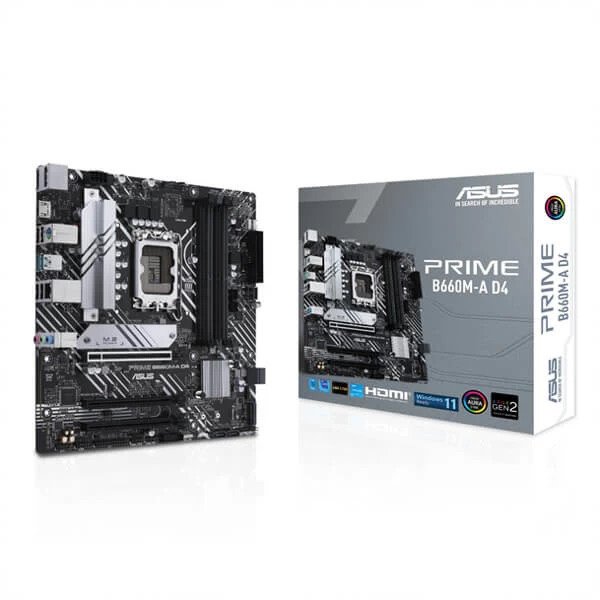

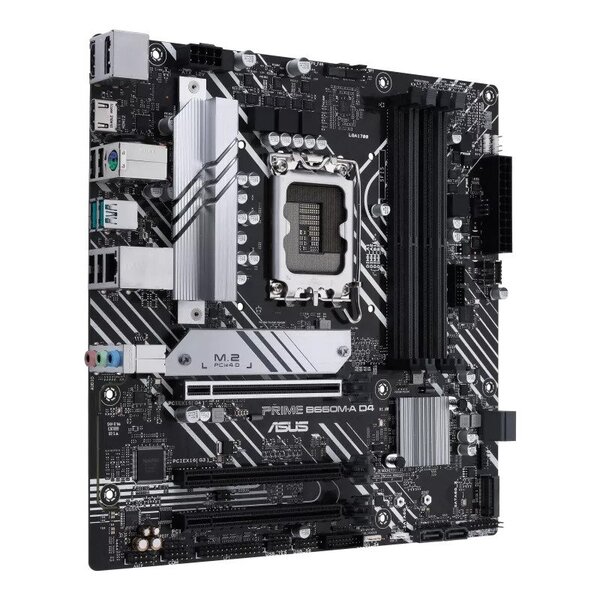

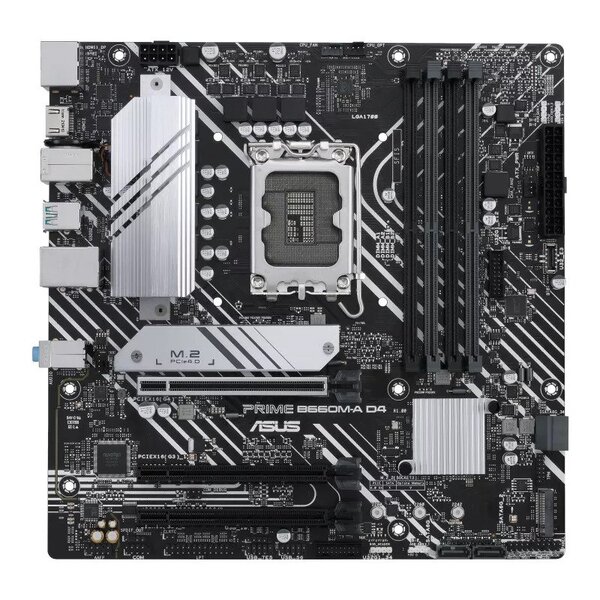

Asus Prime B660M-A D4 Motherboard
Features
Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, DP,2 x HDMI®, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Asus Prime B660M-A D4
- Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C® Asus Prime B660M-A D4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ Asus Prime B660M-A D4
Specifications
| CPU | Intel LGA1700 CPU supported by Asus TUF Gaming B660M-Plus Wifi D4 |
| Chipset | Intel® B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| Graphics | 1 x DisplayPort** 2 x HDMI® port |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| Wi-Fi | N/A |
| USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A)Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port |
| Audio | ALC897 |

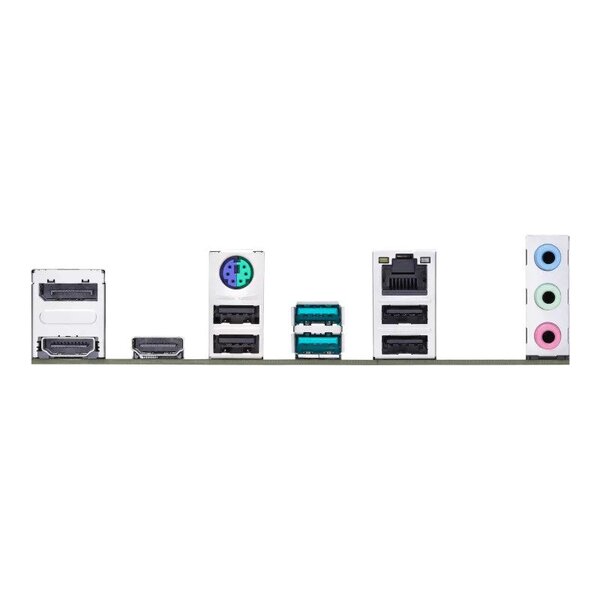

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | microATX 24.4cm x 24.4cm |
| Warranty | 3 Years |
