Sale!

ASRock B550 Taichi Razer Edition Motherboard

28,500 (Inclusive of GST)

-59%
Available Models: B550-TAICHI-RAZER-EDITION
Brand:

Out of stock

Email when back in stock

The Renowned B550 Taichi Now in a Special Razer Edition Avatar, Featuring 16 Phase Digital VRM, Chroma RGB Lighting Support, Killer 2.5 Gigabit Ethernet and WiFi 6 Connectivity, Also Nahimic Audio.

Features

B550 Taichi Razer Edition

  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
  • 16 Power Phase Design, Digi Power, Dr. MOS
  • Supports DDR4 5200+ (OC)
  • 3 PCIe 4.0/3.0×16, 2 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • AMD 3-Way CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
  • Killer E3100X 2.5G LAN, Killer AX1650x Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1
  • Supports Razer Chroma
    *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

The Renowned ASRock B550 Taichi Razer Edition Motherboard, Featuring 16 Phase Digital VRM, Chroma RGB Lighting Support, Killer 2.5 Gigabit Ethernet and WiFi 6 Connectivity, Also Nahimic Audio.

Specifications

Unique FeatureASRock USB 3.2 Gen2
– ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– 50A Dr.MOS
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
Killer 2.5G LAN
Killer 802.11ax WiFi
Killer DoubleShot™ Pro
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU– Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
– Digi Power design
– 16 Power Phase design

*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset– AMD B550
Memory– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*– Max. capacity of system memory: 128GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots
BIOS– 256Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment
Graphics– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120×2880)@120Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.1
– Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
– Supports Microsoft® PlayReady
Audio– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Nahimic Audio
LAN– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– 1 x Killer E3100X (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Wireless LAN– Killer AX1650x 802.11ax WiFi Module
– Supports IEEE 802.11a/b/g/n/ax
– Supports Dual-Band (2.4/5 GHz)
– Supports Killer WiFi6 802.11ax (2.4Gbps)
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.1 + High speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro
SlotsAMD Ryzen series CPUs (Vermeer)
– 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*
AMD Ryzen series CPUs (Matisse)
– 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*
AMD Ryzen series APUs (Renoir)
– 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))*– 2 x PCI Express 3.0 x1 Slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin)
– 5 x Chassis/Water Pump Fan Connectors (4-pin)
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Clear CMOS Button.

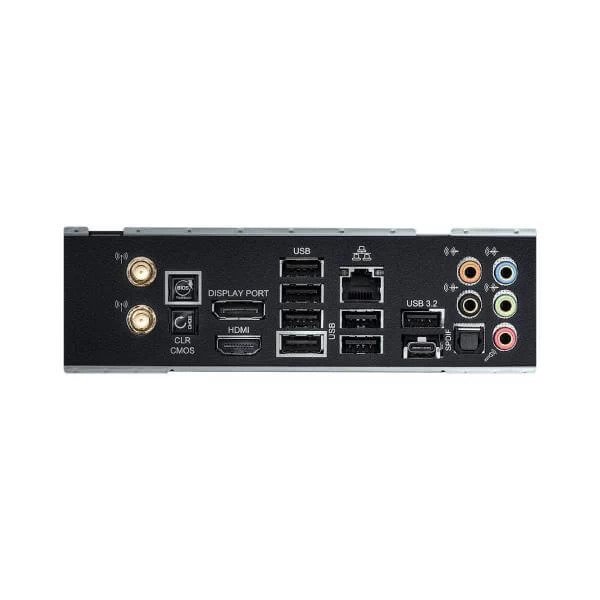

Rear Panel I/O– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Support CD– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories– Quick Installation Guide, Support CD
– 4 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5 GHz Antenna
– 1 x ASRock Screwdriver
– 2 x Screws for M.2 Sockets
– 2 x Standoffs for M.2 Sockets
Form Factor– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
OS– Microsoft® Windows® 10 64-bit
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty3 Years

Additional information

Weight5 kg
Brand

Asrock

Socket

AM4

Chipset

B550

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

AMD

EAN/UPC

4710483933059

Memory Slot Type

DDR4
