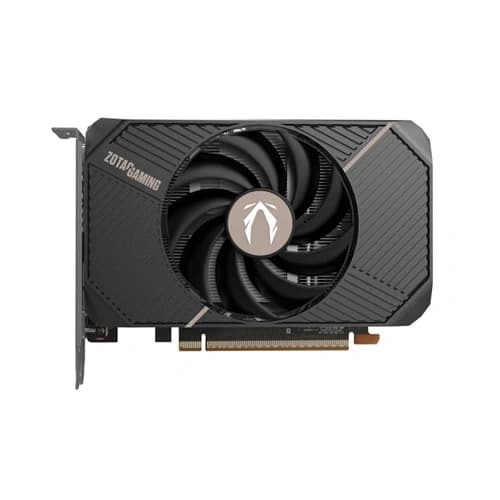

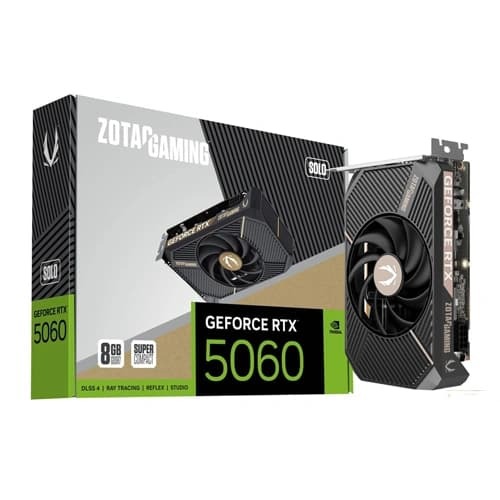

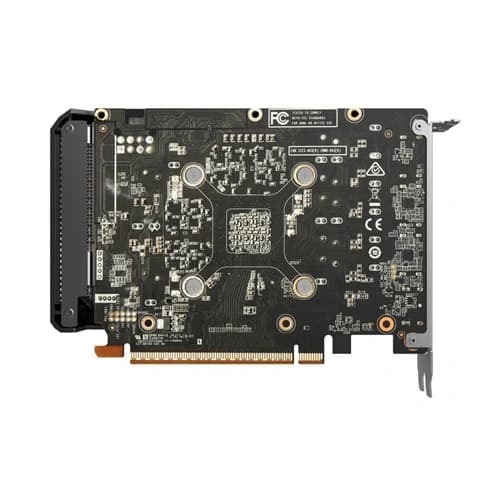

Zotac Nvidia GeForce RTX 5060 Solo 8GB GDDR7 Single Fan Graphics Card :
Overview :
The Zotac Nvidia GeForce RTX 5060 Solo 8GB GDDR7 Single Fan Graphics Card is a compact, high-performance graphics card built on NVIDIA’s Blackwell architecture. Designed for small form factor (SFF) and ITX builds, Zotac Nvidia GeForce RTX 5060 Solo 8GB GDDR7 Single Fan Graphics Card offers impressive gaming and creative performance with support for DLSS 4, ray tracing, and PCIe 5.0, all within a dual-slot, single-fan design.
Key Features :
Compact SFF Design: At just 165 mm long and occupying two slots, it fits in 99% of PC cases
NVIDIA Blackwell GPU: Equipped with 3,840 CUDA cores and next-gen AI support, including DLSS 4 and Multi Frame Generation
8 GB GDDR7 Memory: 128-bit interface with 28 Gbps bandwidth for smooth performance
Efficient Cooling: Single 90 mm BladeLink axial fan and IceStorm 2.0 cooling system manage the 145 W TGP
Power & Connectivity: Powered via a standard 8-pin connector and supports PCIe 5.0; includes 3× DisplayPort 2.1b and 1× HDMI 2.1b outputs
Specifications Table :
| Model | ZOTAC GAMING GeForce RTX 5060 Solo (ZT-B50600G-10L) |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 3,840 |
| Video Memory | 8 GB GDDR7 |
| Memory Bus / Speed | 128‑bit / 28 Gbps |
| Boost Clock | ~2,497 MHz |
| TGP | 145 W |
| Cooling | Single 90 mm axial fan, IceStorm 2.0 |
| Dimensions | ~165 × 111 × 37 mm (L×H×W), 2-slot |
| Power Connector | 1 × 8-pin |
| Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| PCIe Interface | PCIe 5.0 |
| SFF Compatibility | Fits in 99% of PC cases |
| Warranty | 3 years (+2 Years with Registration) |
