XPG Cybercore 1300W 80 Plus Platinum Power Supply :
- XPG and Nidec collaboration- Cooling by XPG VENTO PRO 120 PWM Fan by Nidec
- Cybenetics certified: ETA PLATINUM & LAMBDA A-
- 80 PLUS PLATINUM certified efficiency up to 92% at 50% load
- 100% Japanese capacitors at 105℃
- 8 Industrial Level Protections, operating temperature: 50℃
Cybenetics ETA PLATINUM and LAMBDA A- Certified
XPG Cybercore 1300W is certified by the highest Cybenetics quality standards.
All configurations have achieved ETA PLATINUM grade while still maintaining LAMBDA A- rating for noise even with our most compact form factor, reaching A- with 230V for the 1300W version. This is a statement of our commitment to deliver the absolute best performance for all of our PC users.
80 PLUS PLATINUM Efficiency
XPG Cybercore 1300W’s efficiency achieves 92.91% 115VAC at 50% load (temperature at 25℃), delivering exemplary performance even by 80 PLUS PLATINUM standards.

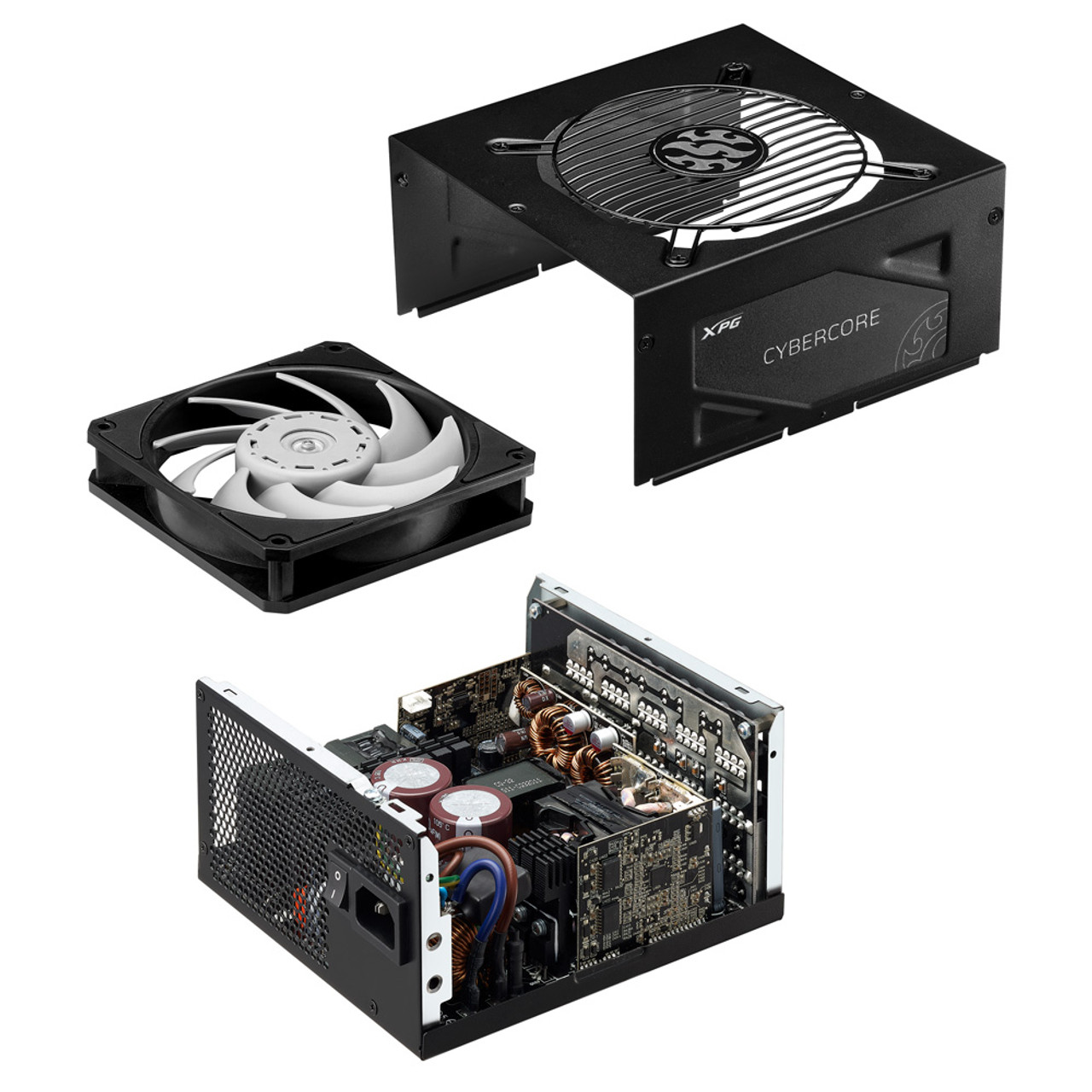

XPG VENTO PRO 120 PWM FAN by Nidec
XPG Cybercore 1300W is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60℃).
Efficient Fan Curve
XPG Cybercore 1000W’s fan curve is intelligently designed. The fan begins with a zero RPM low-load mode until around 30% power load before initiating to spin. This design has 2 main benefits: to prolong fan life expectancy, and to minimize fan noise.
All Japanese 105℃ Capacitors
XPG Cybercore 1300W PLATINUM Series utilizes all-Japanese high quality 105℃ capacitors to ensure power delivery is stable, consistent and efficient.
Digital Control Panel in a Compact Form Factor
XPG Cybercore 1300W PLATINUM PSU’s power delivery efficiency is optimized via Digital Control Panel.
It controls, commands and optimizes power delivery’s efficiency and stability, ensuring the process is stable but also accurate, helping protects other components as well, all within such a compact form factor (LxWxH) 160x150x86mm, making it an extraordinary creation of a PLATINUM-grade power supply by XPG.

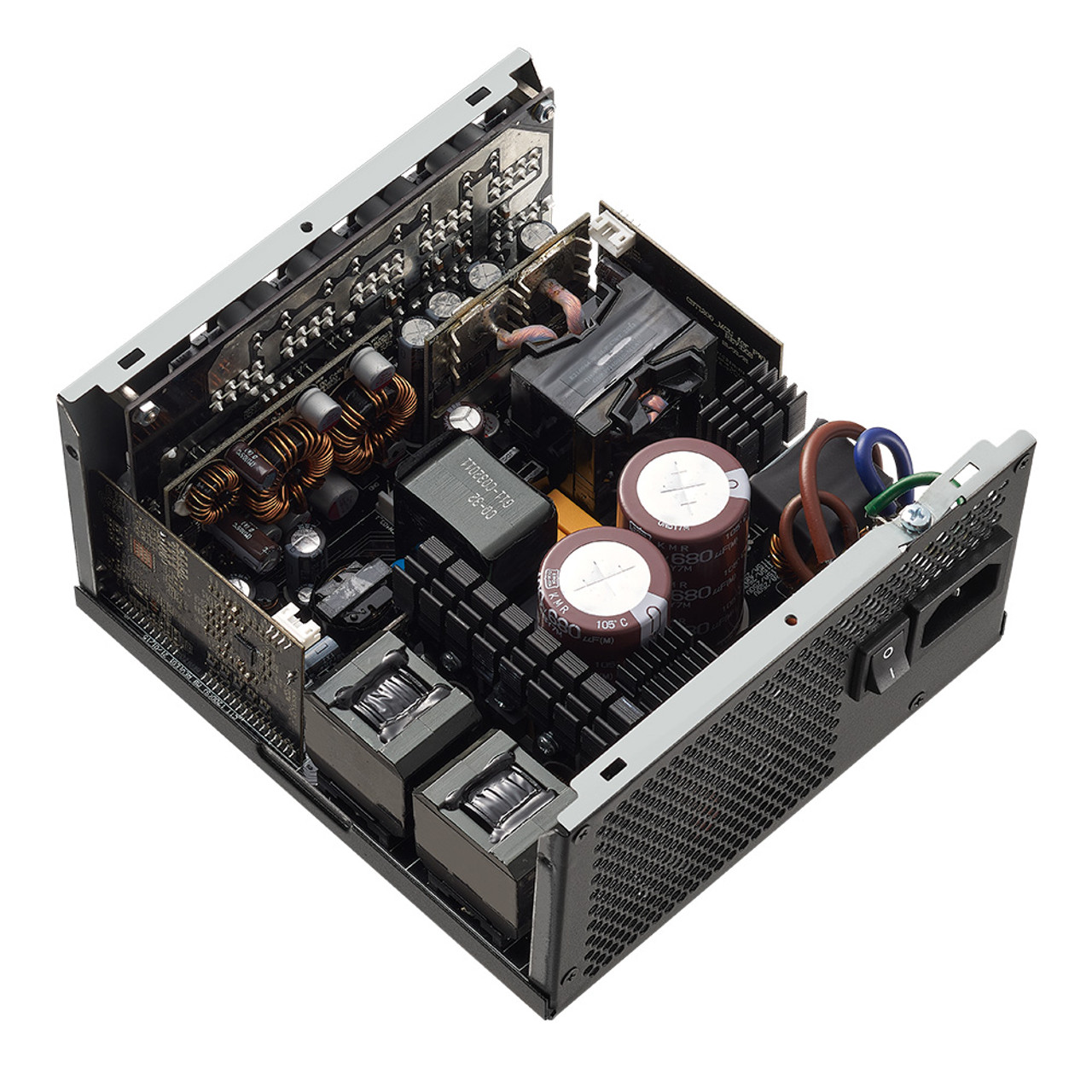

DC-to-DC Circuit Design
DC-to-DC Circuit design minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to components’ life expectancy. Ultimately, XPG CYBERCORE can achieve smooth and stable power delivery.
XPG Cybercore 1000W Interleaved PFC (Power Factor Correction) regulates and stabilizes voltage, and distributes power at its optimal efficiency, leveraging 2 chokes that alternate each other, reducing power loss during conversion.
XPG CYBERCORE’s PFC is Active, meaning it provides more efficient power efficiency, automatically correcting AC input voltage (full range).
8 Industrial Protections with 10-Year Warranty
XPG Cybercore 1300W is protected by 8 industrial-level mechanisms and backed up by a 10-Year Warranty to ensure the safety and stability of both the unit and the system.
|Dimensions (L x W x H)||160 x 150 x 86mm|
|80 PLUS RATING||PLATINUM|
|ATX Version||Intel ATX 12V v2.52|
|Protections||OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP|
|Certification||CE / CB/ FCC(IC) / TUV / cTUVus / TUV S-Mark / NOM / BSMI / UKCA / EAC|
|Fan Bearing||Dual Ball Bearing|
|Fan Speed||2,150 RPM|
|MTBF||120K hours at 25°C|

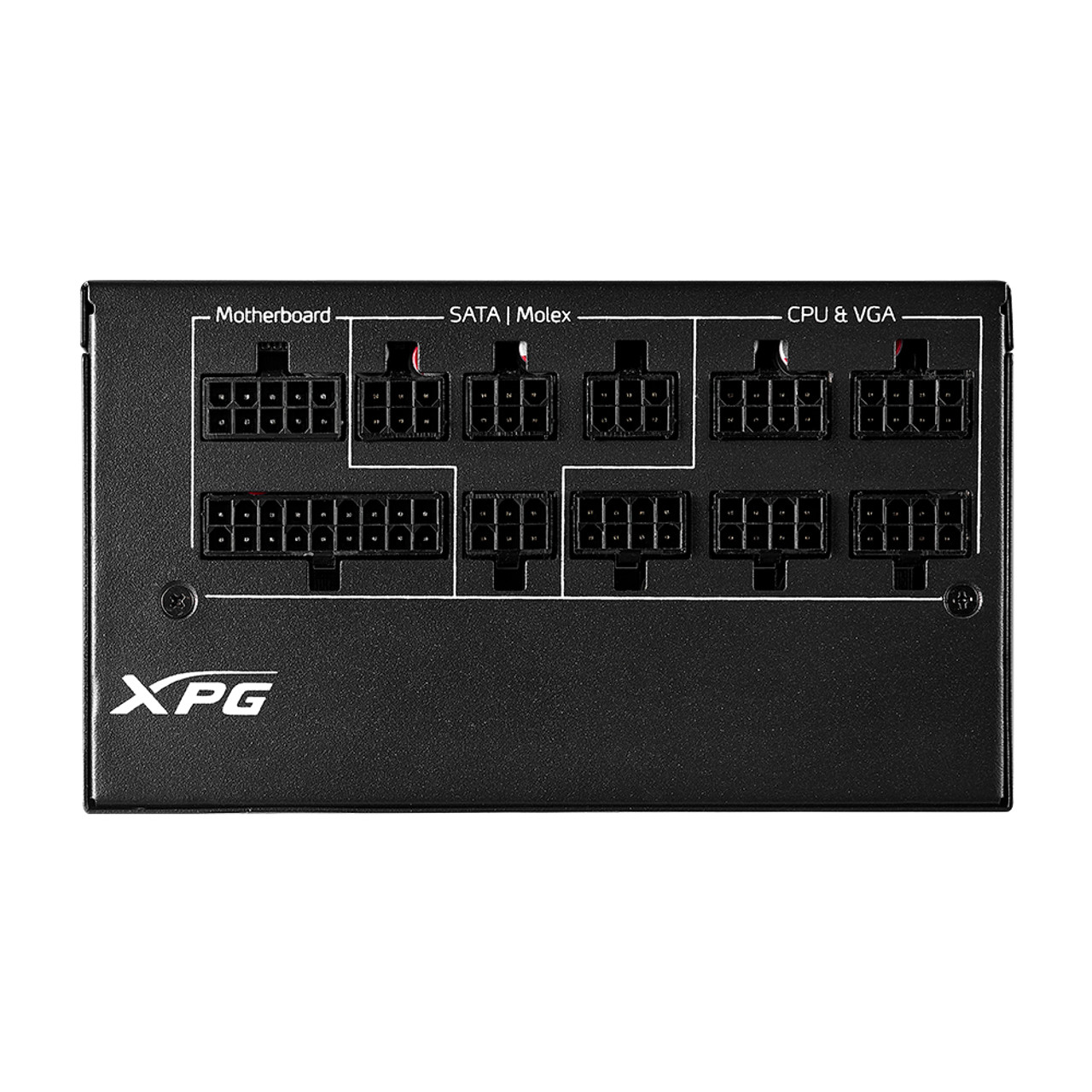

|ATX 24 Pin Connector||1300W：1|
|EPS 8 (4+4) Pin Connector||1300W：2|
|EPS 8 Pin Connector||–|
|PCI-E 6+2 Pin Connector||1300W：10|
|Peripheral 4 Pin Connector||1300W：8|
|Floppy 4 Pin Connector||1300W：2|
Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5%
with Package：4.6kg (10.1lb) ±5%
