ViewSonic TD2423 23.8″ IR Touch Monitor TN FHD 75 Hz
Features:
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
Overview:

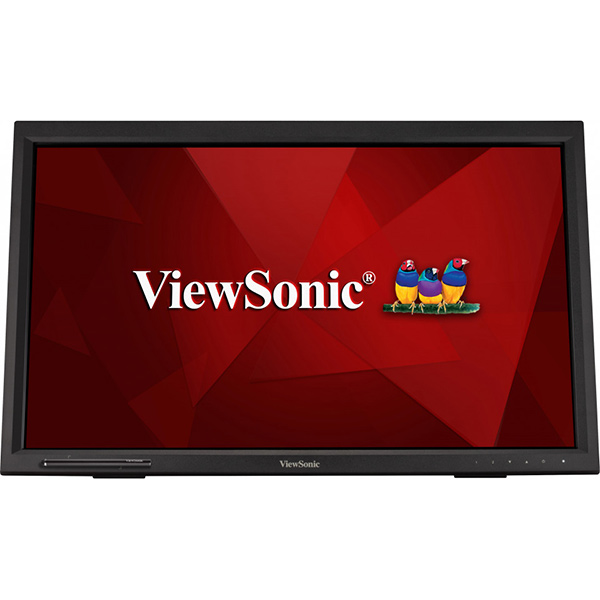

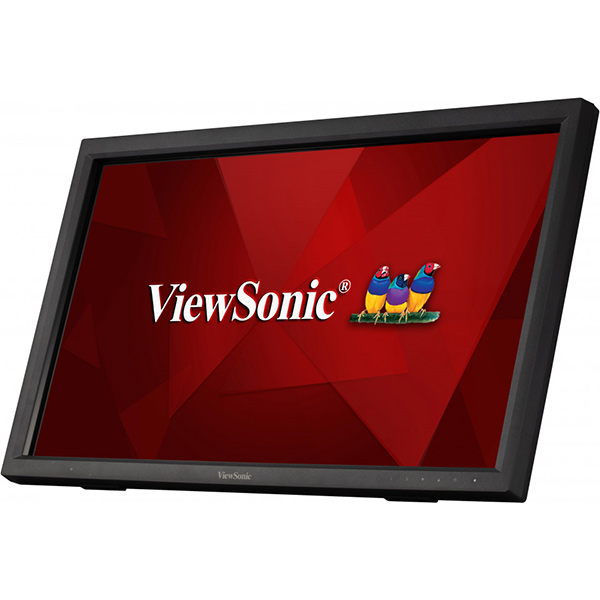

The ViewSonic TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
ViewSonic TD2423 has infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
Operating System Support
ViewSonic TD2423 monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
ViewSonic TD2423 monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

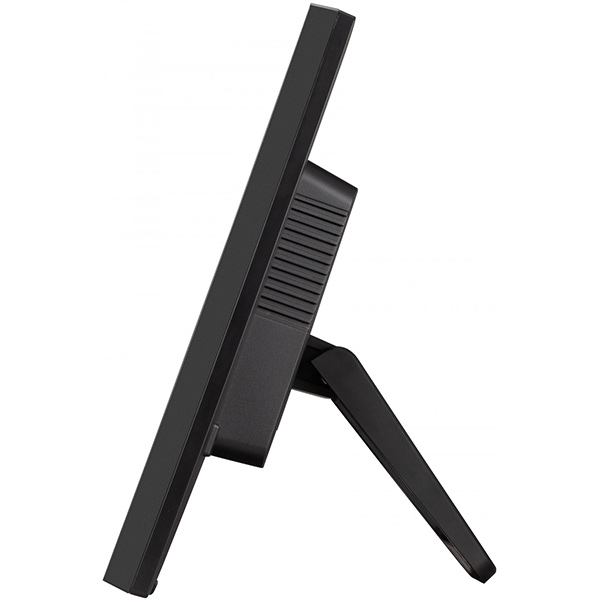

Adjustable Tilt
ViewSonic TD2423 monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920×1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
ViewSonic TD2423 comes With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
ViewSonic TD2423 monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

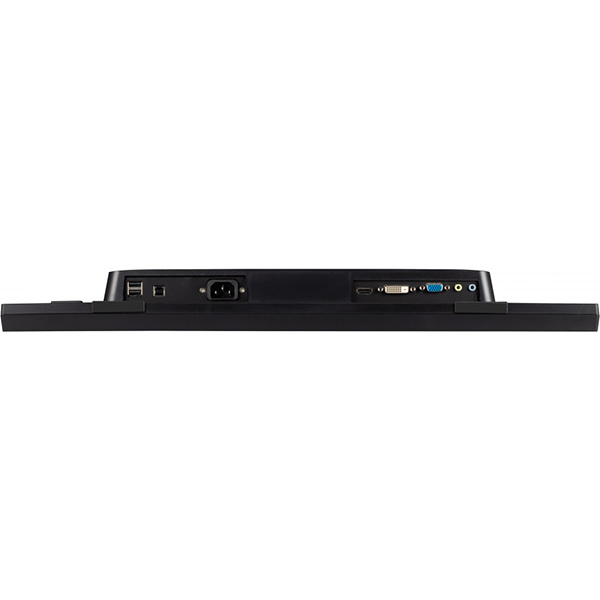

Dimension & I/O Ports
- Menu Control Panel
- USB Down Stream x 2
- USB UP Stream
- AC In
- HDMI

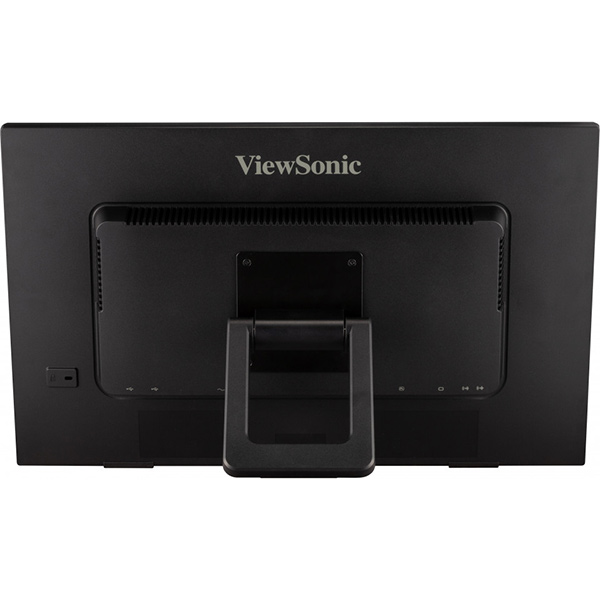

- VESA Compatible
(Wall Mount 100 x 100mm) - Earphone Out
- Audio In
- VGA
- DVI
Specifications :
| DISPLAY | |
| Display Size (in.): | 24 |
| Viewable Area (in.): | 23.6 |
| Panel Type: | VA Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 3,000:1 (typ) |
| Dynamic Contrast Ratio: | 20M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m² (typ) |
| Colors: | 16.7M |
| Color Space Support: | 8 bit (6 bit + Hi-FRC) |
| Aspect Ratio: | 16:09 |
| Response Time (Typical GTG): | 7ms |
| Response Time (GTG w/OD): | 7ms |
| Response Time (Typical Tr+Tf): | 25ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 40000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 75 |
| Blue Light Filter: | Yes |
| Flicker-Free: | Yes |
| Color Gamut: | NTSC: 72% size (Typ) sRGB: 104% size (Typ) |
| Pixel Size: | 0.272 mm (H) x 0.272 mm (V) |
| Touch Screen: | IR, 10-point multi-touch |
| Surface Treatment: | Glossy, Hard Coating (7H) |
| Cover Glass Thickness: | 1.85mm |
| COMPATIBILITY | |
| PC Resolution (max): | 1920×1080 |
| Mac® Resolution (max): | 1920×1080 |
| PC Operating System: | Windows 7/8.1/10/11 certified; macOS tested |
| Mac® Resolution (min): | 1920×1080 |
| CONNECTOR | |
| VGA: | 1 |
| USB 2.0 Type A: | 2 |
| USB 2.0 Type B: | 1 |
| 3.5mm Audio In: | 1 |
| 3.5mm Audio Out: | 1 |
| HDMI 1.4: | 1 |
| DVI-D: | 1 |
| Power in: | 3-pin Socket (IEC C14 / CEE22) |
| AUDIO | |
| Internal Speakers: | 2Watts x2 |
| POWER | |
| Eco Mode (Conserve): | 11.5W |
| Eco Mode (optimized): | 13.5W |
| Consumption (typical): | 15.5W |
| Consumption (max): | 16.5W |
| Voltage: | AC 100-240V |
| Stand-by: | 0.5W |
| Power Supply: | Internal Power Supply |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| Cable Organization: | Yes |
| CONTROLS | |
| Physical Controls: | 1, 2, Up, Down, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| OPERATING CONDITIONS | |
| Temperature: | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): | 20% to 90% |
| WALL MOUNT | |
| VESA Compatible: | 100 x 100 mm |
| INPUT SIGNAL | |
| Frequency Horizontal: | 24 ~ 82KHz |
| Frequency Vertical: | 50 ~ 75Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS – DVI-D, TMDS – HDMI (v1.4) |
| Analog Sync: | Separate/Composite/SOG – RGB Analog |
| ERGONOMICS | |
| Tilt (Forward/Back): | 20º / 40º |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 11.5 |
| Net Without Stand (lbs): | 10.3 |
| Gross (lbs): | 15.4 |
| WEIGHT (METRIC) | |
| Net (kg): | 5.2 |
| Net Without Stand (kg): | 4.7 |
| Gross (kg): | 7 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 25.4 x 16.6 x 6.5 |
| Physical (in.): | 22.5 x 13.7 x 4 |
| Physical Without Stand (in.): | 22.5 x 13.7 x 2.4 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 645 x 422 x 166 |
| Physical (mm): | 571 x 348 x 101 |
| Physical Without Stand (mm): | 571 x 348 x 61 |
| GENERAL | |
| Regulations: | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, VCCI, PSE, KC, e-Standby, BIS, CCC, China RoHS, China Energy Label, CECP |
| PACKAGE CONTENTS: | TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | *Warranty offered may differ from market to market |
| Power Management: | Energy Star standards, EPEAT |
