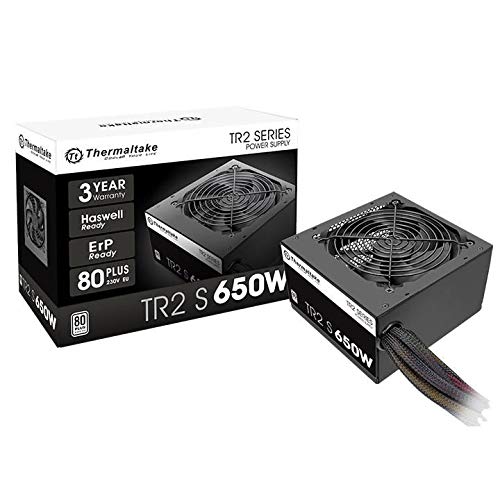

FEATURES
Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
Multiple Connectors
The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage.
80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
High-Quality Components
High-quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT | Input Voltage: 230V | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 23A | 17A | 48A | 0.5A | 2.5A |
| Max Output Power | 110W | 576W | 6W | 12.5W | |
| Total Power | 650W | ||||
SPECIFICATIONS
| Model | PS-TRS-0650NPCWEU-2 |
| watts | 650W |
| RGB Fan | No |
| Form Factor | ATX |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 650W |
| Color | Black |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) within 60% load |
| Input Current | 9A max |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Voltage | 230 Vac |
| Operating Temperature | ℃ to +40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to +55 ℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV |
| PCI-E 6+2pin | PCI-E 6+2pin x 2 |
| Warranty | 3 Years |
