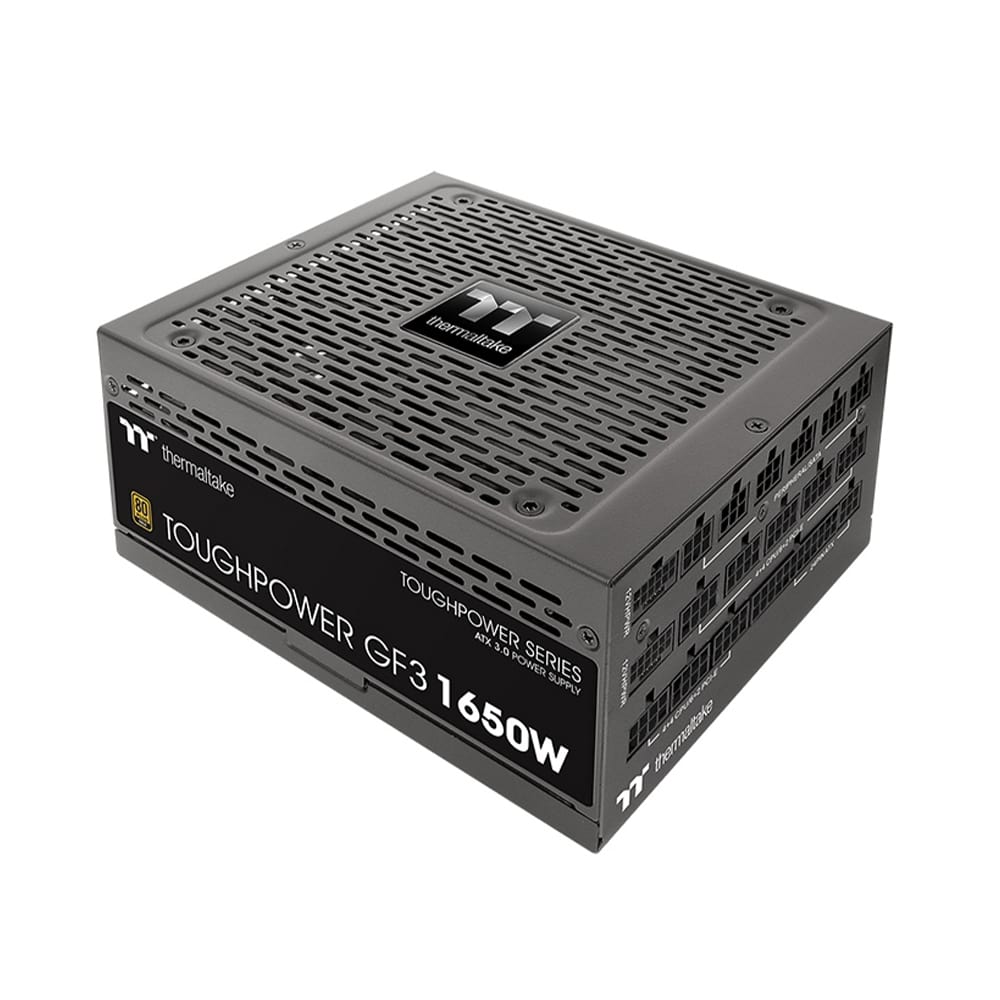

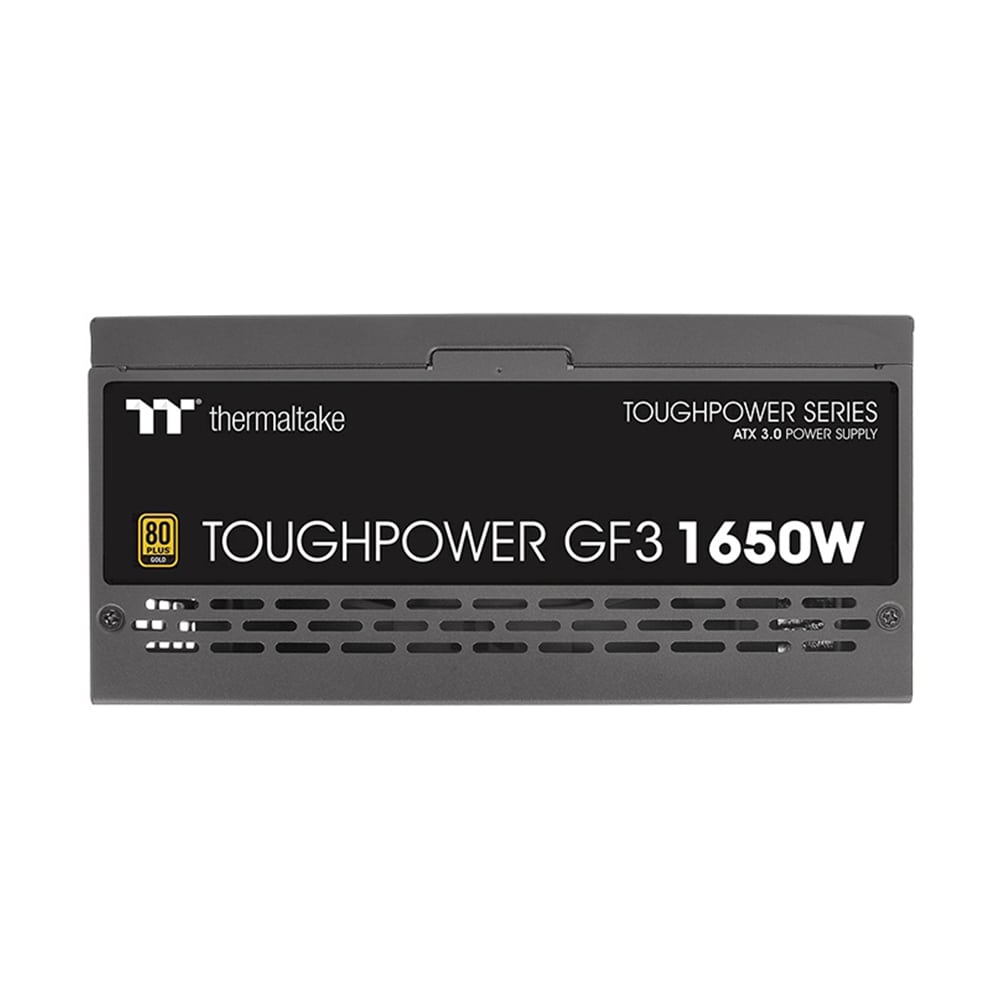

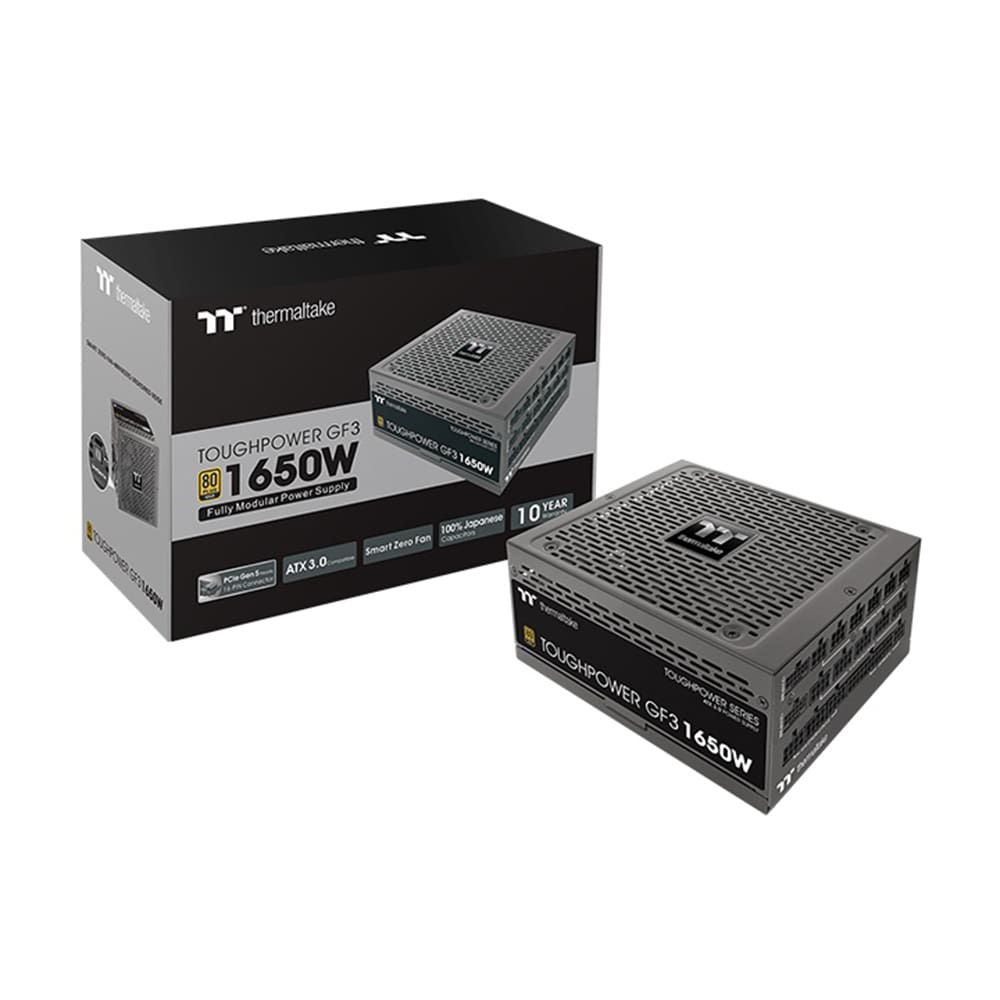

Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply
Designed with a native PCIe 12+4pin connector, the Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Power Supply is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.
Overview :
Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply – TT Premium Edition
PCIe Gen 5.0 Ready! Designed with two native PCIe 12+4pin modular connectors, the Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply is built for the next-gen PCIe 5.0 graphic cards and is compatible with Intel ATX 3.0 specifications. The fully modular Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.
Fully Compatible With Intel PSDG ATX 3.0 Specifications
Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply can sustain up to 3x GPU power excursion and 2x total power excursion.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.
PCIe Gen 5.0 Ready
Thermaltake Toughpower GF3 1650W ATX 3.0 80 Plus Gold Fully Modular Power Supply comes with two 16pin connectors to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.

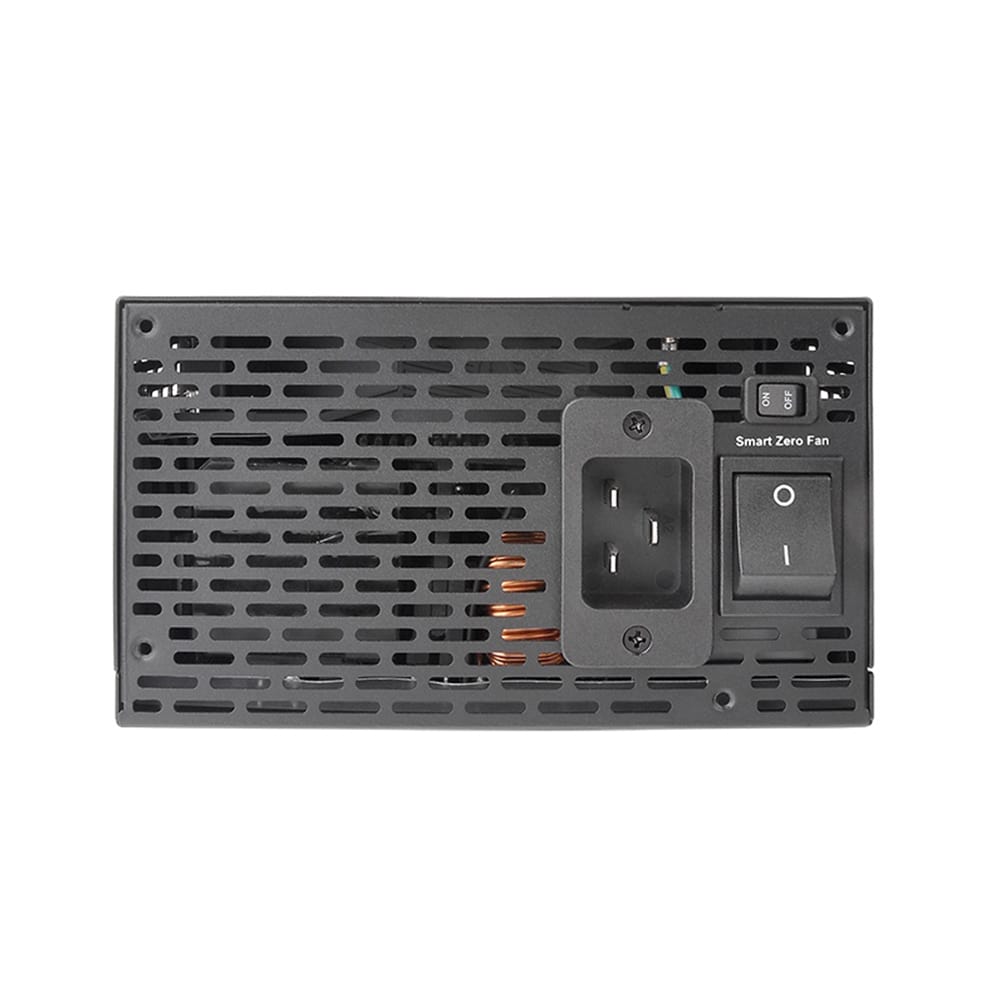

Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
Extremely Strict Voltage Regulation ＜±3%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±3% for +12V and +5V, providing steady clean power through exceptional voltage stability.

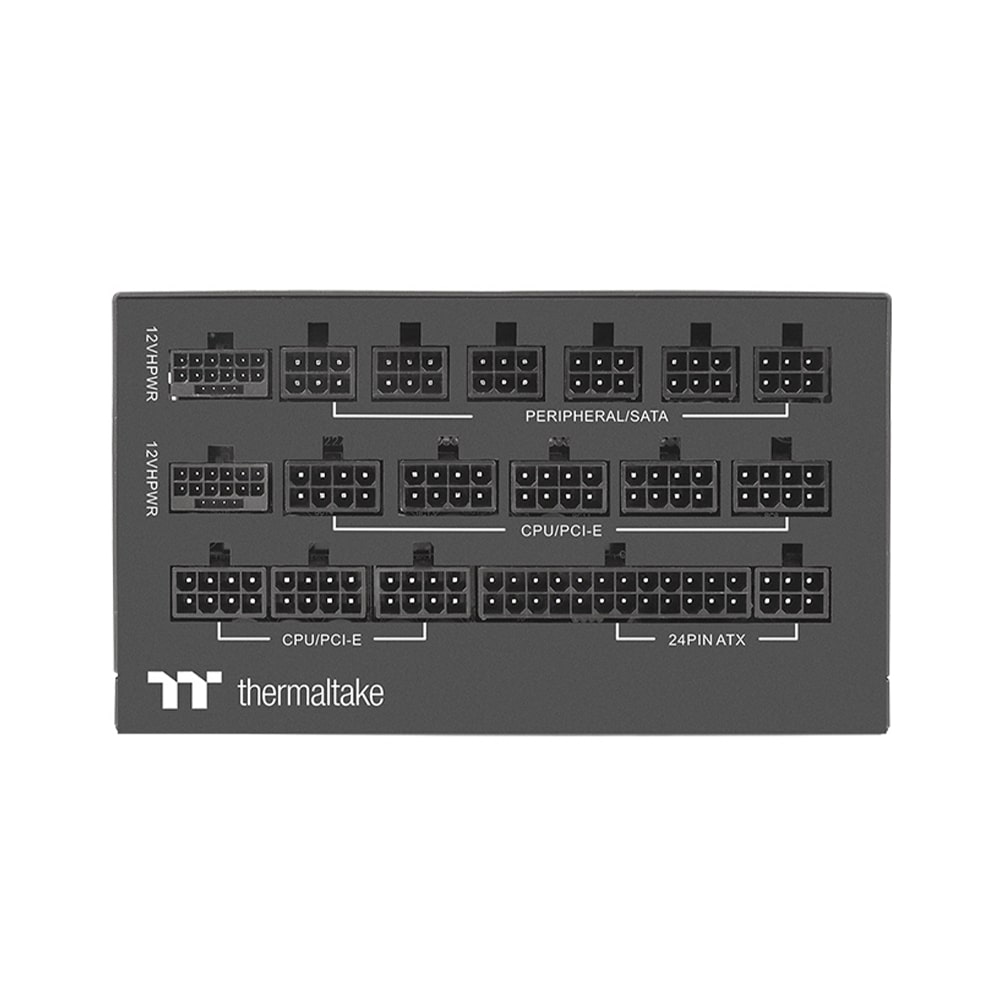

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
100% High Quality Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

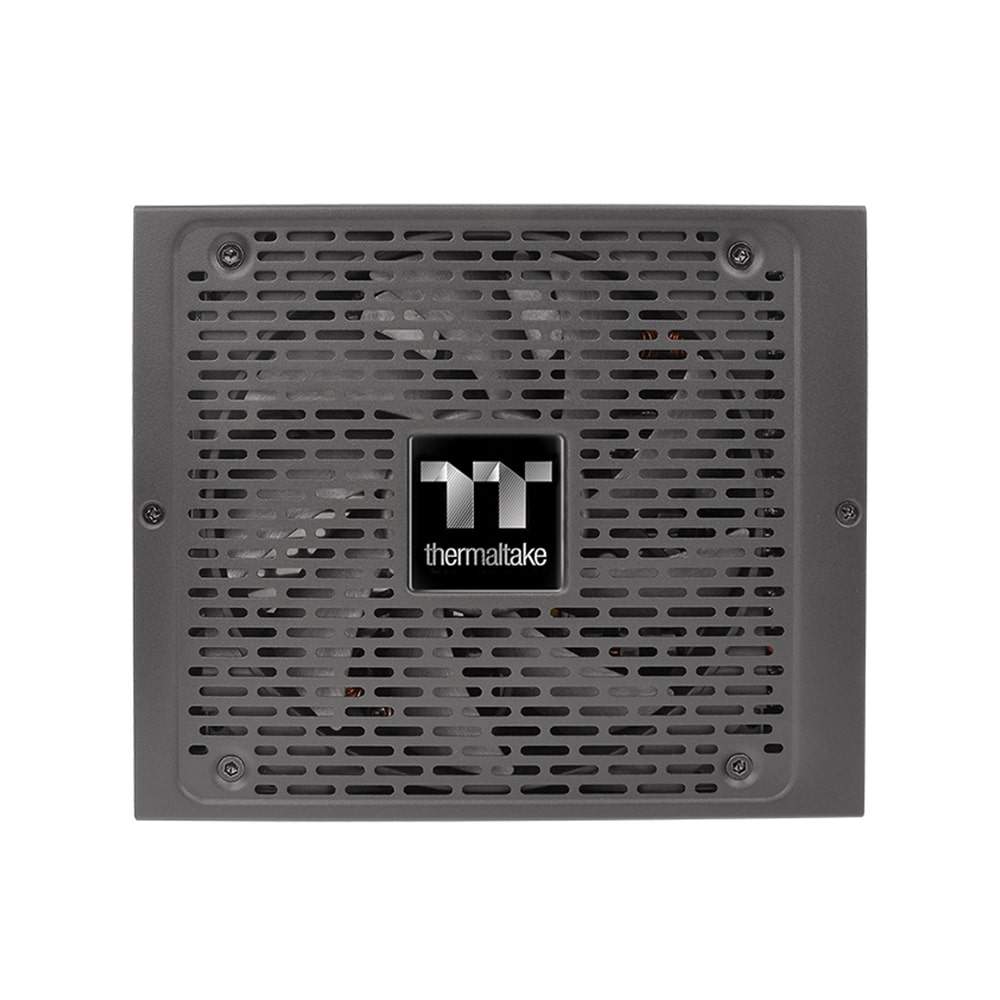

140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan to guarantee superior cooling performance.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
CYBENETICS – EFFICIENCY LEVEL CERTIFICATION – PLATINUM
Toughpower GF3 1650W is certified to CYBENETICS PLATINUM in 115V and 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥89% to ＜91% of 115V input and 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).
Specifications :
| WATTS | 1650W |
| MODEL | TPD-1650AH3FSG |
| MAX. OUTPUT CAPACITY | 1650W |
| COLOR | Black |
| DIMENSION (W / H / D) | 150mm(W) x 86mm(H) x 180mm(D) |
| WEIGHT | 2.14 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| INPUT CURRENT | 20 – 16A |
| INPUT FREQUENCY RANGE | 50-60Hz |
| INPUT VOLTAGE | 100 – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 50°C |
| OPERATING HUMIDITY | 20% to 90%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 20% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC |
| PCI-E 6+2PIN | 9 |
| PCIE 12+4PIN | 2 |
| Warranty | 10 Years |
