Thermaltake H570 TG ARGB White Mid Tower Chassis :
Thermaltake H570 TG ARGB White Gaming Cabinet comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, and can support up to E-ATX (12″ x 13″) Motherboards.
H570 TG ARGB Mid-Tower Chassis
Thermaltake H570 TG ARGB White Gaming Cabinet is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the Thermaltake H570 TG ARGB White Gaming Cabinet.

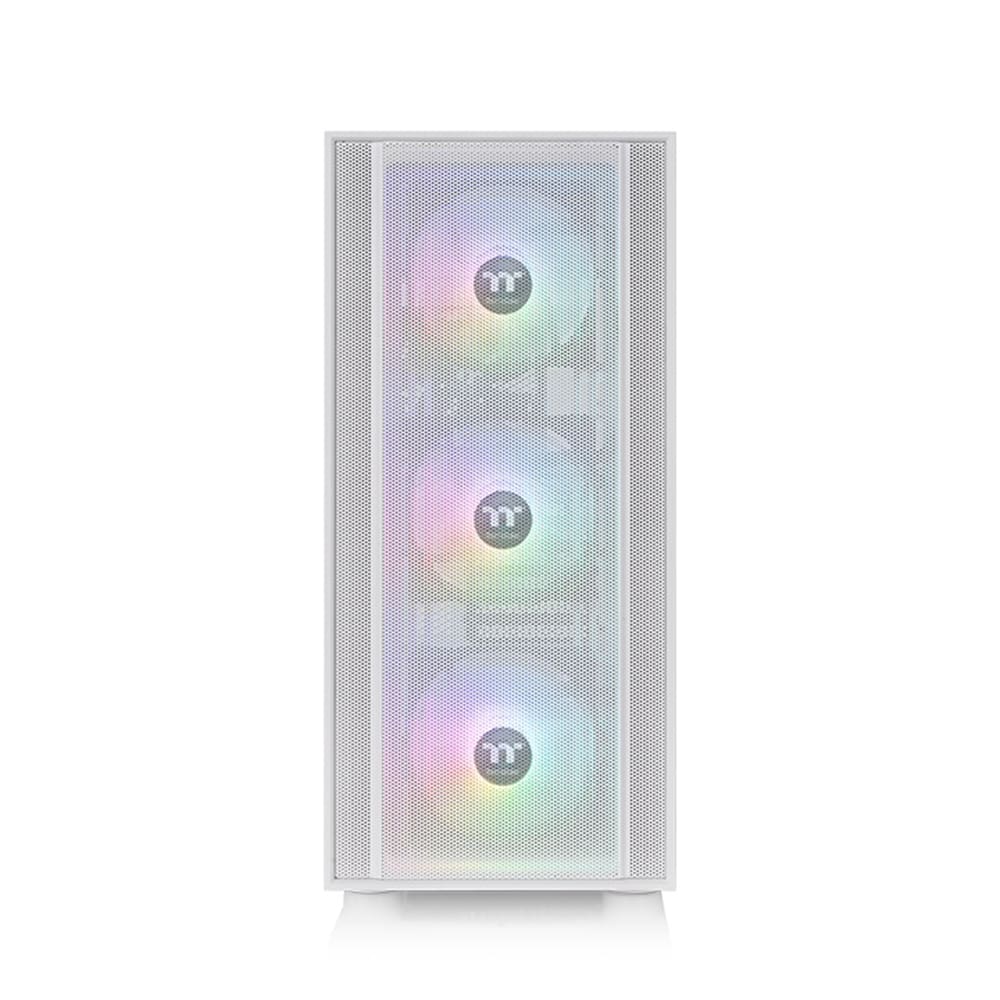

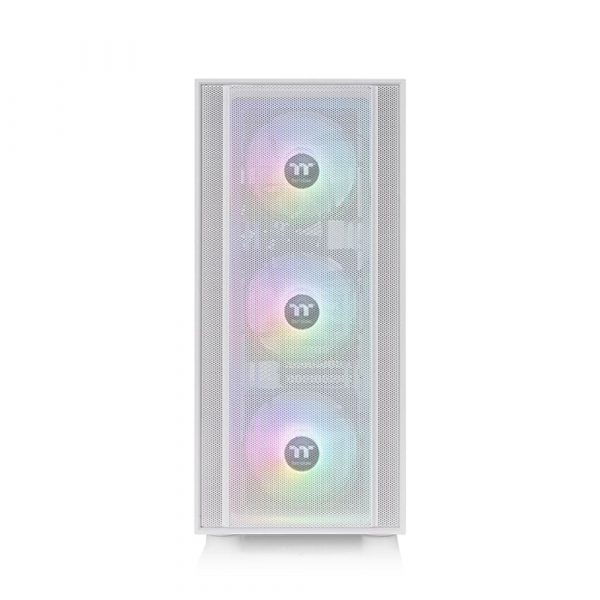

Mesh Front Panel
Thermaltake H570 TG ARGB White Gaming Cabinet comes with a large airflow-optimized mesh panel at the front for massive airflow performance.

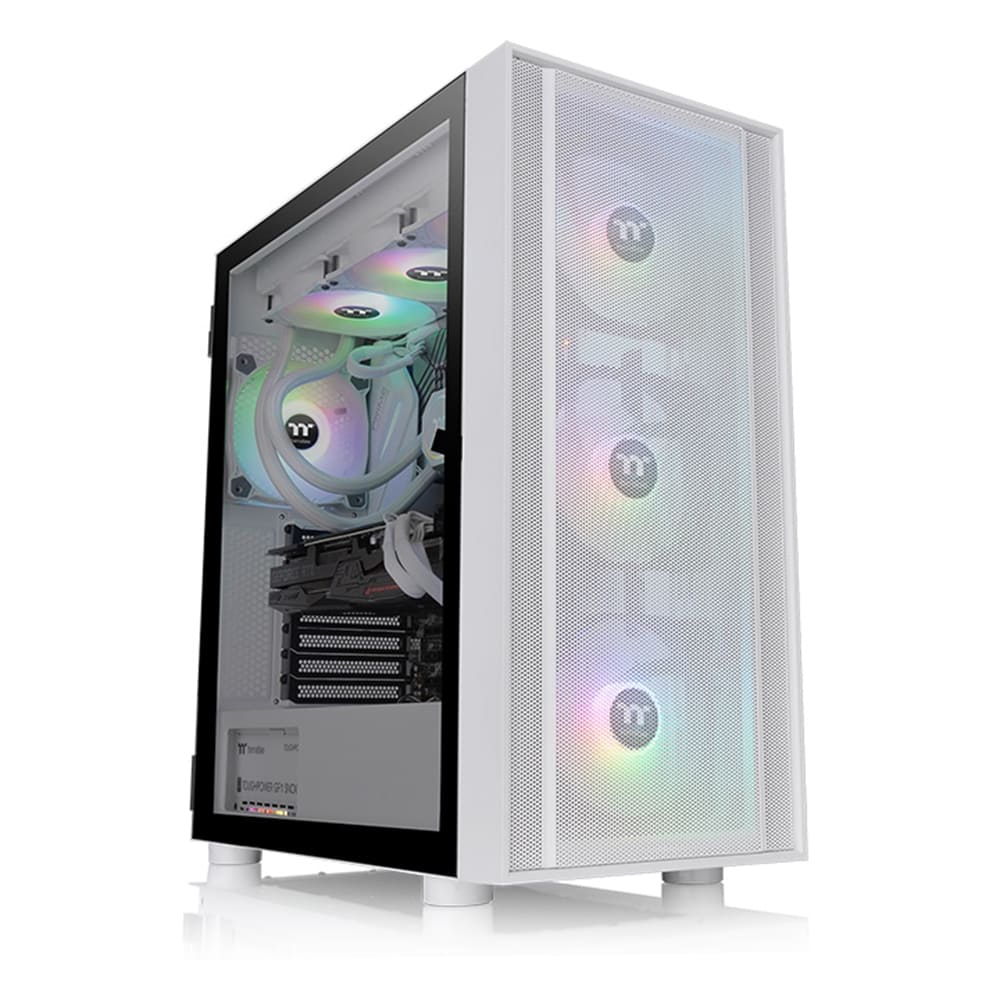

Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans
Thermaltake H570 TG ARGB White Gaming Cabinet comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
Thermaltake H570 TG ARGB White Gaming Cabinet features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

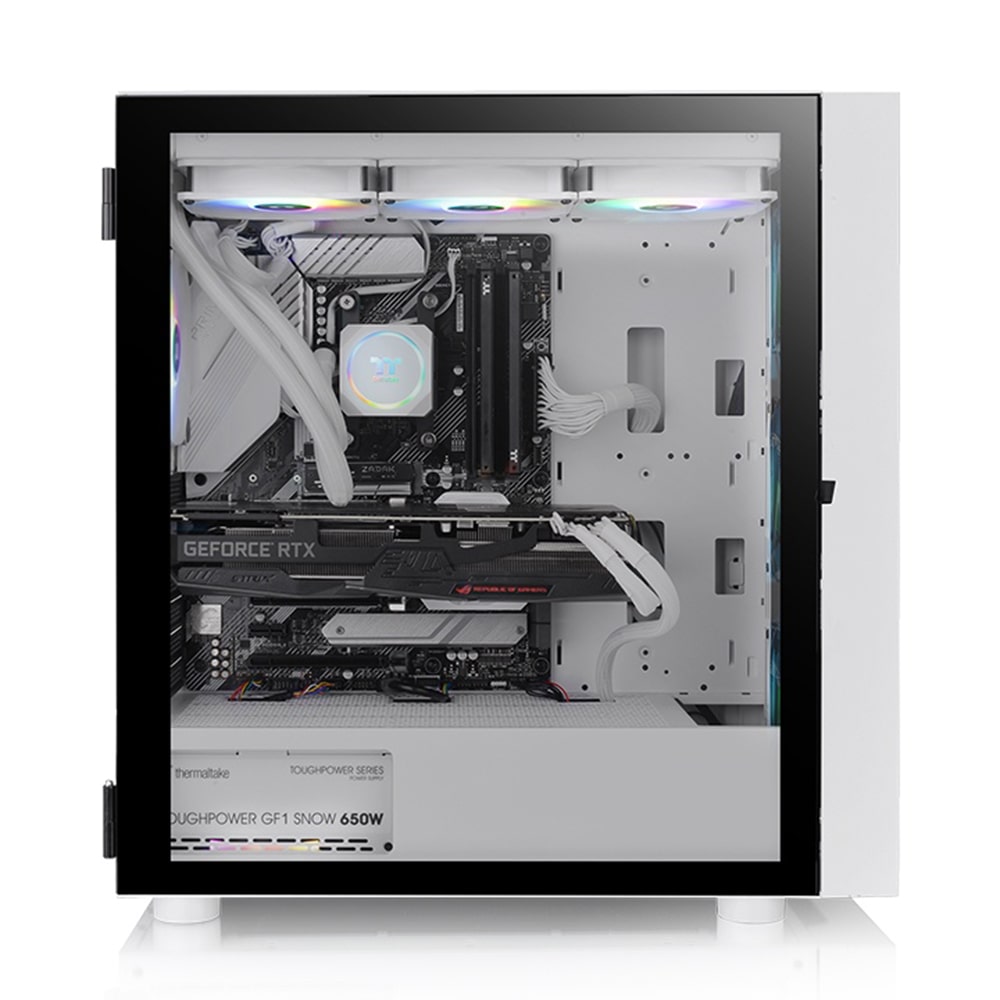

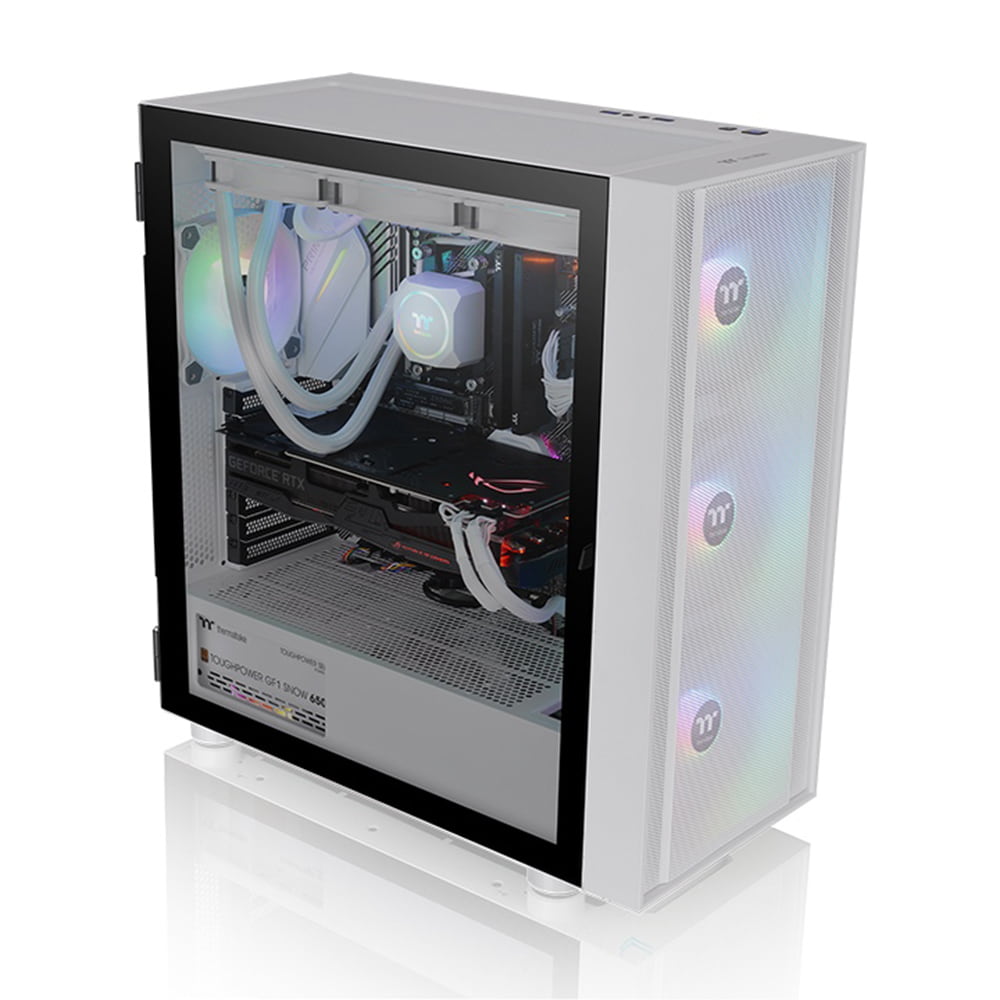

Hinged Tempered Glass Panel
Thermaltake H570 TG ARGB White Gaming Cabinet comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.
Opportunities For High-End Expansion
Thermaltake H570 TG ARGB White Gaming Cabinet has good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement of up to 375mm in length, a power supply with a length of up to 180 mm (without HDD Rack). Optimized for excellent cooling capability, the case comes with three hydraulic bearing 120mm ARGB Lite fans pre-installed at the front; you can also choose to put two 140mm fans at the front and on top, or even two 200mm fan at the front will fit. For radiator compatibility, it can support up to 360mm at the front and on top, giving more opportunities for high-end expansion!
Handy I/O Ports
Two USB 3.0 ports, and one HD Audio are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
|MODEL||H570 TG ARGB|
|CASE TYPE||Mid Tower|
|DIMENSION (H X W X D)||487 x 216 x 463.6 mm|
(19.2 x 8.5 x 18.3 inch)
|NET WEIGHT||7.5 kg / 16.5 lbs.|
|PANEL||4mm Tempered Glass x 1|
|COOLING SYSTEM||Front(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3|
|DRIVE BAYS||2 x 3.5”, 2 x 2.5” or 4 x 2.5”|
|MOTHERBOARDS||6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)|
|I/O PORT||USB 3.0 x 2, HD Audio x 1|
|PSU||Standard PS2 PSU (optional)|
|FAN SUPPORT||Front: 3 x 120mm, 2 x 120mm, 1 x 120mm|
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear: 1 x 120mm
|RADIATOR SUPPORT||Front: 1 x 360mm, 1 x 240mm, 1 x 120mm|
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear: 1 x 120mm
|CLEARANCE||CPU cooler height limitation: 160mm|
VGA length limitation: 375mm
PSU length limitation: 180mm
