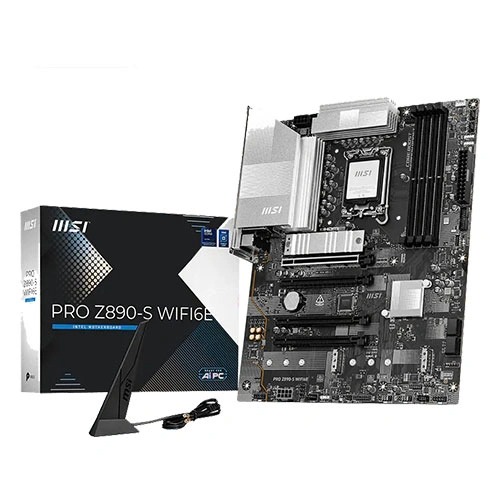

MSI Pro Z890-S WIFI ATX Motherboard (Intel Socket LGA 1851, DDR5, WIFI 6E)
Feature:
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Clip II, EZ Conn-Design and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- 2.5G LAN with Wi-Fi 6E Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
MSI Pro Z890-S WIFI 6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, Wi-Fi 6E with EZ Antenna, 2.5G LAN, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.
The MSI Pro Z890-S WIFI PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI Pro Z890-S WIFI PRO Series to assist you with multitasking and increasing efficiency.
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, MSI Pro Z890-S WIFI 6E is ready for the challenge of high-end processors.
PCB DESIGN
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
Specification:
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 8800 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM The DIMM slots on this motherboard have double-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI USB 20Gbps Type-C USB 5Gbps Type-A |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
