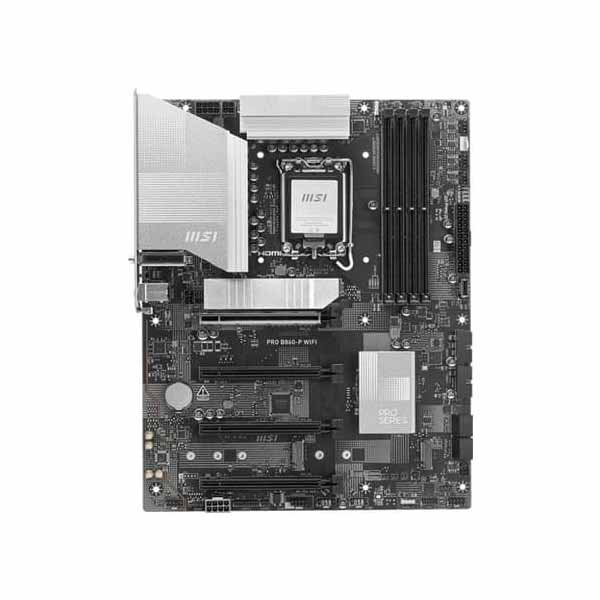

MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI PRO B860‑P WiFi is an ATX motherboard based on Intel’s B860 chipset and LGA 1851 socket. MSI Pro B860-P WiFi Built for Intel Core Ultra (14th Gen) processors, MSI Pro B860-P WiFi offers top-tier features: DDR5 memory support up to 8800+ MT/s (OC), a PCIe 5.0 x16 Steel Armor slot, Gen5 M.2 storage, Thunderbolt 4, Wi‑Fi 7/Bluetooth 5.4, and 5 Gb Ethernet. MSI Pro B860-P WiFi With a robust 12+1+1+1 Duet Rail VRM, extended heatsinks, and user-focused DIY design, MSI Pro B860-P WiFi an ideal platform for productivity and compact creator builds.
Features :
Supports Intel Core Ultra (LGA 1851) CPUs
DDR5 dual-channel memory overclocking to 8800+ MT/s (OC), up to 256 GB
12+1+1+1 Duet Rail VRM with dual 8‑pin + supplemental power
PCIe 5.0 x16 Steel Armor GPU slot for next-gen graphics cards
Triple M.2 slots: 1× Gen5 x4, 1× Gen4 x4, 1× Gen4 x2 — all with Shield Frozr II cooling
5 Gb Ethernet (Realtek) for ultra-fast wired networking
Wi‑Fi 7 & Bluetooth 5.4 via M.2 Key-E module
Thunderbolt 4 Type‑C port with 40 Gb/s and 8K display support

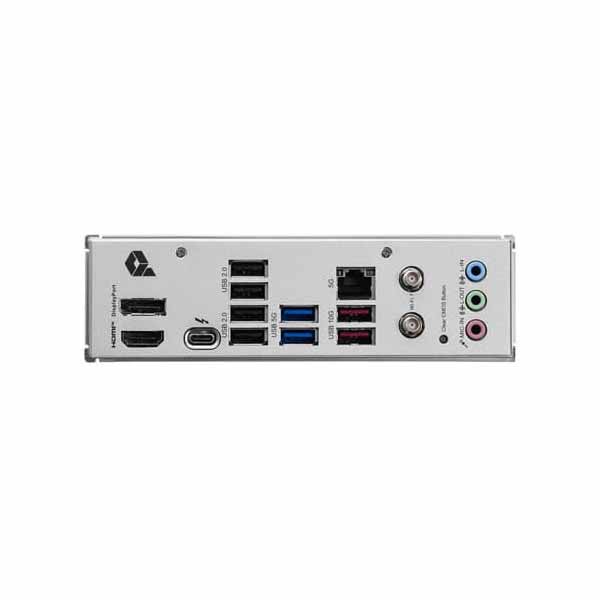

Rear I/O includes HDMI 2.1, DisplayPort 1.4, USB 10 Gb/s Type-A, and multi-speed USB ports
Audio: 7.1-channel Realtek HD with Audio Boost
Cooling backbone: extended heatsinks, 7 W/mK pads, and 6-layer 2 oz copper PCB
DIY features: EZ PCIe/M.2 Clips II, EZ M.2 Shield Frozr II, Flash BIOS Button, Clear CMOS
Specifications :
| Model | MSI PRO B860‑P WiFi |
| Form Factor | ATX (305 × 244 mm) |
| Chipset / Socket | Intel B860 / LGA 1851 |
| CPU Support | Intel Core Ultra (14th Gen and newer) |
| Memory | 4× DDR5 DIMM; up to 8800+ MT/s (OC); 256 GB max |
| VRM Design | 12+1+1+1 Phase Duet Rail with supplemental power |
| PCIe Slots | 1× PCIe 5.0 x16 (Steel Armor), 1× PCIe 4.0 x16, 2× PCIe x1 |
| M.2 Slots | 1× Gen5 x4, 1× Gen4 x4, 1× Gen4 x2 (all Shield Frozr II) |
| SATA Ports | 4× SATA 6 Gb/s (RAID 0/1/5/10) |
| LAN | Realtek 5 Gb Ethernet |
| Wireless | Wi‑Fi 7 (802.11be) & Bluetooth 5.4 via M.2 |
| Rear I/O USB | 1× Thunderbolt 4 Type-C, 1× 10 Gb/s USB-A, 2× USB‑C, 2× USB 5 Gb/s, 2× USB 2.0 |
| Front USB Headers | 1× USB-C 10 Gb/s, 2× USB 5 Gb/s, 2× USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio | Realtek ALC897, 7.1 HD Audio with Audio Boost |
| Cooling & Build | Extended heatsinks, 7 W/mK MOSFET pads, 6-layer 2 oz PCB |
| DIY Features | EZ PCIe / M.2 Clips II, Flash BIOS, Clear CMOS |
| Warranty | 3 Years |
