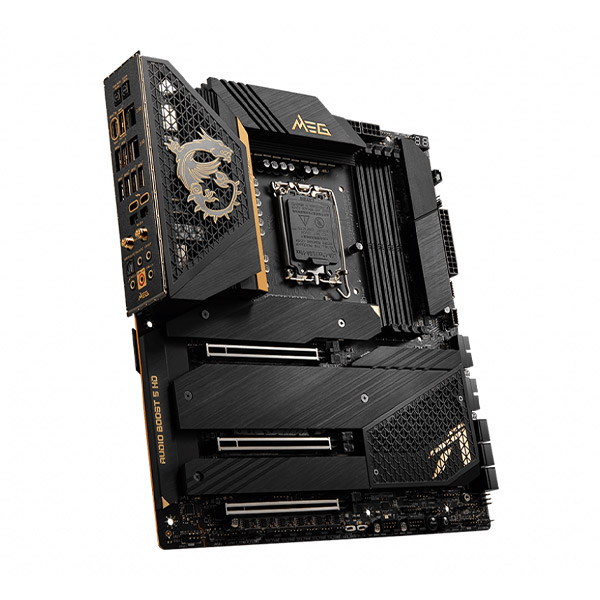

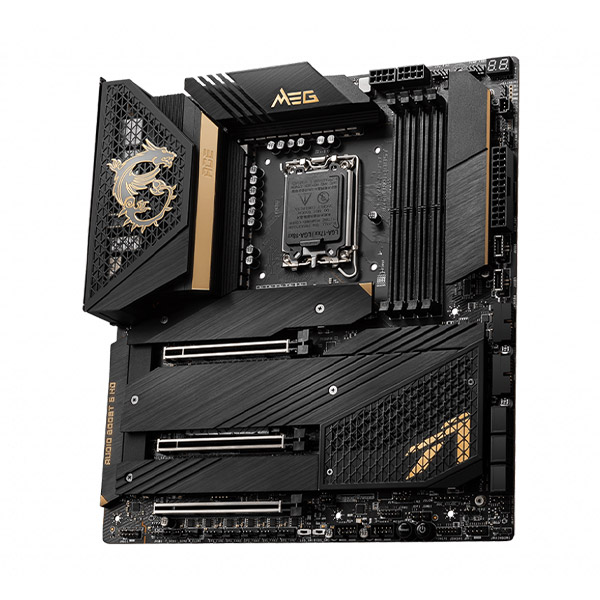

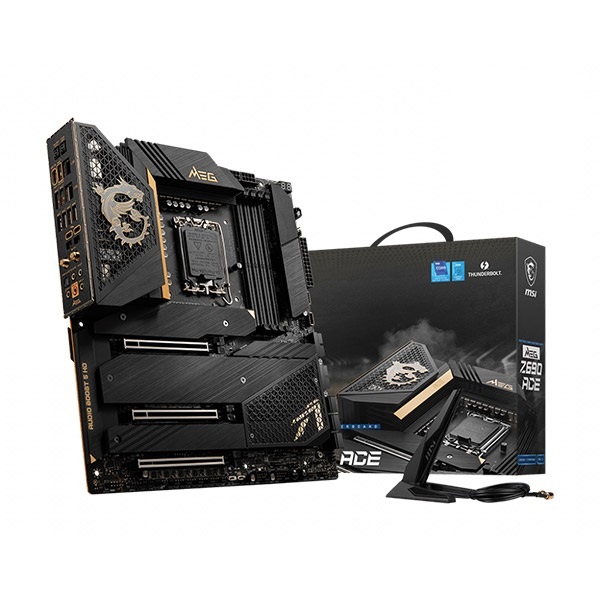

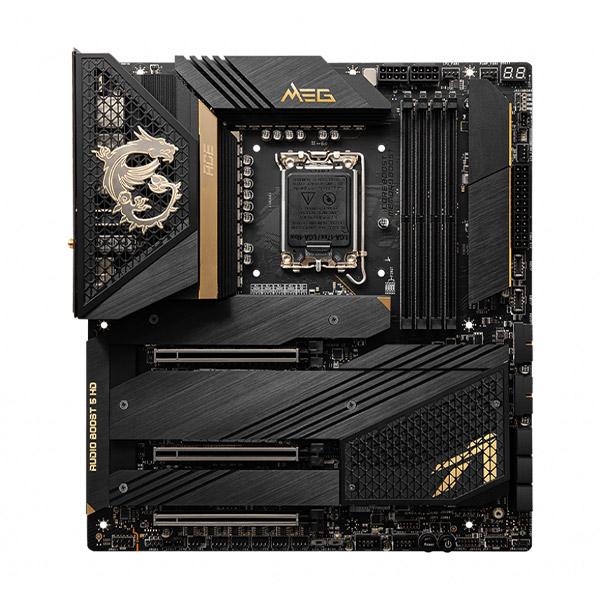

MSI MEG Z690 Ace WiFi INTEL 12TH GENERATION Z690 ATX LGA 1700 Socket DDR5 RAM and PCIE 5 Support Gaming Motherboard
Overview :
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- Genuine 24K Gold: Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: Premium digital PWM, direct 19+1+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chaining and Multi-Port
Accessory Architecture.
Direct 19+1+2 Phases Power Design
Extreme direct power solution with 19+1+2 phases and 105A
Smart Power Stage unleash the maximum CPU performance.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quintuple M.2 Connectors
Onboard 5x M.2 connectors with quad PCIe 4.0 solution,
strengthened by double-sided M.2 Shield Frozr.
Outstanding Cooling Solution
Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Doublesided M.2 Shield Frozr and Aluminum Backplate ensure the
extreme performance with low temp.
Dual Front Lightning USB 20G
USB 3.2 Gen 2×2 port offers 20Gbps transmission speed, 4x faster
then USB 3.2 Gen 1, available when connecting the front USB
Type-C.
Dual 2.5G LAN
Onboard dual 2.5Gbps LAN with LAN manager provides incredible
data transfer speed faster than general Gigabit LAN, delivering
the best online gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
SMT PCIE and Memory Slot
The advanced SMT(Surface Mount Technology) welding process
reduces the defect rate of slot solder joints, deliver the clean and
pure signal.
8 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise in MSI MEG Z690 Ace WiFi
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR5 MEMORY | 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| SATAIII | 6 |
| M.2 SLOT | 5 |
| RAID | 0/1/5/10 |
| LAN | 2x Intel® I225V 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E module |

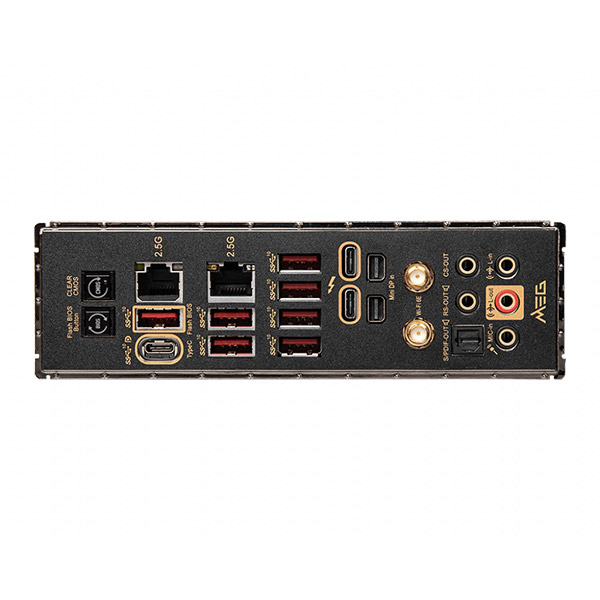

| THUNDERBOLT 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.2 PORTS (FRONT) | 2(Gen2x2, Type C), 4(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 7(Gen2, Type A), 1(Gen2, Type C) |
| USB 2.0 PORTS (FRONT) | 4 |
| DIMENSION | 12 in. x 10.9 in. (30.5 cm x 27.7 cm) |
| AUDIO PORTS (REAR) | 7.1-Channel High Definition Audio+ Optical S/PDIF (Realtek® ALC4082 Codec) |
| DIRECTX | 12 |
| FORM FACTOR | E-ATX |
| SLI | Y |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
