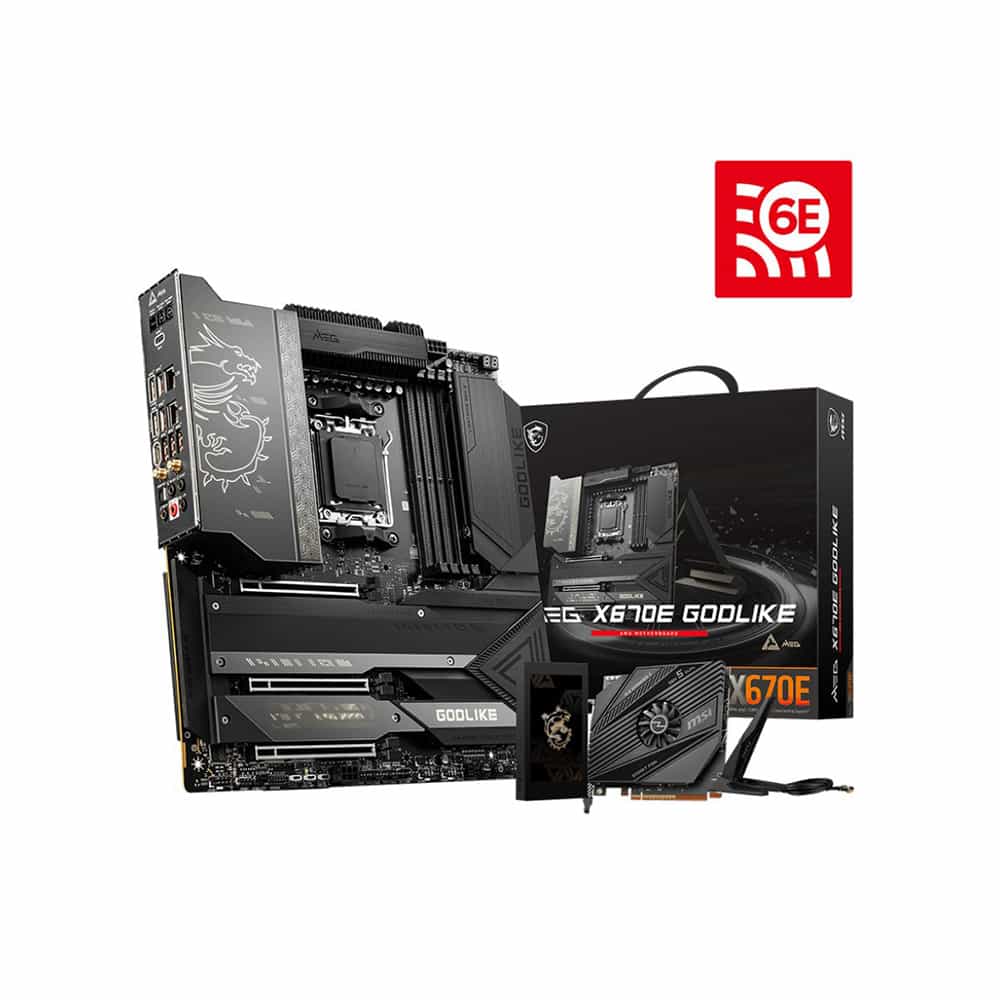

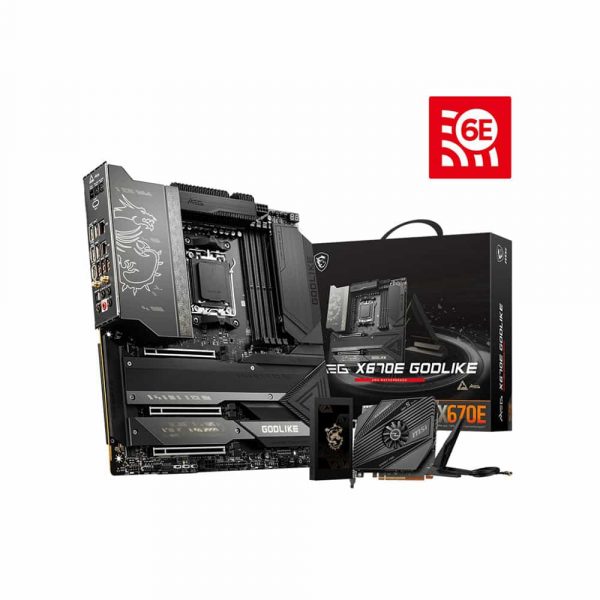

MSI MEG X670E Godlike WiFi DDR5 Motherboard :
Features :
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+MHz (OC)
- M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Extreme Power Design: 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery.
- DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Overview :

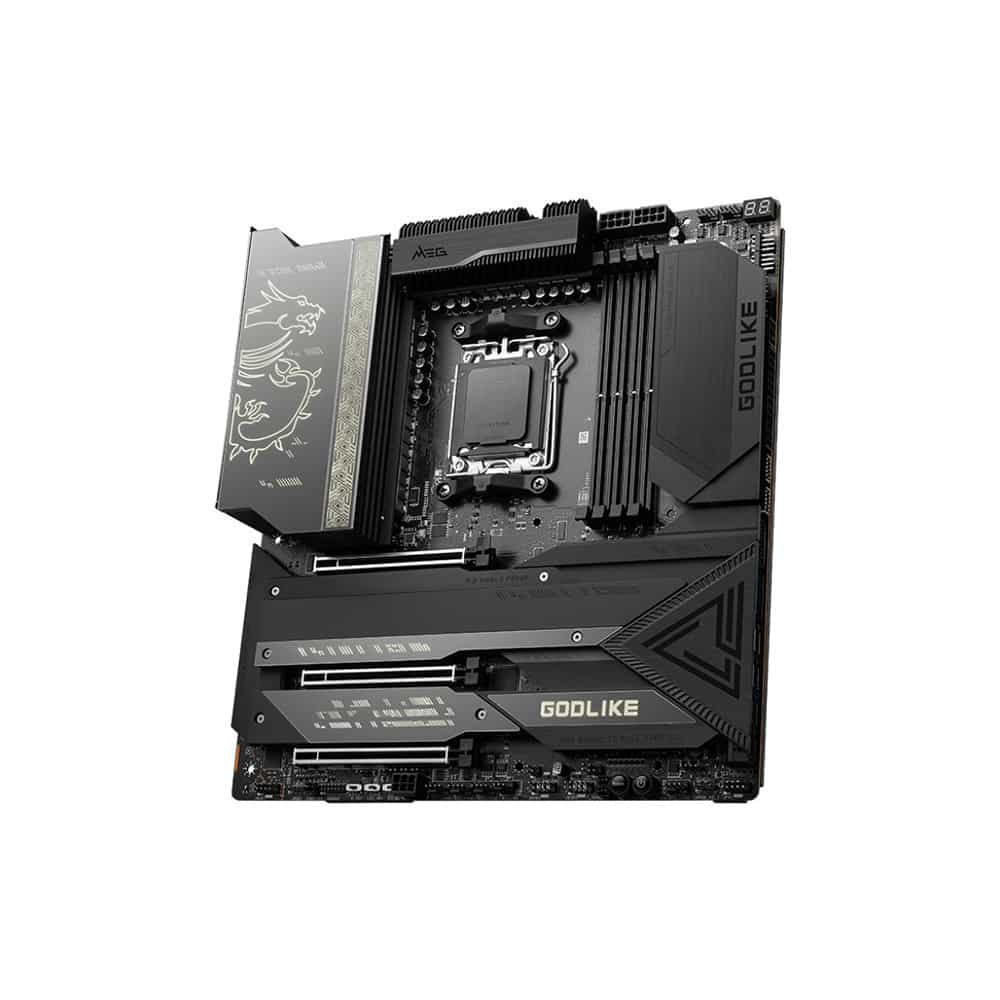

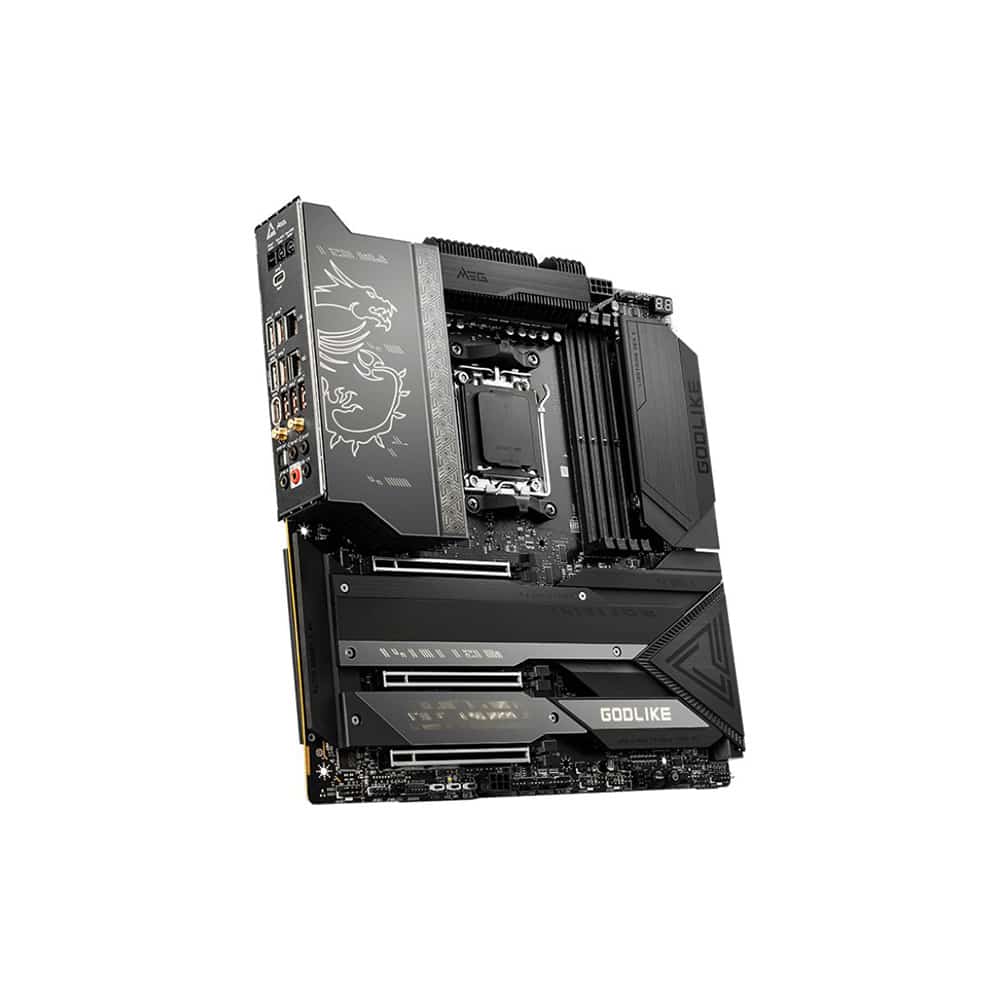

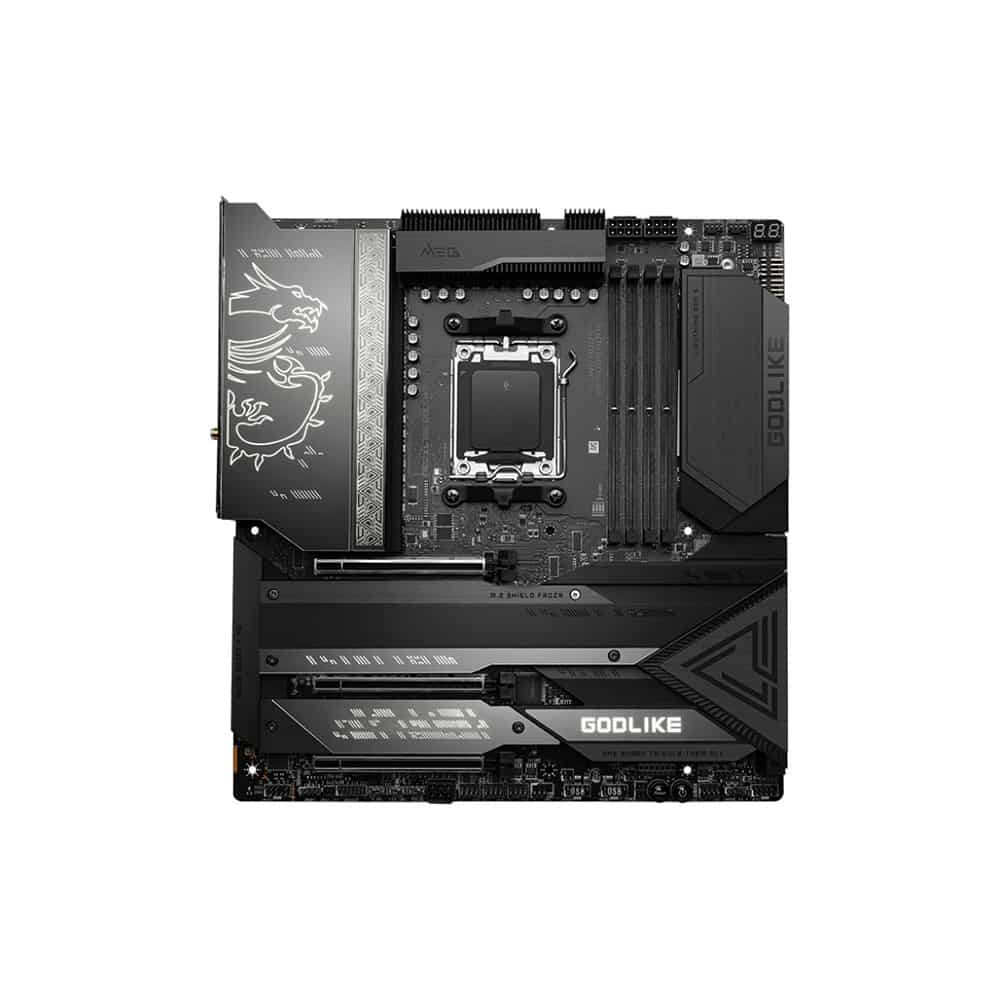

MSI MEG X670E Godlike WiFi DDR5 Motherboard
The MSI MEG X670E Godlike WiFi DDR5 Motherboard is designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry’s first M-Vision Dashboard, the MSI MEG X670E Godlike WiFi DDR5 Motherboard is developed to unleash the extreme gaming potential of the AMD X670 chipset and is ready to rule the tournament once again .All you need is MSI MEG X670E Godlike WiFi DDR5 Motherboard.
LATEST DDR5 MEMORY
Take a huge step of DDR performance upgrade with the latest DDR5 memory in MSI MEG X670E Godlike WiFi DDR5 Motherboard. Combining the dedicated SMT welding process and with MSI memory boost technology, the MSI MEG X670E Godlike WiFi DDR5 Motherboard is ready to deliver world-class memory performance.
LIGHTNING GEN 5
The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation all in MSI MEG X670E Godlike WiFi DDR5 Motherboard. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise with MSI MEG X670E Godlike WiFi DDR5 Motherboard.
M.2 Design
Exclusive PCI-Express card offers two extra PCI-e 5.0 M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking. All in MSI MEG X670E Godlike WiFi DDR5 Motherboard. Maximum 6x M.2 connectors unleash the extreme storage performance.
LATEST CONNECTIVITY
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag. The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. Stay updated with MSI MEG X670E Godlike WiFi DDR5 Motherboard.
M-VISION DASHBOARD
The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control. All you need is MSI MEG X670E Godlike WiFi DDR5 Motherboard.
System Operation
- Main page
- System Tuning
- Power Off
- Restart
System Info
- Hardware Monitor
- CPU Overheat Warning
- Detect Hardware Status
- Flash BIOS State
Tools
- Live Weather
- System Clock
- Countdown Timer
- Media Controller
- Hot Key Customization
ONE BOARD TO RULE THEM ALL
- Aluminum Backplate
- Latest DDR5 Memory
- Pre-installed IO Shield
- 10 Layers Server Grade with 2oz Copper PCB
- Front USB 20G Type-C with 60W PD
- Smart Button
- Audio Boost 5 HD
- MSI Center
Specifications:
| Model | MSI MEG X670E Godlike WiFi DDR5 |
| CHIPSET | AMD X670 |
| CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| SLOT | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) |
| MULTI-GPU | AMD MULTI-GPU Support |
| STORAGE | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 2x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Marvell® AQC113CS-B1-C 10Gbps LAN Intel® I225V 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 |
| AUDIO | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2×2 Type C ports V-check point |
| LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

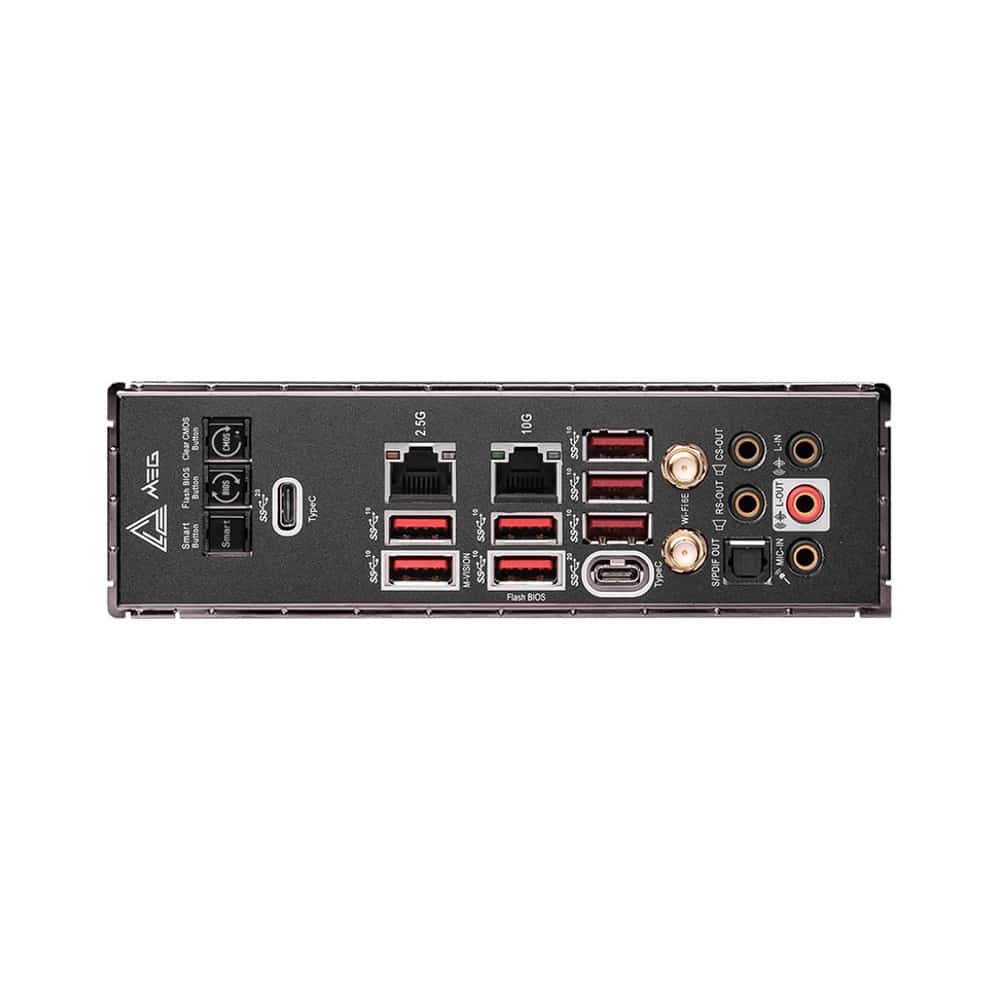

| BACK PANEL PORTS | Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) Optical S/PDIF-Out |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | E-ATX 288mmx304.8mm |
| Warranty | 3 Years |
