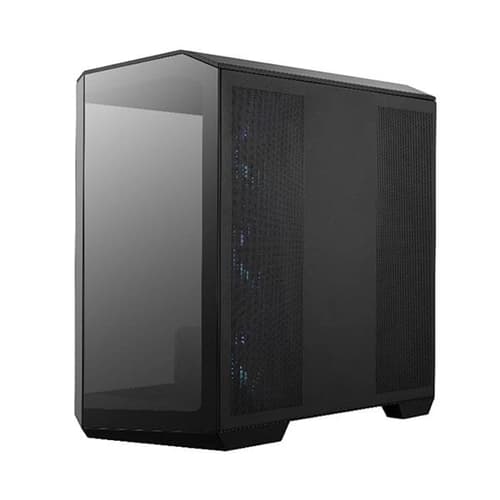

MSI MAG PANO M100R PZ Mini Tower Cabinet ATX Support, Front & Side Mesh Panel, USB Type C, Up To 360 mm Radiator Support
Overview:
The MAG PANO M100R PZ by MSI is a stunning Micro‑ATX tower that blends panoramic tempered‑glass aesthetics with powerful airflow and user‑friendly design. Engineered for MSI MAG PANO M100R PZ Project Zero back‑connect motherboards, it delivers a clean, hassle‑free build experience. MSI MAG PANO M100R PZ With a wrap‑around 270° tempered‑glass window, MSI MAG PANO M100R PZ integrated ARGB lighting, USB‑C 20 Gbps front I/O, and support for high‑end cooling solutions, this case is ideal for gamers and creators seeking both style and function.MSI MAG PANO M100R PZ
Key Features:

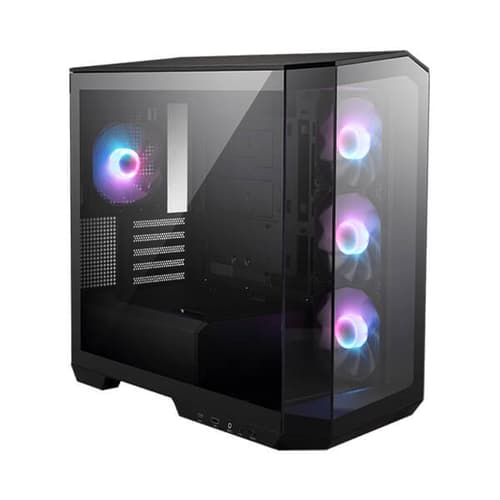

270° Panoramic Tempered Glass – Offers a nearly wrap‑around view of your build from the front and side
Project Zero Back‑Connect Support – Optimized for Micro‑ATX/Mini‑ITX boards with reversed connectors for neat cable management.

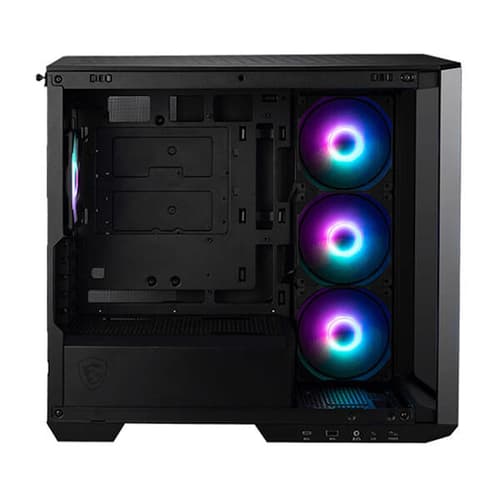

ARGB Reverse‑Blade Fans (4 Total) – Includes three side-intake and one rear exhaust fan, all connected to a 1‑to‑4 ARGB‑PWM hub with Insta‑Light Loop control
Extensive Cooling Options – Supports up to ten fans and 360 mm radiators (top, rear) for robust thermal performance
Tool‑Free Maintenance – Magnetic bottom dust filter and easy‑remove panels on top and sides enhance convenience
Integrated GPU Support Stand – Adjustable support bracket prevents GPU sag, visible through panoramic glass
Premium I/O Panel – Side I/O with 1× USB‑C (USB 3.2 Gen 2×2), 1× USB‑A, 3.5 mm audio, LED/fan control, and power button.
Cable Management & PSU Shroud Fan Support – 33 mm clearance with Velcro straps plus two bottom PSU‑shroud fan mounts enhance build tidiness
Specifications Table:
| Category | Specification |
|---|---|
| Form Factor | Micro‑ATX tower (supports Mini‑ITX) |
| Dimensions (DxWxH) | 440 × 235 × 405 mm (17.3″ × 9.25″ × 15.94″) |
| Weight (Net/Gross) | 8.66 kg / ~11.3 kg |
| Motherboard Support | Micro‑ATX (back‑connect), Mini‑ITX |
| Drive Bays | 1× 2.5″ + combo 2.5″/3.5″ (up to 2× 2.5″ or 1× of each) |
| Expansion Slots | 5 full‑height |
| GPU Max Length | 390 mm (horizontal only) |
| CPU Cooler Height | Up to 175 mm |
| PSU Max Length | 200 mm |
| Fan Support | Top: 3×120 mm / 2×140 mm + 360 mm radiator Side: 3×120 mm Rear: 1×120/140 mm Bottom: 1×120 mm PSU shroud: 2×120 mm |
| Pre‑Installed Fans | 3× 120 mm ARGB reverse‑blade (side), 1× 120 mm ARGB (rear) |
| Radiator Support | Top: 120/240/360 mm Rear: 120/140 mm |
| Front I/O Ports | 1× USB‑C 3.2 Gen 2×2 (20 Gbps), 1× USB‑A 3.2 Gen 1, 1× audio, LED/fan button, power |
| Features | 270° tempered glass, ARGB lighting hub, GPU stand, magnetic dust filters, tool‑free panels |
| Color Options | Black and White variants |
| Warranty | 2 years |
