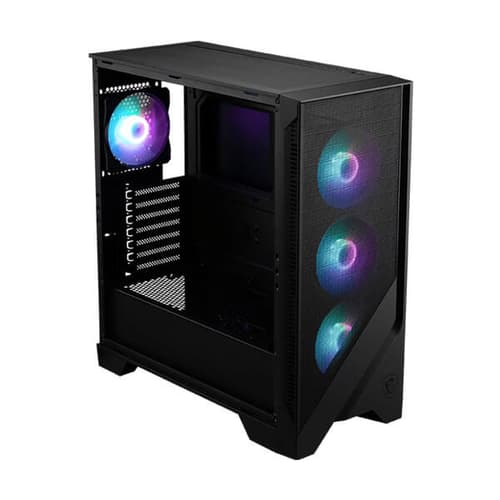

MSI MAG FORGE 320R AIRFLOW Mid Tower Cabinet, ATX Support, USB Type C, Up To 360 mm Radiator Support
Overview:
The MSI MAG FORGE 320R AIRFLOW is a powerful and visually striking ATX mid-tower PC case designed for gamers and PC enthusiasts who prioritize thermal performance and clean aesthetics. With a fully meshed front panel, tool-less tempered glass side panel, and support for up to 360mm radiators, it’s engineered for superior airflow and high-end hardware compatibility. MAG FORGE 320R AIRFLOW This chassis is pre-installed with ARGB fans that sync with MSI Mystic Light, making it perfect for RGB-centric builds without compromising on cooling efficiency or expansion space MAG FORGE 320R AIRFLOW
Key Features:

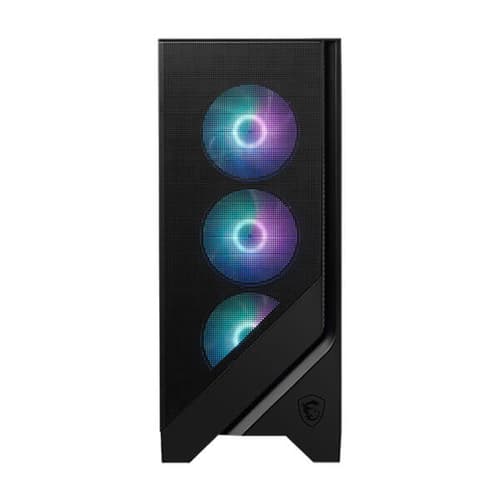

High-Airflow Design – Fully mesh front panel and multiple fan support.

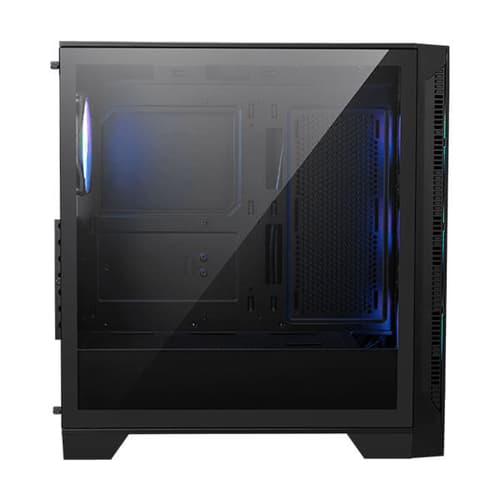

Tempered Glass Side Panel – Tool-less and perfect for showcasing RGB builds.
360mm Radiator Support – Front and top support for high-performance liquid cooling.
ARGB Fan System – Includes pre-installed ARGB fans, Mystic Light compatible.
USB 3.2 Gen 2 Type-C – Fast connectivity on the front I/O panel.
Vertical GPU Mounting Support – Enables advanced GPU display orientation.
Cable Management Friendly – Dedicated routing channels and tie-down points.
Spacious Interior – Fits large GPUs, multiple storage drives, and tall CPU coolers.
Specification Table:
| Category | Details |
|---|---|
| Case Type | Mid Tower |
| Color | Black |
| Materials | Steel, Tempered Glass, Plastic |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Side Panel | Tool-less 4mm Tempered Glass |
| Front Panel | Full Mesh Design with Magnetic Dust Filter |
| Expansion Slots | 7 Standard + Vertical GPU Mount Ready |
| Drive Bays | 2 × 3.5″ HDD, 2 × 2.5″ SSD (with additional mounting positions) |
| GPU Clearance | Up to 350 mm |
| CPU Cooler Clearance | Up to 170 mm |
| PSU Clearance | Up to 180 mm |
| Pre-installed Fans | 3 × 120mm ARGB Fans (Front), 1 × 120mm ARGB Fan (Rear) |
| Fan Support | Front: 3 × 120mm / 2 × 140mm Top: 2 × 120mm / 2 × 140mm Rear: 1 × 120mm |
| Radiator Support | Front: Up to 360mm Top: Up to 240mm Rear: Up to 120mm |
| Dust Filters | Magnetic (Top, Front, Bottom) |
| Front I/O Ports | 1 × USB 3.2 Gen 2 Type-C 2 × USB 3.2 Gen 1 Type-A Audio Jacks Power/Reset |
| Dimensions (L × W × H) | Approx. 420 × 210 × 499 mm |
| Net Weight | Approx. 6.7 kg |
| Lighting Support | Mystic Light Sync (ARGB) |
| Warranty | 2 Years (Manufacturer) |
