MSI MAG B860M Mortar WiFi DDR5 Intel LGA 1851 M-ATX WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :

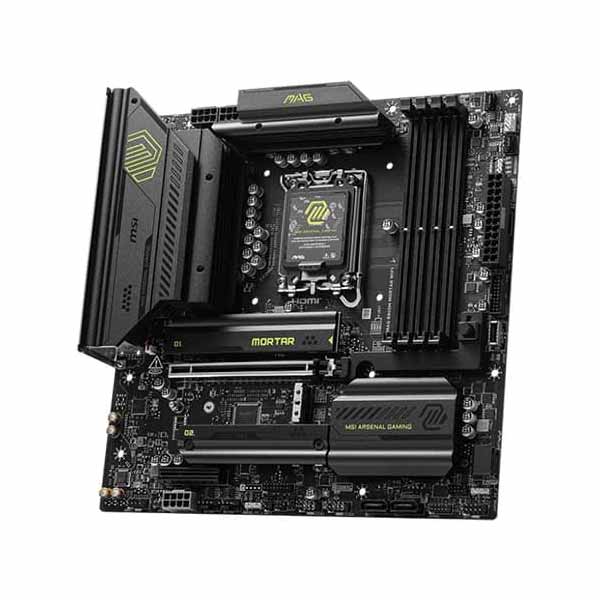

The MSI MAG B860M Mortar WiFi is a high-performance micro-ATX motherboard built for Intel’s 14th Gen Core Ultra processors with the latest LGA 1851 socket. It supports blazing-fast DDR5 memory, next-gen PCIe 5.0 GPUs, and Gen5 M.2 storage. MSI MAG B860M Mortar WiFi With advanced features like Wi-Fi 7, 5G LAN, and a robust 12+1+1+1 VRM design, it’s ideal for gamers and creators building compact yet powerful systems.
Features :
Supports Intel Core Ultra processors on LGA 1851 socket
12+1+1+1 Duet Rail VRM with 60A DrMOS power stages
Supports DDR5 memory up to 9200+ MT/s (OC), max 256 GB
PCIe 5.0 x16 slot with Steel Armor for next-gen GPU support
Three M.2 slots (1× Gen5 x4, 2× Gen4 x4) with heatsinks
Built-in Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless
Intel 5 Gigabit LAN for ultra-fast wired networking
Thunderbolt 4 Type-C for 40Gbps and 8K display output
HDMI 2.1 and DisplayPort 1.4 for integrated graphics
Realtek ALC897 7.1-channel audio with Audio Boost
EZ Debug LED, Flash BIOS Button, and Clear CMOS support
Tool-less M.2 and PCIe slots with reinforced heatsinks
Extended heatsinks and 6-layer PCB for efficient cooling
Specifications :
| Model | MSI MAG B860M Mortar WiFi |
| Form Factor | Micro-ATX (244 x 244 mm) |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| CPU Support | Intel Core Ultra (14th Gen) |
| Memory Support | 4× DDR5 DIMMs, up to 9200+ MT/s (OC), 256 GB max |
| VRM Design | 12+1+1+1 Duet Rail with 60A DrMOS |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe x1 |
| M.2 Slots | 1× Gen5 x4, 2× Gen4 x4 (all with heatsinks) |
| SATA Ports | 4× SATA III 6Gb/s (RAID 0/1/5/10) |
| LAN | Intel 5 Gigabit Ethernet |
| Wireless | Wi-Fi 7 + Bluetooth 5.4 |

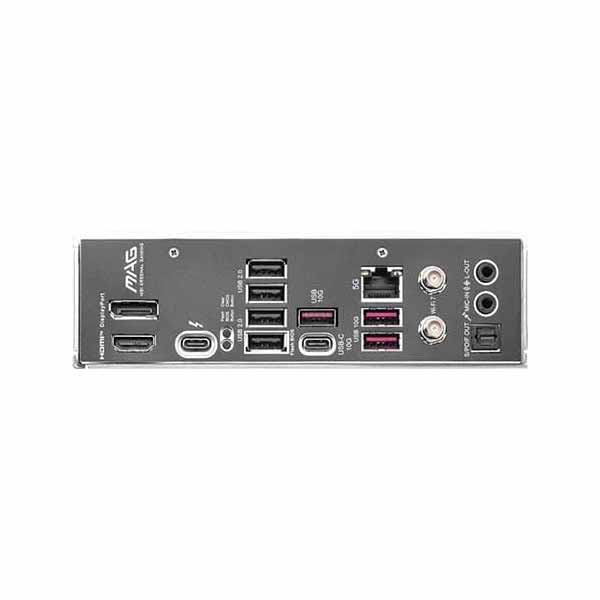

| Rear USB Ports | 1× Thunderbolt 4 Type-C, 1× USB 10Gbps, 2× USB 5Gbps, 2× USB 2.0 |
| Front USB Headers | 1× USB-C 10Gbps, 2× USB 5Gbps, 2× USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio | Realtek ALC897, 7.1 HD Audio with Audio Boost |
| Cooling | Extended heatsinks, 7W/mK pads, 6-layer PCB |
| Special Features | EZ Debug LED, Flash BIOS Button, Clear CMOS, Tool-less M.2 |
| Warranty | 3 Years |
