MSI MAG B850M Mortar WiFi DDR5 AMD AM5 M-ATX WiFi 7 PCIe 5.0 Gaming Motherboard-Supports Ryzen 7000 / 8000 / 9000 Series Processors :
Overview :

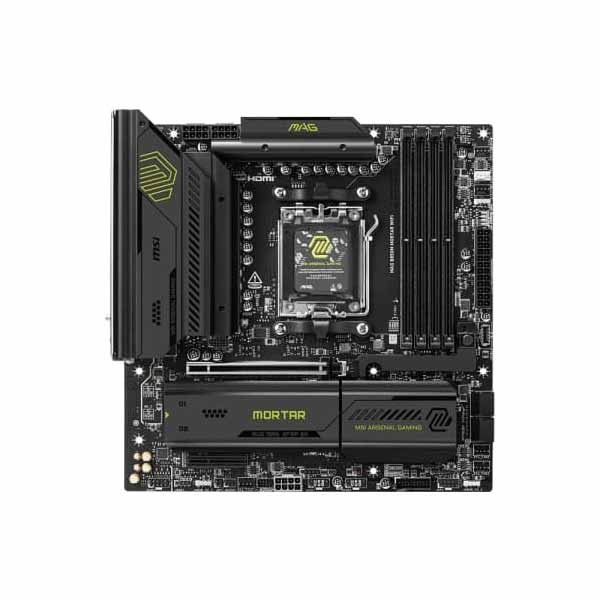

The MSI MAG B850M Mortar WiFi is a high-performance micro-ATX motherboard designed for AMD’s AM5 platform, compatible with Ryzen 7000, 8000, and 9000 series processors. MSI MAG B850M Mortar WiFi brings powerful gaming and productivity features into a compact form, including PCIe 5.0 GPU support, Gen5 M.2 storage, DDR5 memory overclocking to 8200+ MT/s, Wi-Fi 7, 5 Gigabit LAN, robust 12+2+1 VRM, and premium thermal design—ideal for efficient, powerful builds in mid-sized systems.
Features :
- Supports Ryzen 7000/8000/9000 series CPUs via AM5 socket
- DDR5 memory overclockable up to 8200+ MT/s (OC), max 256 GB
- 12+2+1 Duet Rail VRM with 60A power stages and dual 8-pin EPS
- PCIe 5.0 x16 Steel Armor slot for next-gen GPUs
- Dual M.2 slots: 1× Gen5 x4, 1× Gen4 x4, both with thermal shielding
- Built-in Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless
- Realtek 5 Gigabit LAN for ultra-fast wired connectivity
- USB 3.2 Gen2×2 Type-C and USB-A, along with Gen1 and USB 2.0 ports
- HDMI 2.1, DisplayPort 1.4 for integrated APU graphics output
- Realtek ALC897 7.1-channel HD audio with Audio Boost
- Extended heatsinks, thermal pads, and a 6-layer PCB for efficient cooling
- EZ Debug LEDs, Flash BIOS Button, and Clear CMOS support
- Multiple PWM and water-pump fan headers for versatile cooling
Specifications :
| Model | MSI MAG B850M Mortar WiFi |
| Form Factor | Micro‑ATX (244 × 244 mm) |
| Chipset | AMD B850 |
| Socket | AM5 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Memory | 4× DDR5 DIMM; up to 8200+ MT/s (OC); max 256 GB |
| VRM | 12+2+1 Duet Rail; 60A DrMOS |
| PCIe Slots | 1× PCIe 5.0 x16 Steel Armor; 1× PCIe 4.0 x4; PCIe x1 |
| M.2 Slots | 1× Gen5 x4; 1× Gen4 x4 (shielded) |
| SATA Ports | 4× SATA III 6Gb/s (RAIDcapable) |
| LAN | Realtek 5 Gigabit Ethernet |
| Wireless | Wi‑Fi 7 + Bluetooth 5.4 |

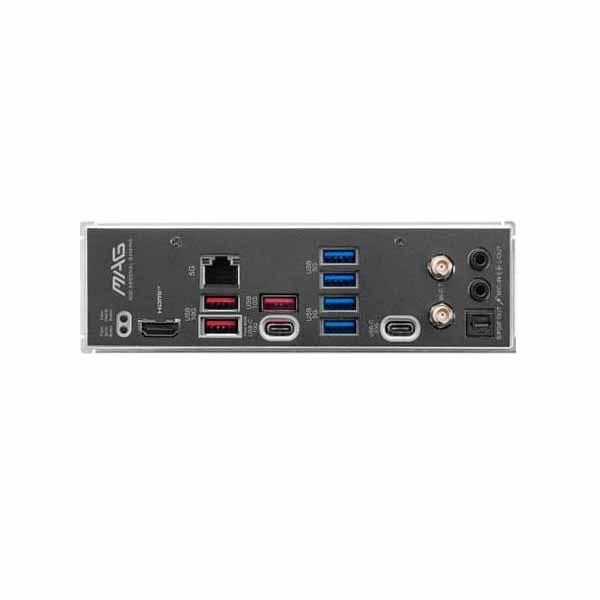

| Rear USB Ports | 1× USB‑C 20 Gbps; multiple USB‑A Gen2/Gen1/USB2 |
| Front USB Headers | 1× USB‑C 20 Gbps; 2× USB‑A 10 Gbps; USB‑2.0 |
| Display Outputs | HDMI 2.1; DisplayPort 1.4 |
| Audio | Realtek ALC897; 7.1 HD Audio with Audio Boost |
| Cooling & PCB | Extended heatsinks; thermal pads; 6-layer PCB |
| Fan Headers | Multiple PWM & water-pump headers |
| DIY Features | EZ Debug LEDs; Flash BIOS; Clear CMOS |
| Warranty | 3 Years |
