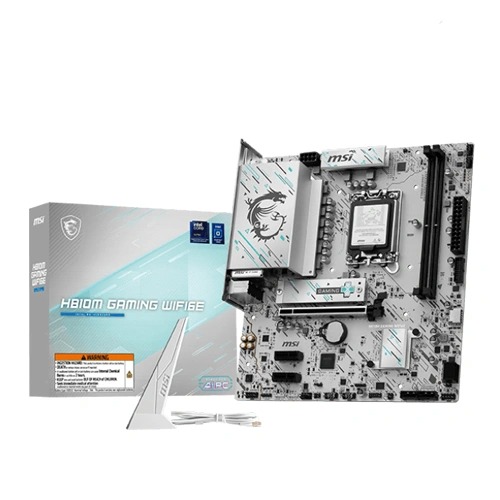

MSI H810M Gaming WIFI M-ATX Motherboard (Intel Socket LGA1851, DDR5, WiFi 6E)
Feature:
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+ MT/s (OC)
- Ultra Performance: 6 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 20G Type-C
- High-Speed Connectivity: Realtek® 2.5G LAN, Wi-Fi 6E Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
The MSI H810M Gaming WIFI motherboard features a sleek, cyber-inspired pattern with teal and black geometric accents on a silver base. Featuring USB 20G Type-C port, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 solution and M.2 Shield Frozr, ready for Intel Core Ultra processors.
MSI H810M Gaming WIFI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
6 + 1 + 1 + 1 P-PAK Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 6 + 1 + 1 + 1 digital power phases. With a 8-pin power connector, H810M GAMING WIFI6E is ready for the challenge of heavy-loading tasks.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Specification:
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | H810 |
| Memory Speed | up to 6400+ |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | DisplayPort USB 2.0 USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HDMI USB 20Gbps (Type-C) USB 2.0 Audio connectors |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
