MSI B860M Gaming Plus WiFi DDR5 Intel LGA 1851 M-ATX WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :

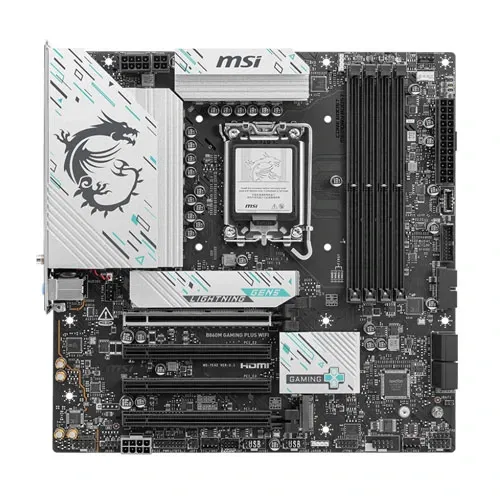

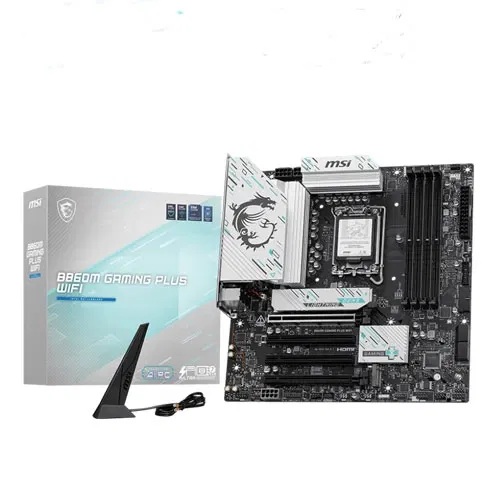

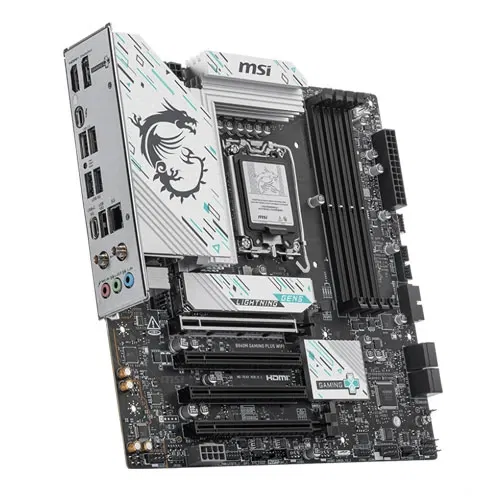

The MSI B860M Gaming Plus WiFi is a powerful micro-ATX motherboard built on Intel’s B860 chipset for the LGA 1851 socket. MSI B860M Gaming Plus WiFi Crafted for gamers and performance users, it supports Intel Core Ultra (Series 2) CPUs and delivers top-tier features like DDR5 up to 8800+ MT/s, PCIe 5.0 x16, triple M.2 slots (including Gen5), Wi‑Fi 7 + Bluetooth 5.4, Intel Killer 5G LAN, Thunderbolt 4, and advanced Frozr cooling—making it an ideal foundation for compact gaming and creator builds.
Features :
Supports Intel Core Ultra (14th Gen) processors on LGA 1851 socket
12-phase Duet Rail VRM design for stable power delivery
Supports DDR5 memory up to 8800+ MT/s (OC), 256 GB max
PCIe 5.0 x16 Steel Armor slot for next-gen GPUs
3× M.2 slots including 1× Gen5 x4 with thermal shield
Integrated Wi-Fi 7 and Bluetooth 5.4 connectivity
5G LAN for ultra-fast wired networking
Thunderbolt 4 Type-C port with 40Gbps transfer rate
HDMI 2.1 and DisplayPort 1.4 for integrated graphics
Realtek ALC897 7.1-channel HD audio with Audio Boost
EZ DIY features like Flash BIOS Button, Clear CMOS, and M.2 Clip
Optimized cooling with extended heatsinks and 6-layer PCB
Specifications :
| Model | MSI B860M Gaming Plus WiFi |
| Form Factor | Micro-ATX (244 × 244 mm) |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| CPU Support | Intel Core Ultra (14th Gen and newer) |
| Memory Support | 4× DDR5 DIMMs, up to 8800+ MT/s (OC), max 256 GB |
| VRM Design | 12-phase Duet Rail VRM |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16, 2× PCIe x1 |
| M.2 Slots | 1× Gen5 x4, 1× Gen4 x4, 1× Gen4 x2 (with heatsinks) |
| SATA Ports | 4× SATA III 6Gb/s (RAID 0/1/5/10) |
| LAN | 5 Gigabit Ethernet |
| Wireless | Wi-Fi 7 + Bluetooth 5.4 |

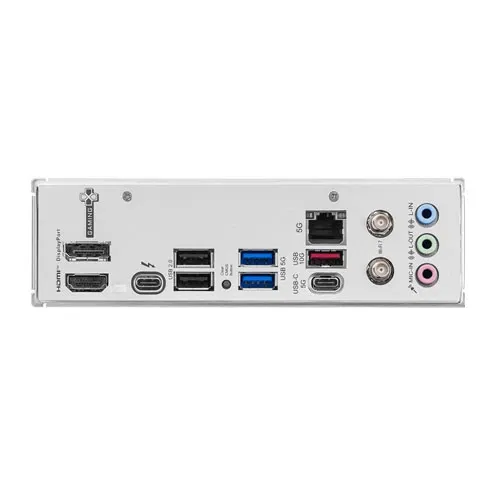

| Rear USB Ports | 1× Thunderbolt 4 Type-C, 1× USB 10Gbps, 2× USB 5Gbps, 2× USB 2.0 |
| Front USB Headers | 1× USB-C 10Gbps, 2× USB 5Gbps, 2× USB 2.0 |
| Display Outputs | 1× HDMI 2.1, 1× DisplayPort 1.4 |
| Audio | Realtek ALC897, 7.1 HD Audio with Audio Boost |
| Cooling | Extended heatsinks, 7W/mK thermal pads, 6-layer PCB |
| Special Features | EZ M.2 Clip, Flash BIOS Button, Clear CMOS, Debug LEDs |
| Warranty | 3 Years |
