Overview :

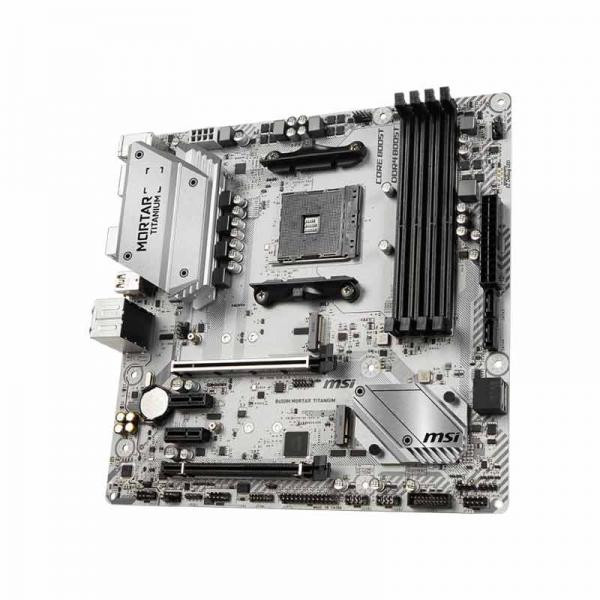

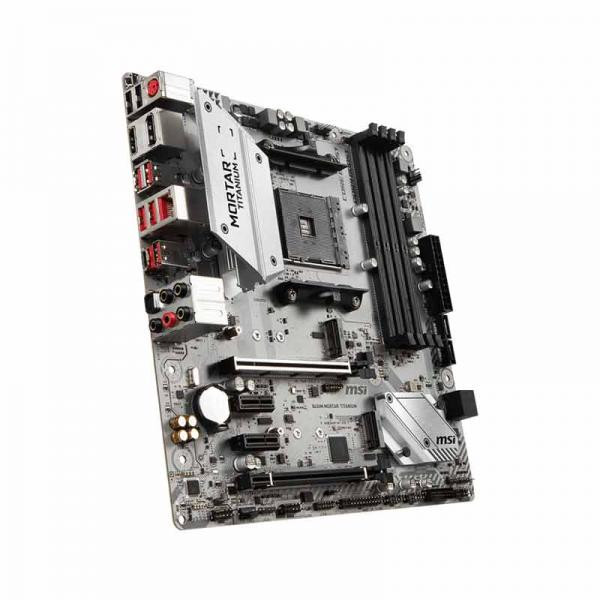

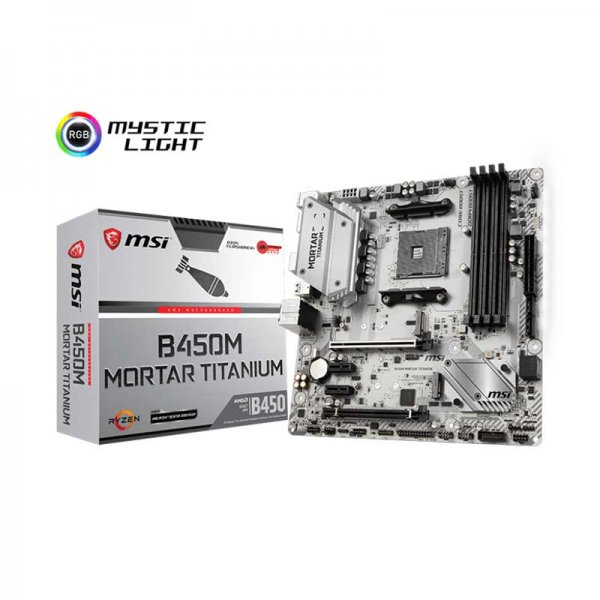

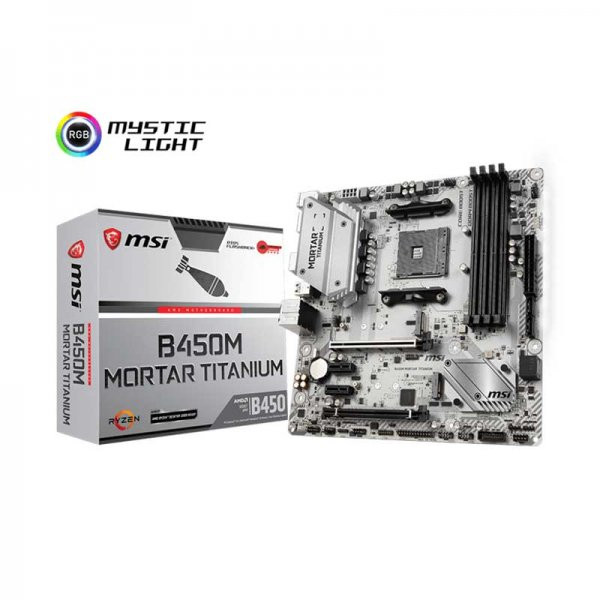

The MSI B450M Mortar Titanium is a compelling Micro‑ATX motherboard tailored for AMD’s AM4 platform. Msi B450M Mortar Titanium Introduced around 2018 as part of the MSI Arsenal Gaming lineup, this board remains a solid choice for budget‑friendly to mid‑range builds—especially those emphasizing style thanks to its distinctive white PCB. Msi B450M Mortar Titanium supports 1st and 2nd generation Ryzen CPUs, including Ryzen APUs with Vega graphics and Athlon processors with Radeon Vega, and offers a robust set of features like BIOS Flashback, CrossFire support, dual M.2 slots (Gen‑3 and Gen‑2), RGB lighting, and an audio boost system, all wrapped in an affordable package
Features :
- Msi B450M Mortar Titanium Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
- Msi B450M Mortar Titanium Supports DDR4 Memory, up to 3466(OC) MHz
- Msi B450M Mortar Titanium Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Msi B450M Mortar Titanium Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology
- Core Boost: Msi B450M Mortar Titanium With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU: Msi B450M Mortar Titanium With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
- Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- EZ Debug LED: Easiest way to troubleshoot.
Specifications :
| PROCESSOR | Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY | - 4 x DDR4 memory slots, support up to 64GB
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
|
| SLOTS | - 1 x PCIe 3.0 x16 slot (PCI_E1)
- Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
- Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
- Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
- 2 x PCIe 2.0 x1 slots2
- PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
- PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot.
|
| ONBOARD GRAPHICS | - 1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz1,2
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1,2
- Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Maximum shared memory of 2048 MB
|
| MULTI-GPU | - Supports 2-Way AMD® CrossFire™ Technology
|
| STORAGE | AMD® B450 Chipset- 4 x SATA 6Gb/s ports1
- 1 x M.2 slot (M2_2, Key M)1
- Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU- 1 x M.2 slot (M2_1, Key M)1
- Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
- PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
|
| RAID | AMD® B450 Chipset- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe RAID
|
| USB | AMD® B450 Chipset- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- 2 x USB 3.1 Gen1 (2 ports available through the internal USB 3.1 Gen1 connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel)
|
| AUDIO | Realtek® ALC892 Codec- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN | - 1 x Realtek® RTL8111H-CG Gigabit LAN controller
|
| INTERNAL CONNECTORS | - 1 x 24-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (support additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 3 x 4-pin system fan connectors
- 2 x 5050 RGB LED strip 12V connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x Serial Port connector
- 1 x Parallel Port connector
|

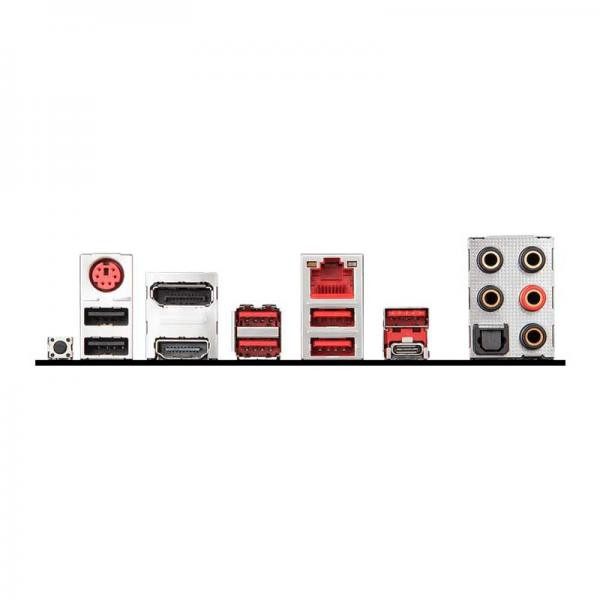

| BACK PANEL PORTS | - BIOS FLASHBACK+ Button
- PS/2 Combo Port
- DisplayPort
- LAN Port
- USB 3.1 Gen2 Type A
- HD Audio Connectors
- USB 2.0 Port
- HDMI Port
- USB 3.1 Gen1
- USB 3.1 Gen2 Type C
- Optical S/PDIF OUT
|
| DIMENSIONS | - 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Micro-ATX Form Factor
|
| MOUNTING | 8 mounting holes |
| OPERATING SYSTEM | - Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
