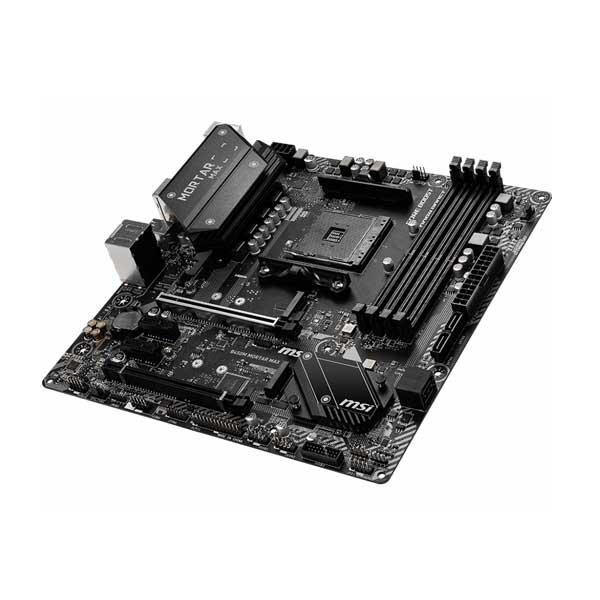

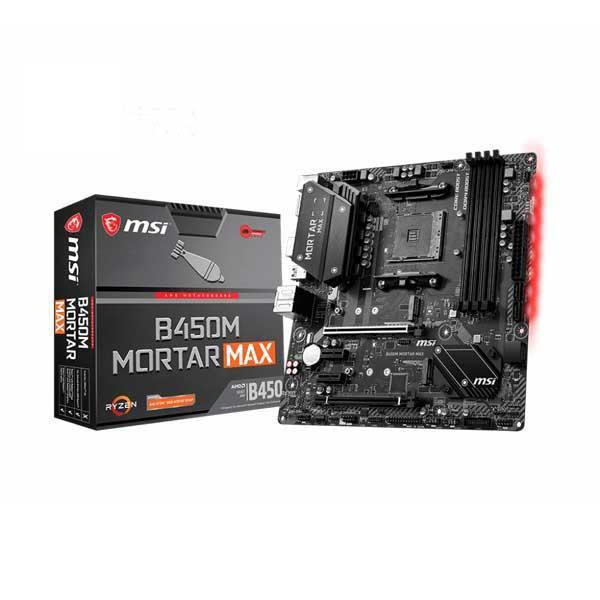

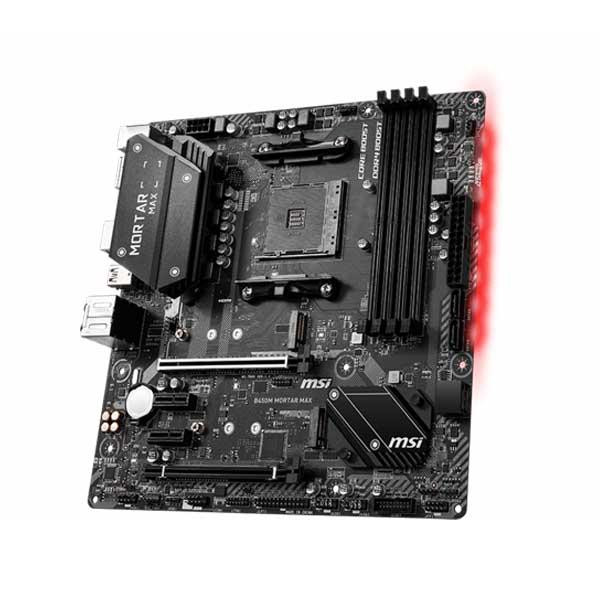

Msi B450M Mortar Max DDR4 AMD AM4 ATX PCIe 3.0 Gaming Motherboard
Overview :
The MSI B450M Mortar Max is a high-value Micro‑ATX AM4 motherboard designed for reliability and performance-driven builds. Msi B450M Mortar Max Powered by the AMD B450 chipset, it supports Ryzen 1st to 3rd Gen CPUs (including those with Vega graphics) and Athlon processors. Msi B450M Mortar Max With dual M.2 slots, USB 3.2 Gen2, Core Boost VRM design, extended heatsinks, and robust storage options including RAID support, the Mortar Max delivers a solid foundation for gamers and productivity users alike.
Key Features :
Extended Heatsink & Core Boost — Msi B450M Mortar Max Ensures stable power delivery and optimal cooling, even under heavy CPU loads.
DDR4 Boost & High OC Memory Support — Delivers clean memory signals and supports overclocked speeds up to 4133 MHz (OC).
Dual Turbo M.2 Slots — One slot supports PCIe 3.0 x4, the other handles PCIe 2.0 x4 or SATA, maximizing NVMe performance.
USB 3.2 Gen2 Connectivity — Offers both Type-C and Type-A ports for high-speed data transfer.
Flash BIOS Button — Enables BIOS updates via USB without needing CPU, RAM, or GPU installed.
Multi‑GPU Support — PCIe Steel Armor slot supports 2‑Way AMD CrossFire™ setups.
Mystic Light Ready — Supports RGB lighting via headers for system-wide lighting sync.
Robust Storage & RAID Capabilities — Four SATA III ports with RAID 0/1/10 support, plus NVMe RAID via M.2.
High-Quality Audio & LAN — Equipped with Realtek ALC892/897 codec and Realtek RTL8111H Gigabit LAN for reliable connectivity.
Specifications Table :
| CPU Platform | AM4 socket; supports Ryzen 1st–3rd Gen (with Vega), 2nd Gen Ryzen, Athlon with Vega |
| Chipset | AMD B450 |
| Form Factor | Micro‑ATX (24.4 × 24.4 cm / 9.6″ × 9.6″) |
| Memory | 4 x DDR4 DIMM (Dual-Channel), up to 64 GB (JEDEC); OC support up to 4133 MHz (A‑XMP) |
| PCIe Slots | 1 × PCIe 3.0 x16, 1 × PCIe 2.0 x16 (x4), 2 × PCIe 2.0 x1 |
| Multi-GPU | 2‑Way AMD CrossFire™, PCIe Steel Armor reinforced x16 slot |
| Storage | 4 × SATA III (RAID 0/1/10); 2 × M.2 (one PCIe 3.0 x4, one PCIe 2.0 x4/SATA) |

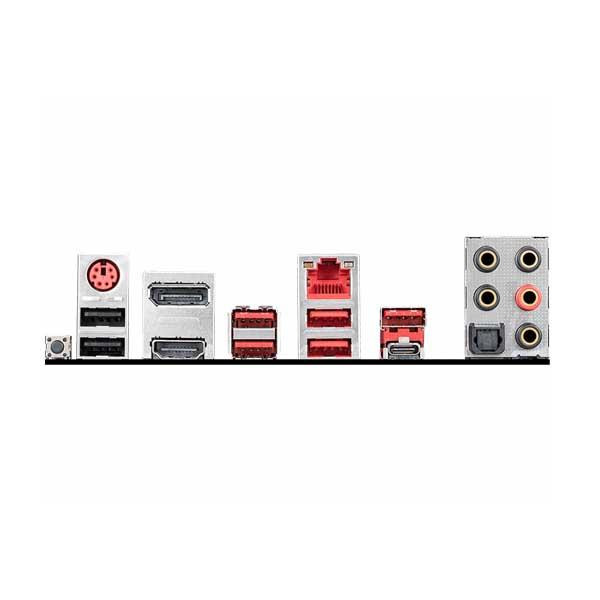

| USB (Rear & Front) | Rear: USB 3.2 Gen2 Type-A & Type-C, USB 3.2 Gen1; Internal: USB 3.2 Gen1, USB 2.0 headers |
| Video Outputs | HDMI 1.4, DisplayPort (for APU graphics integration) |
| Audio | Realtek ALC892/897; 7.1‑channel, including S/PDIF |
| LAN | Realtek RTL8111H Gigabit Ethernet |
| Key Features | Extended Heatsink, Core Boost, DDR4 Boost, Turbo M.2, Flash BIOS Button, Audio Boost, Mystic Light |
| Internal Headers | 24‑pin ATX, 8‑pin CPU, SATA, fan headers, USB, RGB, TPM, audio, chassis, serial, parallel, Clear CMOS |
| BIOS Support | Flash BIOS Button for easy updates |
| Operating System | Windows 10 & 7 (64‑bit; Win 7 requires Summit/Pinnacle Ridge CPU) |
| Warranty | 3 years |
