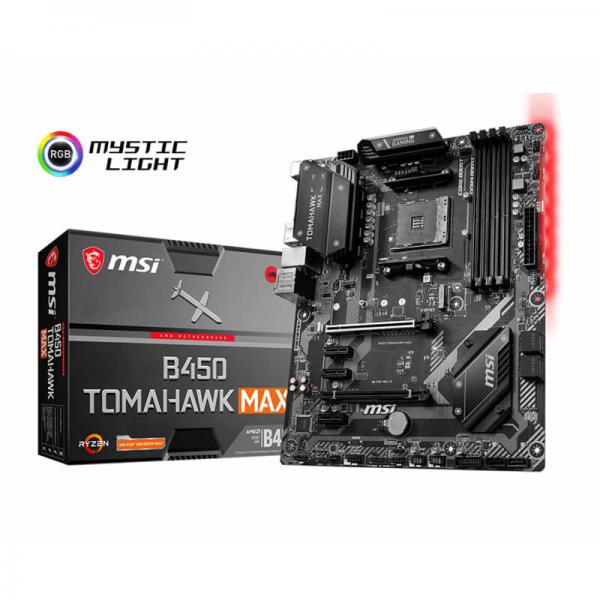

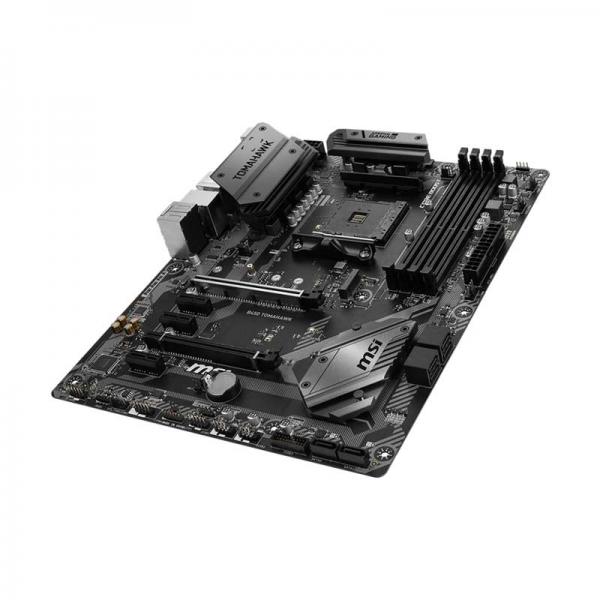

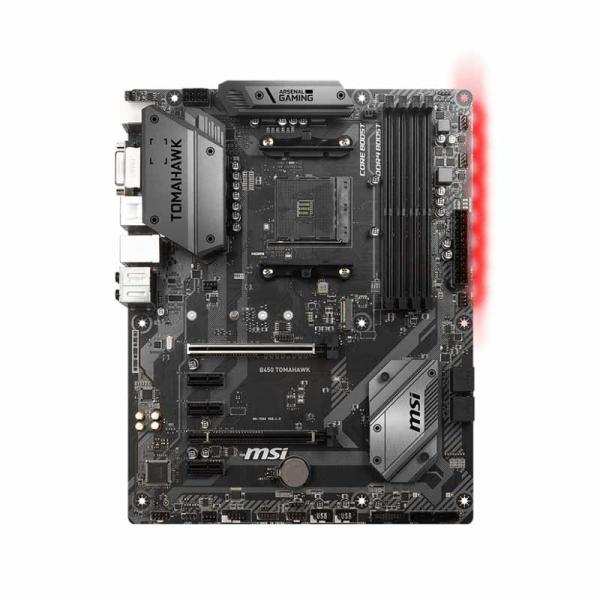

MSI B450 Tomahawk Max DDR4 AMD AM4 ATX PCIe 3.0 Gaming Motherboard
Overview :
The MSI B450 Tomahawk Max is a high-value, ATX‑format gaming motherboard built around AMD’s B450 chipset and AM4 socket. MSI B450 Tomahawk Max boasts robust multi‑generation Ryzen CPU support—including 1st, 2nd, and 3rd Gen processors, as well as Athlon/Ryzen CPUs with Vega graphics—without requiring BIOS updates. MSI B450 Tomahawk Max With superior power design (Core Boost), advanced memory optimization (DDR4 Boost supporting speeds up to 4133 MHz OC), reinforced expansion (Steel Armor PCIe), dual‑way CrossFire support, and modern connectivity (Turbo M.2, USB 3.2 Gen2 including Type‑C), MSI B450 Tomahawk Max a compelling platform for gamers and DIY builders seeking reliability, expandability, and performance.
Key Features :
Broad Ryzen CPU Compatibility: Works with Ryzen 1st, 2nd, and 3rd Gen CPUs, plus Ryzen/Athlon with Vega graphics—no BIOS update needed.
Optimized Power Delivery: Core Boost design and extended heatsinks enhance VRM performance for CPU-intensive tasks.
Memory Overclocking (DDR4 Boost): Four DIMM slots, dual-channel, up to 64 GB, default JEDEC up to 2667 MHz, OC up to 4133 MHz with A‑XMP.
High-Speed Storage & Expansion: Includes 1× M.2 slot (PCIe 3.0 ×4 / SATA) and six SATA III ports with RAID 0/1/10 support.
Enhanced Audio & Networking: Realtek ALC892 7.1-channel audio with Audio Boost; Realtek 8111H Gigabit LAN.

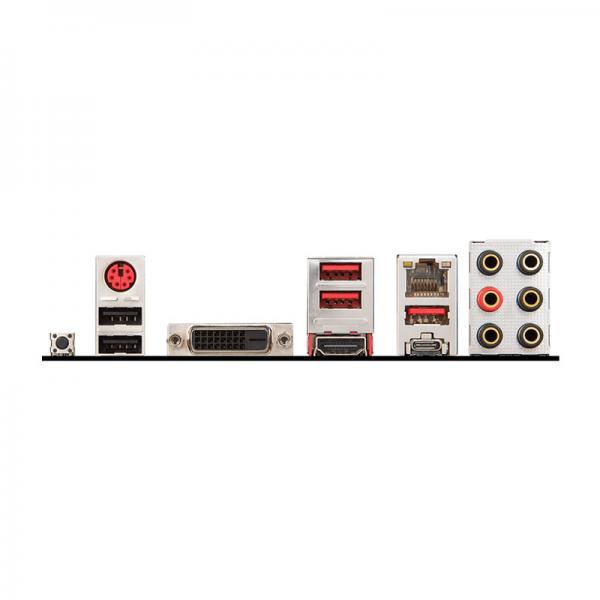

Modern I/O: Rear panel includes USB 3.2 Gen2 (Type‑A & Type‑C), USB 3.2 Gen1, USB 2.0, PS/2, HDMI 1.4, DVI‑D, LAN, and audio jacks. EZ BIOS FlashBack button included.
Durability & Build: ATX form factor (30.5 × 24.4 cm), steel-reinforced PCIe slot, extended heatsinks, CrossFire support.
Friendly to DIY Builders: Thoughtful header layout, clear labeling, front-panel design for easy installation and maintenance.
OS Support & Warranty: Compatible with Windows 10 (64-bit) and Windows 7 (64-bit, with certain CPUs); backed by a 3-year warranty.

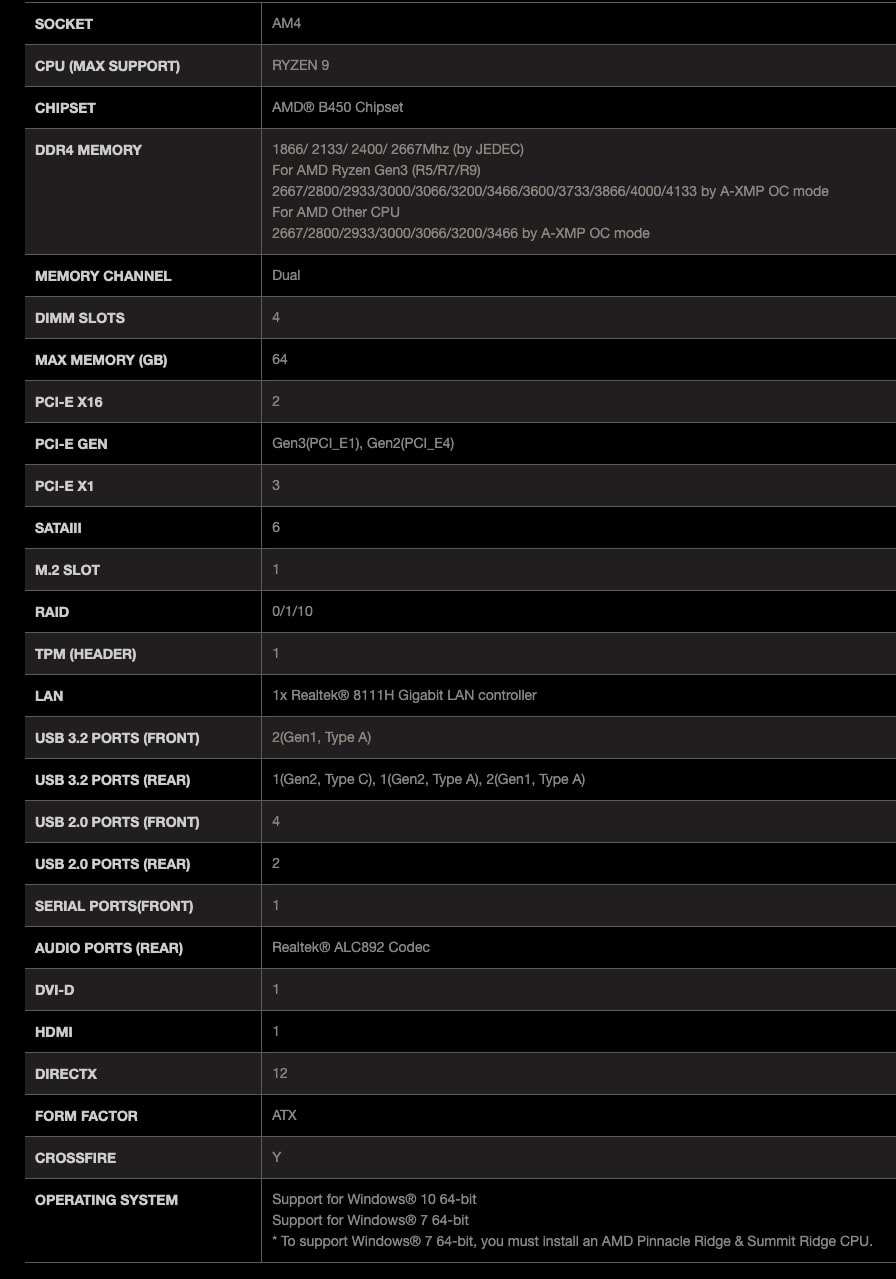

Specification :
| Form Factor | ATX (30.5 × 24.4 cm) |
| CPU & Chipset | Socket AM4, AMD B450; supports Ryzen 1st–3rd Gen, Ryzen/Athlon with Vega graphics |
| Power Design | Core Boost with extended VRM heatsinks |
| Memory | 4× DDR4 DIMM, up to 64 GB, dual‑channel; 1866–2667 MHz (JEDEC), up to 4133 MHz (OC via A‑XMP) |
| PCIe Slots | 1× PCIe 3.0 ×16 (Steel Armor), 1× PCIe 2.0 ×16 (×4 mode), 3× PCIe 2.0 ×1; supports 2‑Way AMD CrossFire |
| Storage Interfaces | 1× M.2 (PCIe 3.0 ×4 / SATA), SATA III ×6; RAID 0/1/10 |
| USB & I/O Ports | Rear: USB 3.2 Gen2 (A & C), USB 3.2 Gen1, USB 2.0, PS/2 combo, HDMI 1.4, DVI‑D, LAN, audio; Front: internal USB 3.2/2.0 headers |
| Networking | Realtek 8111H Gigabit LAN |
| Audio | Realtek ALC892 7.1‑channel HD Audio with Audio Boost |
| Features | Turbo M.2, DDR4 Boost, Flash BIOS Button, Audio Boost, Steel Armor, Core Boost |
| DIY‑Friendly Aspects | Clear pin‑header zone, SATA/USB accessible layout |
| OS Support | Windows 10 64-bit, Windows 7 64-bit (with Pinnacle/Summit Ridge CPUs) |
| Warranty | 3 years |
