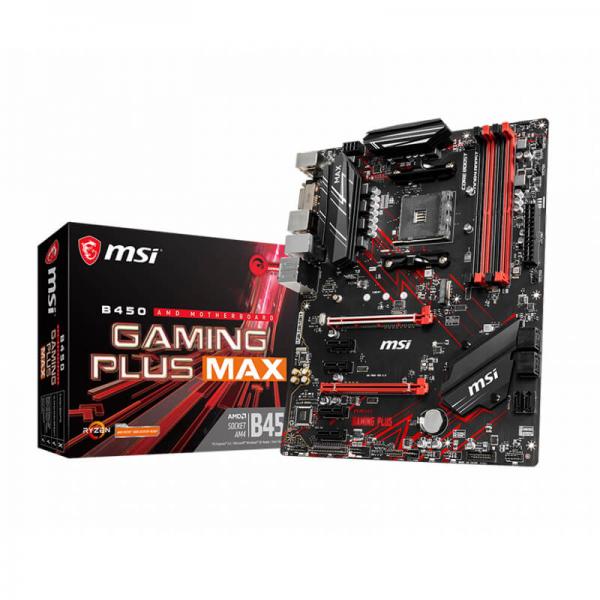

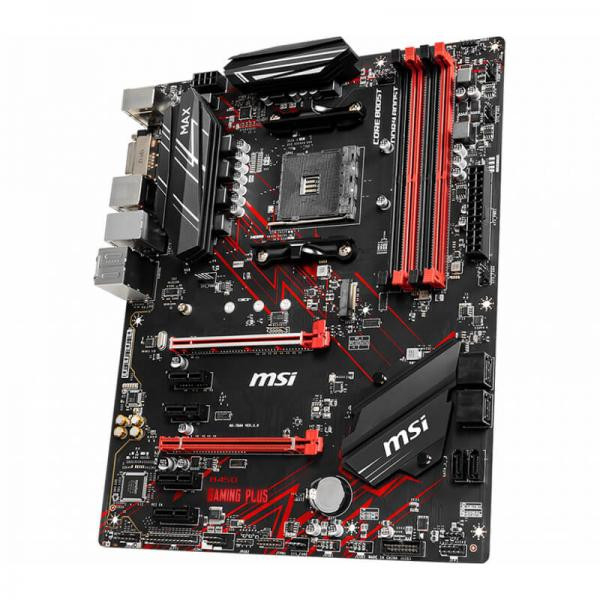

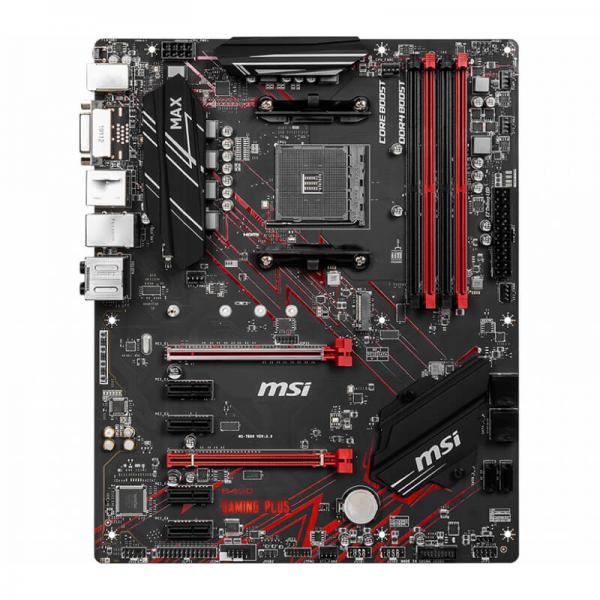

MSI B450 Gaming Plus Max DDR4 AMD AM4 ATX PCIe 3.0 Gaming Motherboard
Original price was: ₹14,399.₹7,949Current price is: ₹7,949. (Inclusive of GST)
-45% Brand: Msi
Out of stock
Msi B450 Gaming Plus Max DDR4 AMD AM4 ATX PCIe 3.0 Gaming Motherboard
Overview :
The MSI B450 Gaming Plus Max is a robust and budget-friendly ATX AM4 motherboard built on the AMD B450 chipset. MSI B450 Gaming Plus Max Designed specifically for gamers and DIY enthusiasts, it delivers out-of-the-box Ryzen 3000 CPU compatibility, thanks to the MAX line’s enhanced BIOS memory. MSI B450 Gaming Plus Max With features like Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen2, Flash BIOS Button, and reinforced PCIe Steel Armor, this motherboard ensures strong performance, durability, and upgrade readiness.
Key Features :
Ryzen 3000 Ready (MAX-Series Advantage)
MSI B450 Gaming Plus Max Guaranteed support for Ryzen 2000 and 3000 series CPUs out-of-the-box due to upgraded BIOS capacity.Optimized Power & Performance
Core Boost design with digital VRMs, plus DDR4 Boost circuitry for clean memory signals and stable overclocking.Ultra-Fast Storage & USB
MSI B450 Gaming Plus Max Equipped with Turbo M.2 (PCIe 3.0 ×4 NVMe speeds) and USB 3.2 Gen2 for up to 10 Gbps on the rear port.Strong Build Quality
Steel Armor reinforced PCIe and memory slots protect against GPU weight and electromagnetic interference.Audio & Debug Tools
Audio Boost with Nahimic 3 optimization and onboard Debug LEDs for easy troubleshooting.One-Button BIOS Flash
Flash BIOS Button enables BIOS updates via USB without CPU, RAM, or GPU installed.

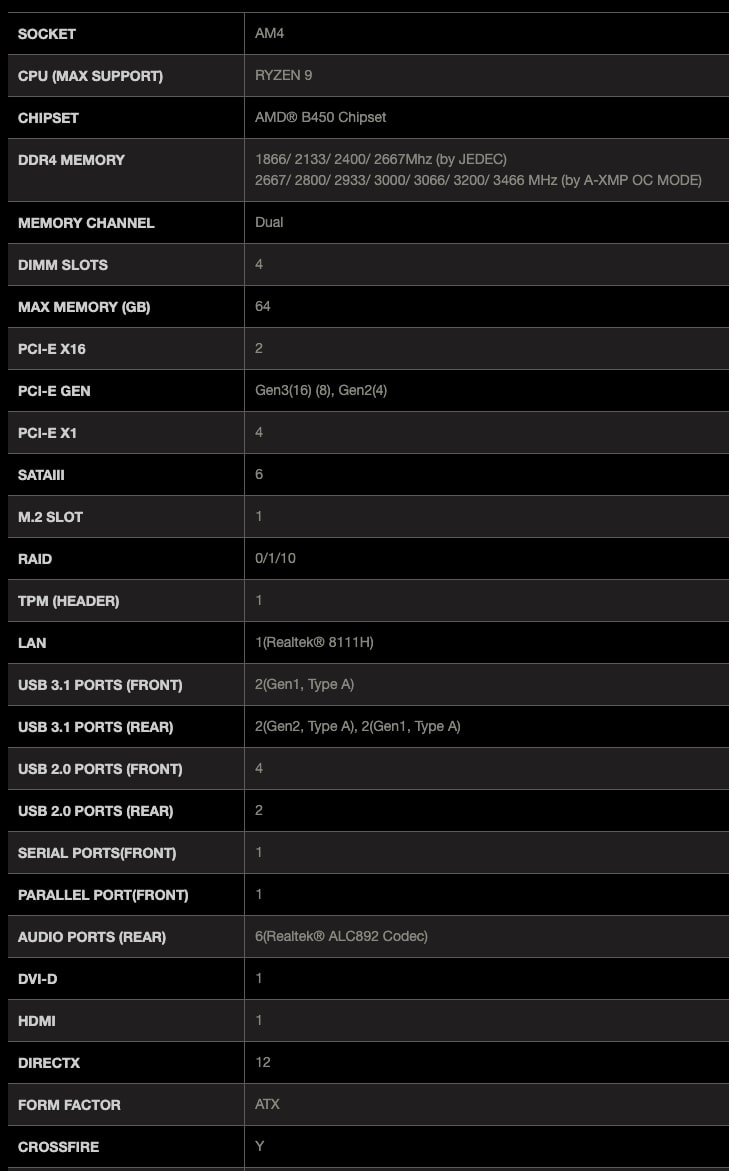

Specification :
| Platform & CPU Support | Socket AM4; supports 1st–3rd Gen Ryzen, Ryzen with Vega, Athlon with Vega. Ryzen 3000 support pre-flashed in MAX models. |
| Chipset | AMD B450 |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
| Memory | 4 × DDR4 DIMM slots; up to 64 GB; JEDEC speeds: 1866–2667 MHz; OC speeds via A-XMP up to 4133 MHz. Supports ECC (non-ECC mode). |
| PCIe Slots | 1 × PCIe 3.0 x16 (x16/x8/x4 mode depending on CPU), 1 × PCIe 2.0 x16 (x4), 4 × PCIe 2.0 x1. |
| Multi-GPU Support | 2‑Way AMD CrossFire™; Steel Armor reinforced slot. |
| Storage | 6 × SATA III (RAID 0/1/10); 1 × M.2 (PCIe 3.0 ×4 or SATA). Note: using M.2 disables SATA5 & SATA6. |

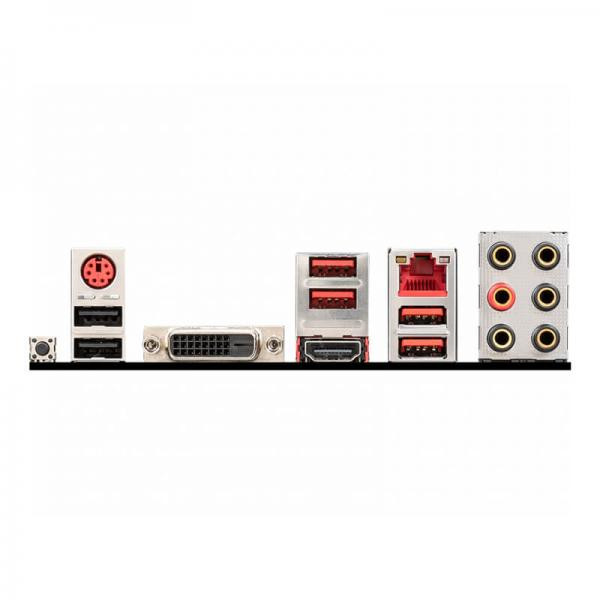

| USB Ports | Rear: 2 × USB 3.2 Gen2 Type‑A, 2 × USB 3.2 Gen1, 2 × USB 2.0; Internal: USB 3.2 Gen1 & 2 × USB 2.0 headers. |
| Video Outputs | 1 × DVI‑D (1920×1200), 1 × HDMI 1.4 (up to 4K@30Hz) — only with supported APUs. |
| Audio | Realtek ALC892, 7.1‑channel, Audio Boost with Nahimic 3. |
| LAN | Realtek RTL8111H Gigabit Ethernet. |
| Special Features | Core Boost, DDR4 Boost, Turbo M.2, Flash BIOS Button, Audio Boost, Steel Armor, StoreMI support. |
| BIOS & Debugging | Click BIOS 5 and onboard Debug LEDs for streamlined troubleshooting. |
| Operating Systems | Supports Windows 10; Windows 7 possible with Ryzen 2000/3000 CPUs. |
| Warranty | 3 years. |
