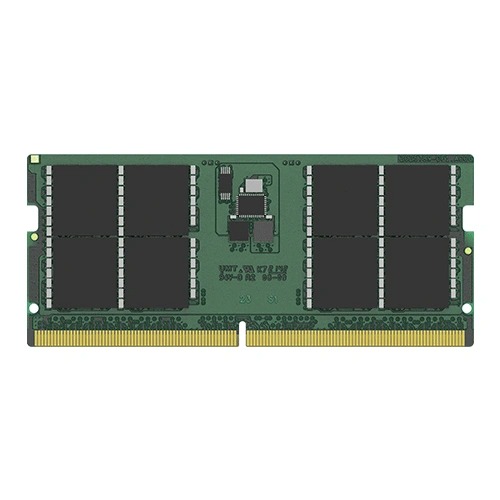

Kingston Value 32GB (32GBx1) 5600MHz CL46 DDR5 Laptop RAM
Feature:
This document describes Kingston Value 32GB (32GBx1) 5600MHz CL46 KVR56S46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Specification:
| Model | KVR56S46BD8-32 |
| Product Series | VALUE |
| Memory Type | DDR5 |
| Capacity | 32GB |
| Lighting | N/A |
| Kit Type | 32GB x 1 |
| Speed | 5600 MHz |
| Tested Latency | 46 |
| Tested Voltage | 1.1 V |
| Dimm Type | SODIMM |
| Warranty | Limited Lifetime |
