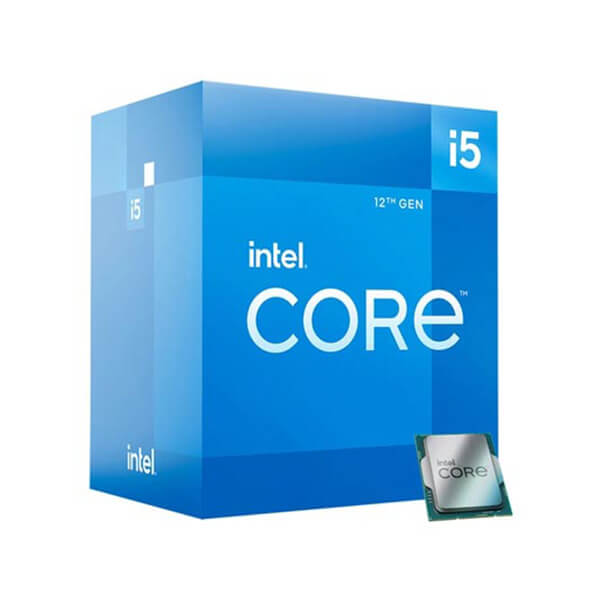

Intel Core i5-12500 12th Generation Desktop Processor – 6 Cores / 12 Threads
Overview:
With more cores and more power, Intel Core i5-12500 12th generation processors (Alder Lake) are ready for next-generation gaming, PCI-Express 5.0 graphics and DDR5 RAM. They will allow you to build powerful machines that can handle everything from video games to productivity applications to intensive multitasking.
PCIe 4.0 & 5.0
This Intel Core i5-12500 cpu supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Specifications:
| Essentials | |
| Product Collection | 12th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Alder Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-12500 |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 6 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 0 |
| Total Threads | 12 |
| Max Turbo Frequency | 4.60 GHz |
| Performance-core Max Turbo Frequency | 4.60 GHz |
| Performance-core Base Frequency | 3.00 GHz |
| Cache | 18 MB Intel® Smart Cache |
| Total L2 Cache | 7.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 117 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.45 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4690 |
| OpenCL* Support | 2.1 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700,FCBGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | No |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
