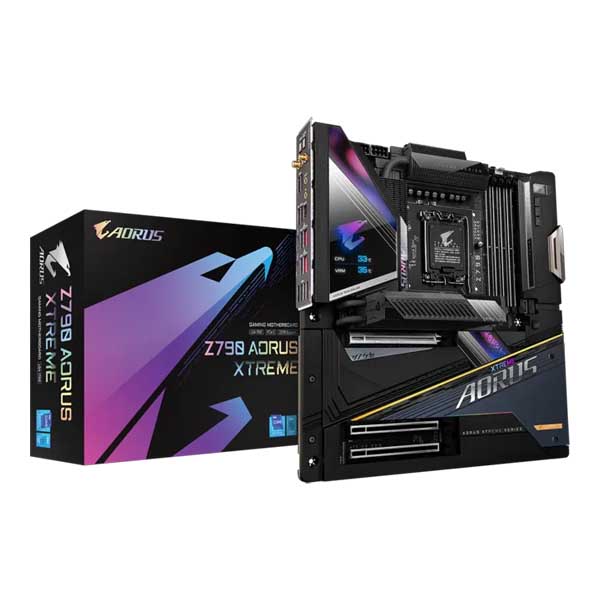

GIGABYTE Z790 Aorus Xtreme WIFI E-ATX Motherboard (Intel Socket LGA 1700, DDR5, Wi-Fi 6E)
Feature:
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Direct 20+1+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
- Fins-Array III & M.2 Thermal Guard Xtreme II：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch Plus：SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS:X® Ultra：ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled
- Fast Networks：Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax with DCT
- Extended Connectivity：Intel® Thunderbolt 4 onboard
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Unparalleled Performance
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE Z790 Aorus Xtreme WIFI motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Outstanding Thermal Design
GIGABYTE Z790 Aorus Xtreme WIFI Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
SMART FAN 6
GIGABYTE Z790 Aorus Xtreme WIFI HAS Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Specification:
| CPU | LGA1700 socket: Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory Support | DDR5 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB (64GB per DIMM) |
| Memory Architecture | Dual Channel |
| ECC Memory Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (Non-ECC Mode) |
| Non-ECC Memory Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Yes |
| Graphics Support | Integrated Intel® HD Graphics (CPU Dependent) |
| Thunderbolt Ports | 2 × Intel® Thunderbolt™ 4 (USB Type-C®) |
| Thunderbolt Max Resolution | 5120 × 2880 @ 60Hz (Single Display) |
| Display Standards | DisplayPort 1.4, HDCP 2.3 |
| Audio | ESS ES9280AC DAC + 2 × ESS ES9080 DAC Chips |
| Audio Technology | DTS® Sound Unbound™ |
| Audio Channels | 2-Channel High Definition Audio |
| S/PDIF | Optical S/PDIF Out |
| LAN 1 | Marvell® AQtion AQC107 10GbE LAN |
| LAN 2 | Intel® 2.5GbE LAN |
| Wireless | Intel® Killer™ Wi-Fi 6E AX1690 |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax |
| Wireless Bands | 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.3 |
| PCIe x16 (CPU) | 1 × PCIe 5.0 x16 |
| PCIe x16 (Chipset) | 1 × PCIe 3.0 x4 |
| PCIe x1 (Chipset) | 1 × PCIe 3.0 x1 |
| M.2 Slots | 5 × M.2 Socket 3 |
| CPU M.2 Slots | 1 × PCIe 5.0 x4/x2, 1 × PCIe 4.0 x4/x2 |
| Chipset M.2 Slots | 2 × PCIe 4.0 x4/x2, 1 × PCIe 4.0/SATA |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 (NVMe & SATA) |
| Rear Thunderbolt | 2 × USB Type-C® (Thunderbolt™ 4 / USB 3.2 Gen 2) |
| Rear USB 3.2 Gen 2 Type-A | 10 × Type-A |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 2×2 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Header | 1 |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connectors | 2 × 8-pin ATX 12V |
| CPU Fan Header | 1 |
| CPU Water Pump Header | 1 |
| System Fan Headers | 4 |
| System Fan/Pump Headers | 4 |
| RGB Headers | 2 × Integrated Extension Cable Headers (Addressable & RGB) |
| SATA Connectors | 4 |
| Front Panel Header | 1 |
| USB Type-C Header | 1 |
| Temperature Sensor Headers | 2 |
| Power Button | 1 |
| Reset Button | 1 |
| Clear CMOS Button | 1 |
| Noise Detection Header | 1 |
| Back Panel Q-Flash Plus | 1 |
| Back Panel OC Ignition Button | 1 |
| SMA Antenna Connectors | 2 × (2T2R) |
| Rear RJ-45 Ports | 2 |
| Rear Optical S/PDIF | 1 |
| Rear Audio Jacks | 2 |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control, Noise Detection |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| BIOS Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM Version), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | E-ATX (30.5 × 28.5 cm) |
