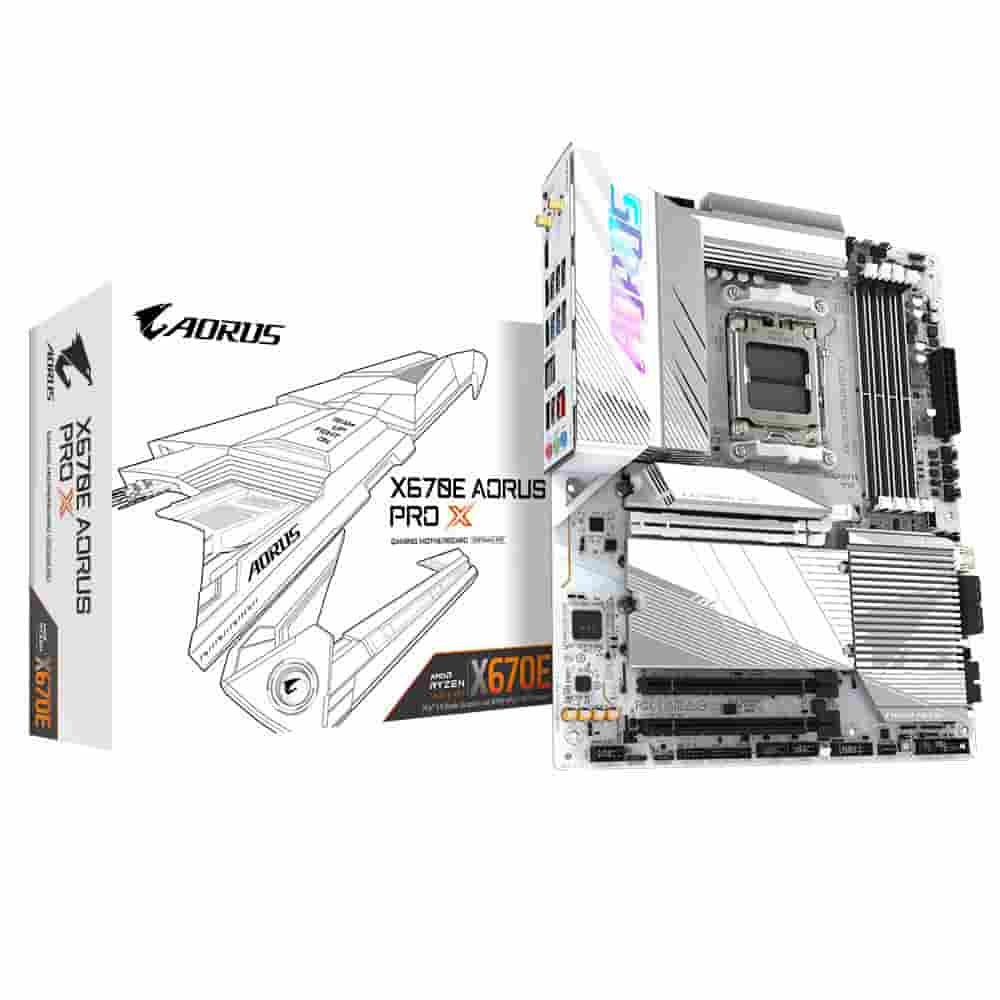

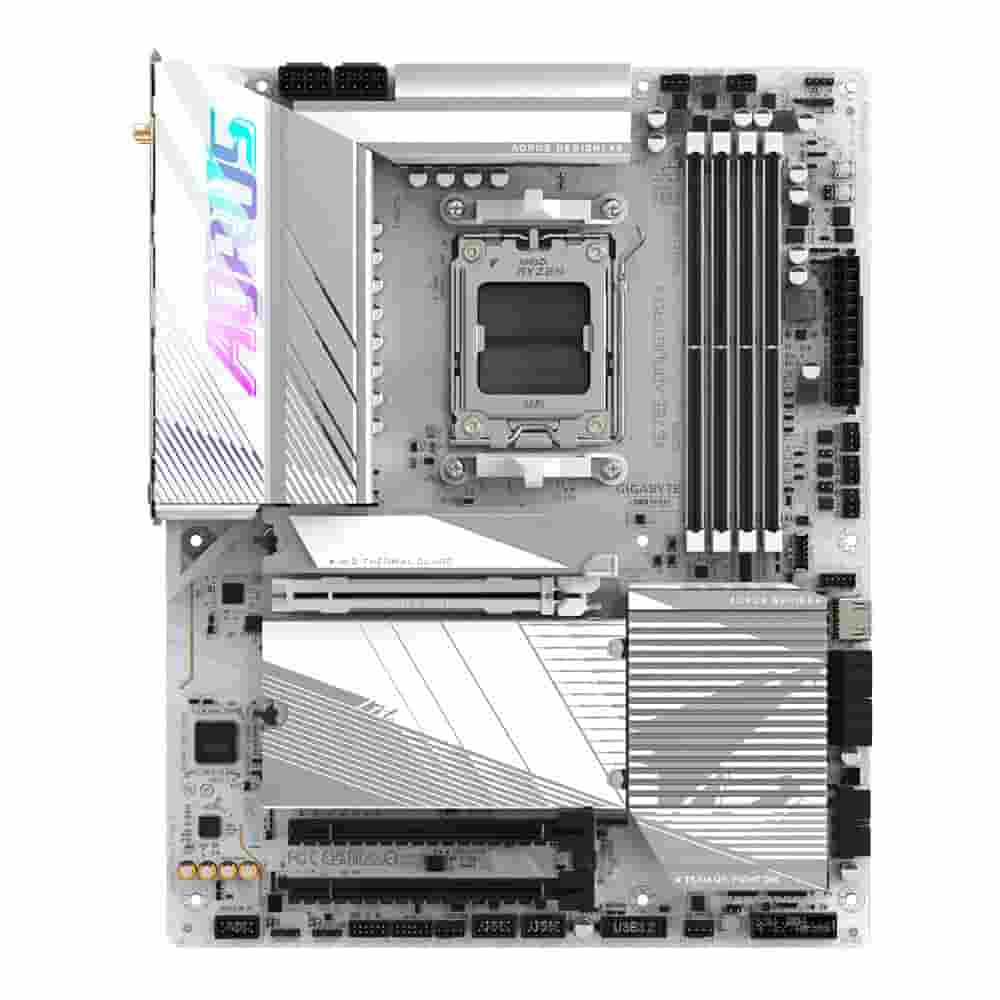

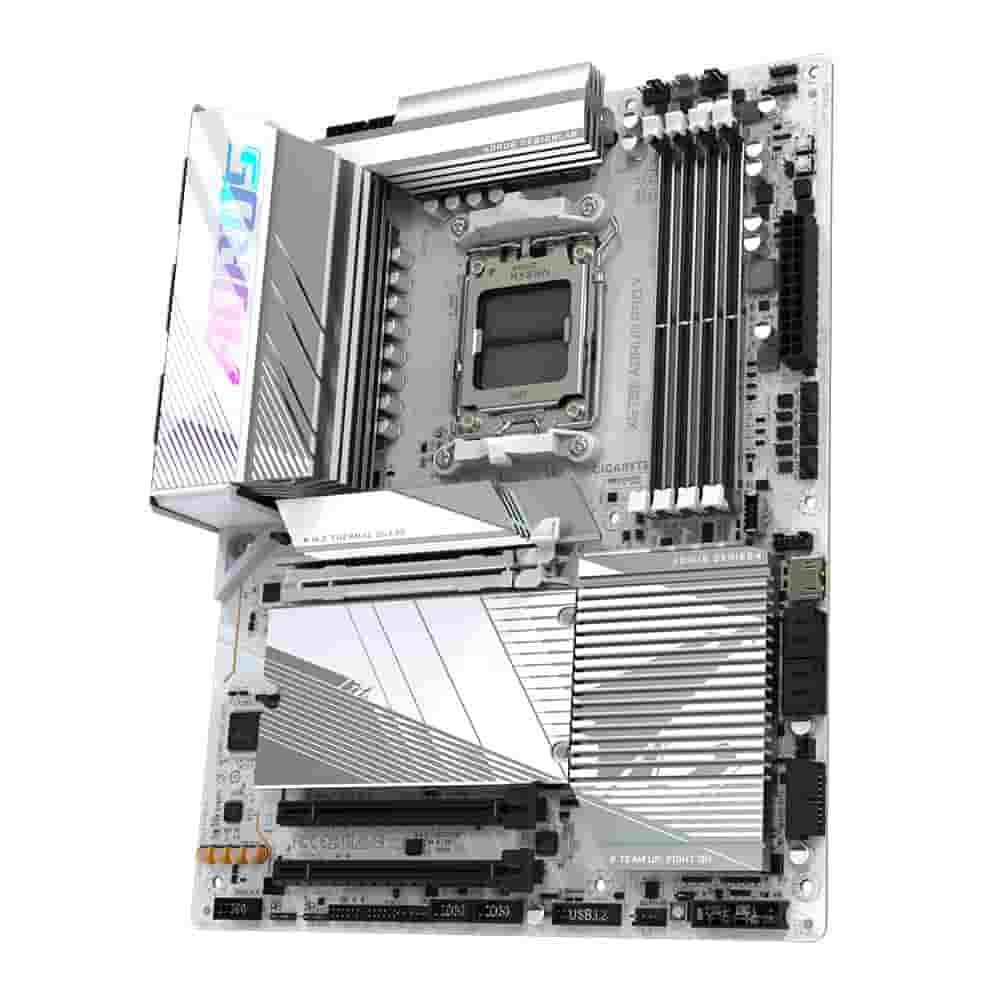

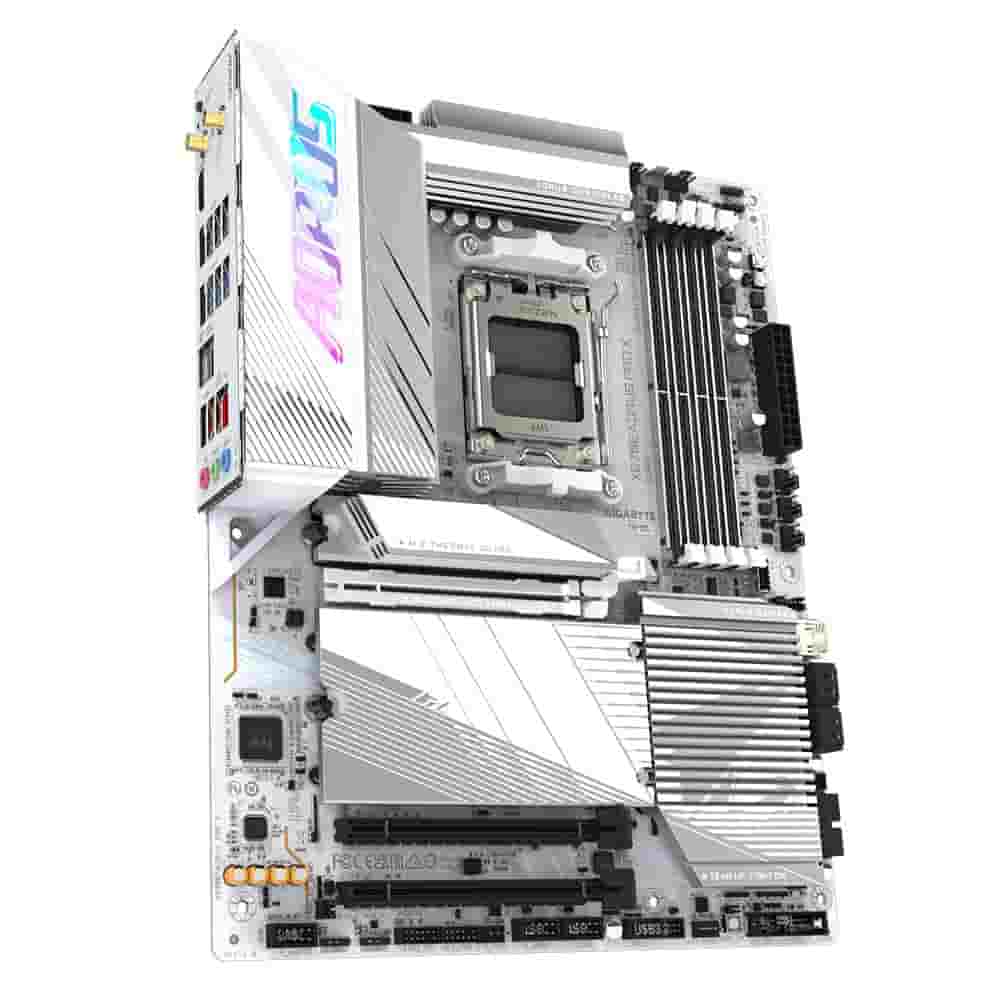

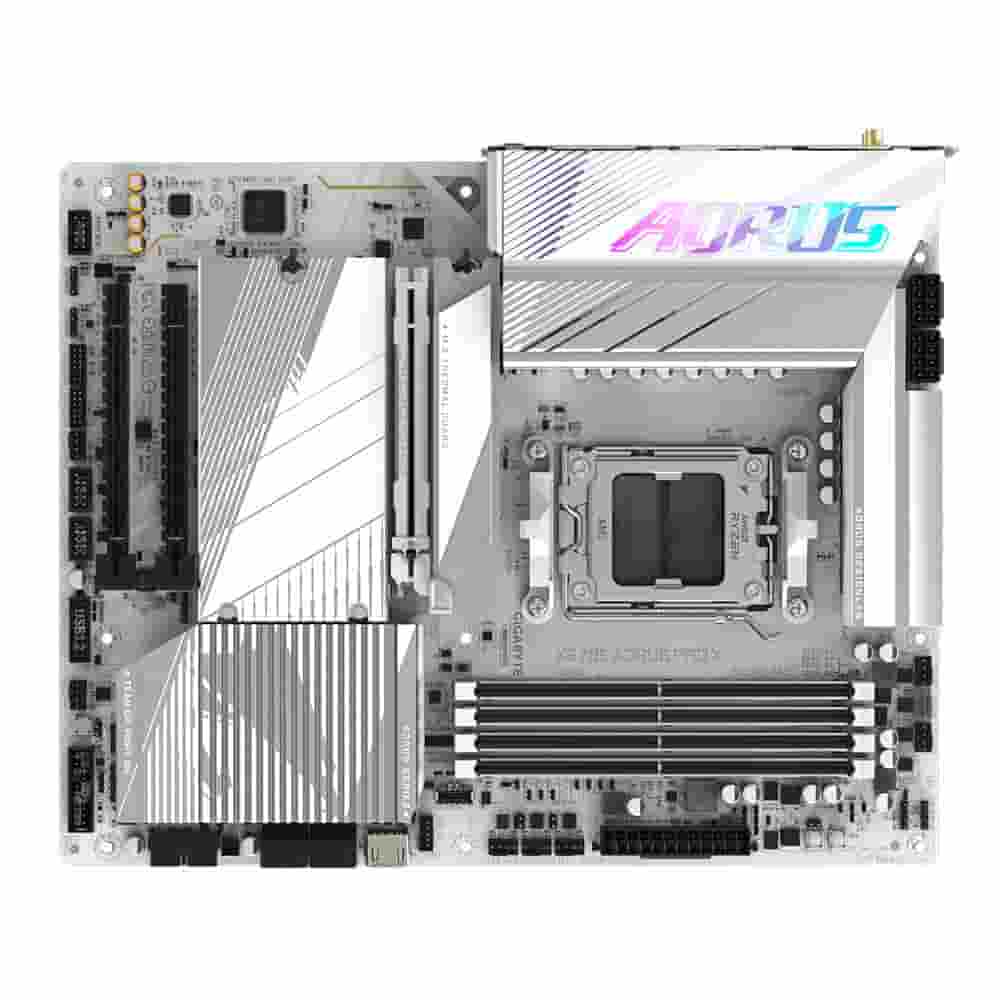

Gigabyte X670E AORUS PRO X Motherboard :
Features :

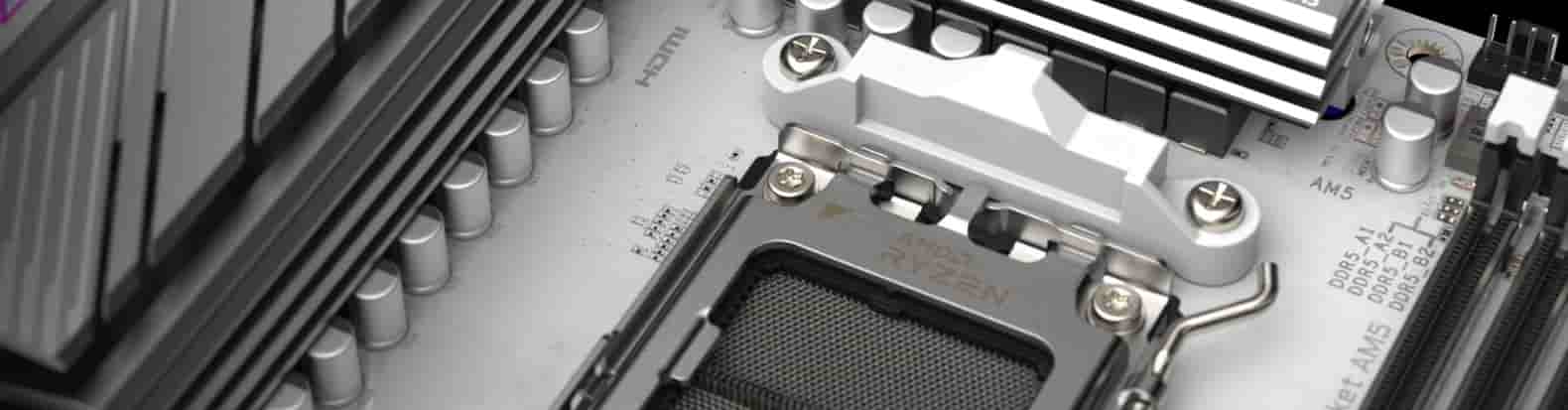

- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series / Ryzen™ 8000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：4*M.2 slots, including 2* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：HDMI, Rear & Front USB-C® 20Gb/s
- Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
Overview :
Power in number
The Gigabyte X670E AORUS PRO X, All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Memory to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility in the Gigabyte X670E AORUS PRO X.
Overall Thermal
The Gigabyte X670E AORUS PRO X Motherboard, Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
Get everythingUD
Gigabyte X670E AORUS PRO X Motherboard Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. Gigabyte X670E AORUS PRO X Motherboard is built to last longer and stand stronger.
Connectivity versatile
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
High Quailty Sound
Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment in the Gigabyte X670E AORUS PRO X Motherboard.
Audiophile Grade Capacitors
Premium Grade Audio capacitors provide stable current, delivering a studio-quality experience in the Gigabyte X670E AORUS PRO X Motherboard.
Elevating Performance Together
Gigabyte X670E AORUS PRO X Motherboard signifies our dedication to BIOS optimization. Through our community partnership, we’re making next-gen performance more user-friendly.
Specifications :
| CPU | AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors<br>* Please refer to “CPU Support List” for more information. |
| Chipset | AMD X670 |
| Memory | – Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br>- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory<br>- Dual channel memory architecture<br>- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br>- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules<br>* The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. |
| Onboard Graphics | – Integrated Graphics Processor with AMD Radeon™ Graphics support<br>- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz<br>* Support for HDMI 2.1 version and HDCP 2.3<br>* Support for native HDMI 2.1 TMDS compatible ports.<br>- 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz<br>* Support for HDMI 1.4 version<br>* Graphics specifications may vary depending on CPU support. |
| Audio | Realtek® Audio CODEC<br>- High Definition Audio<br>- 2/4/5.1/7.1-channel<br>* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | – Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0/1.2): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11be 320MHz wireless standard<br>- MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11be 320MHz wireless standard<br>* Actual data rate may vary depending on environment and equipment.<br>* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)<br>* Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations. |
| Expansion Slots | – 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br>– AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode<br>– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br>– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br>* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br>- Chipset:<br>– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)<br>– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface | – 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br>– AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br>– AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br>- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br>– AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br>– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br>– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br>- Chipset:<br>– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB)<br>– 4 x SATA 6Gb/s connectors<br>- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br>- RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | – CPU:<br>– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br>– 2 x USB 3.2 Gen 1 ports on the back panel<br>- CPU + USB 2.0 Hub:<br>– 4 x USB 2.0/1.1 ports on the back panel<br>- Chipset:<br>– 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)<br>– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br>– 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br>– 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | – 1 x 24-pin ATX main power connector<br>- 2 x 8-pin ATX 12V power connectors<br>- 1 x CPU fan header<br>- 1 x CPU fan/water cooling pump header<br>- 4 x system fan headers<br>- 2 x system fan/water cooling pump headers<br>- 3 x addressable RGB Gen2 LED strip headers<br>- 1 x RGB LED strip header<br>- 4 x SATA 6Gb/s connectors<br>- 4 x M.2 Socket 3 connectors<br>- 2 x temperature sensor headers<br>- 1 x front panel header<br>- 1 x front panel audio header<br>- 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support<br>- 2 x USB 3.2 Gen 1 headers<br>- 2 x USB 2.0/1.1 headers<br>- 1 x noise detection header<br>- 1 x THB_U4 add-in card connector<br>- 1 x HDMI port*<br>* Only available with the AMD Radeon™ Graphics Processors.<br>- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br>- 1 x power button<br>- 1 x reset button<br>- 1 x Clear CMOS button<br>- 1 x reset jumper<br>- 1 x Clear CMOS jumper |

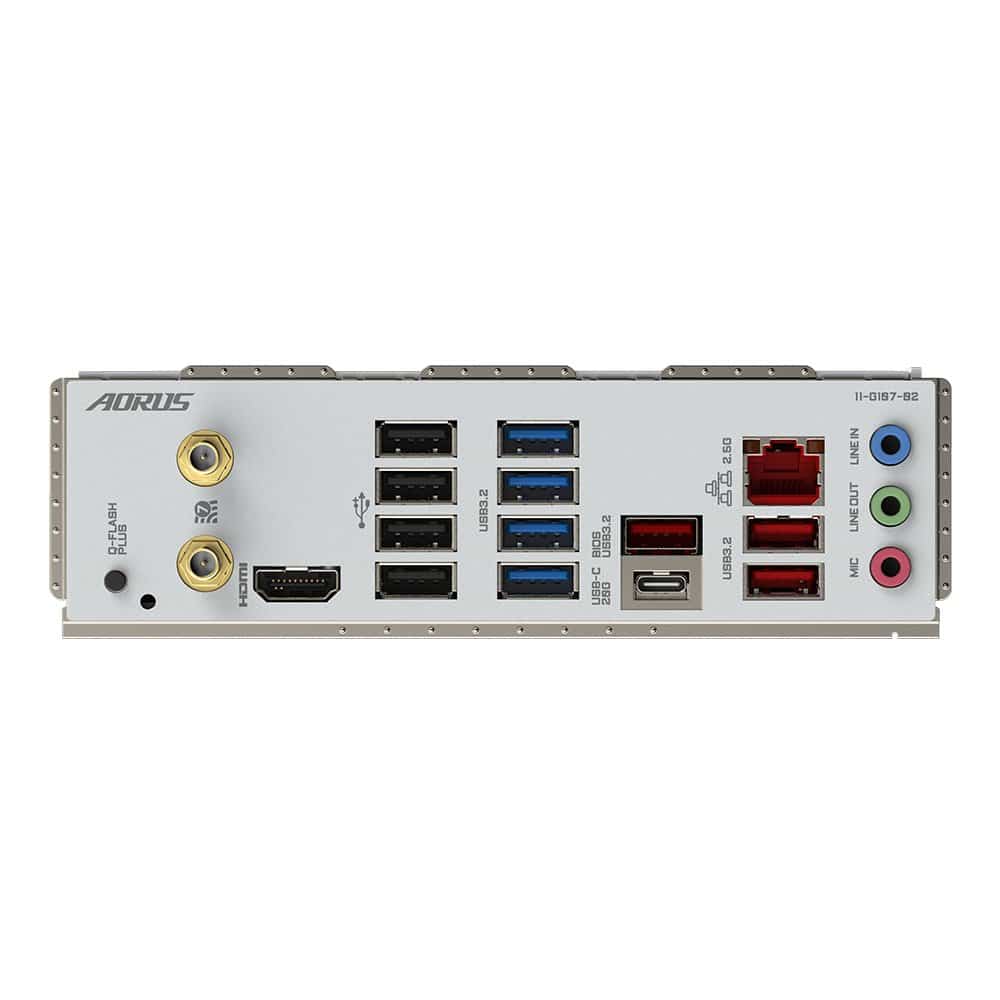

| Back Panel Connectors | – 1 x Q-Flash Plus button<br>- 2 x SMA antenna connectors (2T2R)<br>- 1 x HDMI port<br>- 4 x USB 3.2 Gen 1 ports<br>- 4 x USB 2.0/1.1 ports<br>- 3 x USB 3.2 Gen 2 Type-A ports (red)<br>- 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support<br>- 1 x RJ-45 port<br>- 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | – Voltage detection<br>- Temperature detection<br>- Fan speed detection<br>- Water cooling flow rate detection<br>- Fan fail warning<br>- Fan speed control<br>* Whether the fan speed control function is supported will depend on the fan you install.<br>- Noise detection |
| BIOS | – 1 x 256 Mbit flash<br>- Use of licensed AMI UEFI BIOS<br>- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | – Support for GIGABYTE Control Center (GCC)<br>* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br>- Support for Q-Flash<br>- Support for Q-Flash Plus<br>- Support for Smart Backup |
| Bundled Software | – Norton® Internet Security (OEM version)<br>- LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
