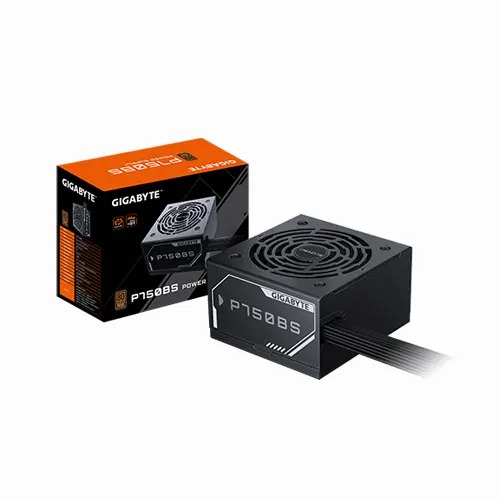

Gigabyte P750BS 750W 80 Plus Bronze ATX Non-Modular Power Supply
Feature:
- Gigabyte P750BS 750W 80 PLUS Bronze certified (230V EU)
- 120mm Silent Fluid Dynamic Bearing (FDB) fan
- Soft-textured embossed cables
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty (Adjusted according to different regions)
80 PLUS BRONZE CERTIFIED
The 80 Plus Bronze certification (230V EU) guarantees a 88% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
120MM FLUID DYNAMIC BEARING(FDB) FAN
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.
SOFT-TEXTURED EMBOSSED CABLES
The embossed design of soft-textured cables enhances friction between the cable and surfaces, reducing wear and tear for a longer lifespan. It also effectively prevents tangling and knotting, keeping cables neat and tidy. The soft material provides a comfortable touch, while the variety of embossed patterns adds a touch of aesthetics to the product.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
| AC Input | Input Voltage | 200-240V ~ | |||
| Input Current | 6A | ||||
| Frequency | 50-60Hz | ||||
| PFC | ACTIVE PFC | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 62.5A | 0.3A | 3A |
| Max Combined Wattage | 100W | 750W | 3.6W | 15W | |
| 750W | |||||
PROTECTION
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
Specification:
| Wattage | 750 Watt |
| Series | P SERIES |
| Certification | 80 Plus Bronze |
| Modular | NON MODULAR |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 7 |
| Peripheral (4-Pin) | 1 |
| Warranty | 3 Years |
| Note*** | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
