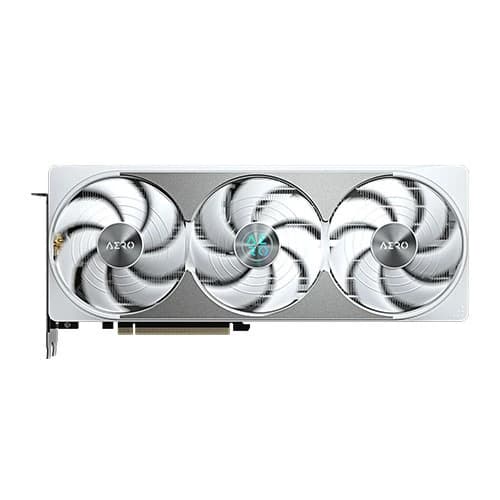

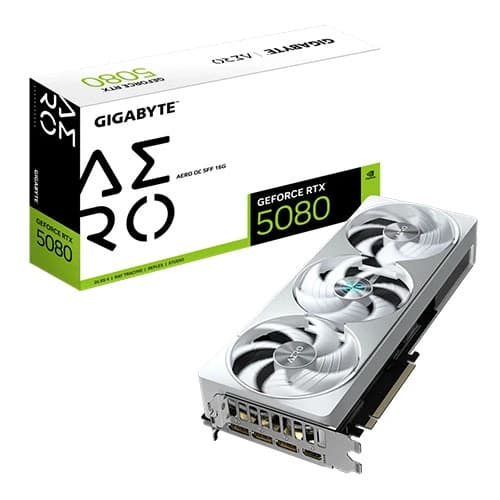

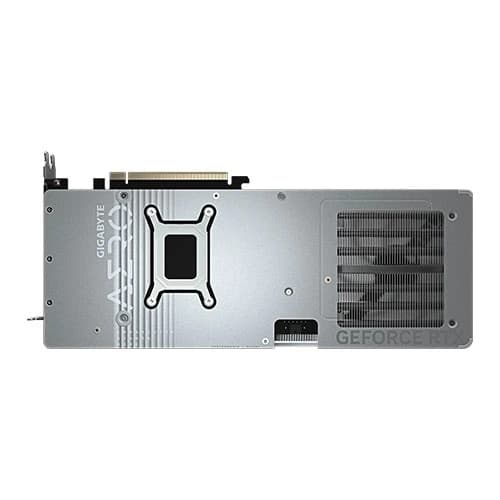

Gigabyte Nvidia GeForce RTX 5080 Aero OC SFF 16GB GDDR7 Triple Fan Graphics Card :
Overview :
The Gigabyte Nvidia GeForce RTX 5080 Aero OC SFF 16GB GDDR7 Triple Fan Graphics Card is engineered for high-performance gaming and creative workloads. Built on NVIDIA’s Blackwell architecture, Gigabyte Nvidia GeForce RTX 5080 Aero OC SFF 16GB GDDR7 Triple Fan Graphics Card offers advanced AI capabilities, real-time ray tracing, and efficient cooling solutions. Gigabyte Nvidia GeForce RTX 5080 Aero OC SFF 16GB GDDR7 Triple Fan Graphics Card compact design ensures compatibility with small form factor builds without compromising performance.
Key Features :
NVIDIA Blackwell Architecture: Delivers next-generation performance and efficiency.
16GB GDDR7 Memory: Provides ample high-speed memory for demanding applications.
WINDFORCE Cooling System: Features triple Hawk fans, vapor chamber, and composite copper heat pipes for optimal thermal management.
Dual BIOS (Performance/Silent): Allows users to switch between high-performance and quieter operation modes.
NVIDIA SFF-Ready: Designed for small form factor builds without sacrificing performance.
RGB Lighting: Customizable lighting effects to match your system’s aesthetics.
Reinforced Structure: Metal backplate enhances structural integrity and prevents PCB flex.
Versatile VGA Holder: Ensures secure installation and prevents GPU sag.
Specifications :
| GPU Model | NVIDIA GeForce RTX 5080 |
| CUDA Cores | 10,752 |
| Base Clock | 2,295 MHz |
| Boost Clock | 2,730 MHz |
| Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 30 Gbps |
| Memory Bandwidth | 960 GB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| Bus Interface | PCI Express 5.0 x16 |
| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 (8K UHD) |
| Multi-Display Support | Up to 4 displays |
| Power Consumption (TDP) | 360W |
| Recommended PSU | 850W |
| Power Connector | 1 x 16-pin (12V-2×6) |
| Cooling System | WINDFORCE Triple-Fan with Vapor Chamber |
| Dimensions (L x W x H) | 304 x 126 x 50 mm |
| Slot Size | Dual-slot |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Vulkan API | Vulkan 1.4 |
| Operating System Support | Windows 11 / 10, Linux, FreeBSDx86 |
| Additional Features | NVIDIA DLSS 4, NVIDIA Reflex, NVIDIA Broadcast, NVIDIA Studio Drivers |
| Accessories Included | User Manual, 3 x 8-pin-to-16-pin adapter, Versatile VGA holder |
| Warranty | 3 Years Standard + 1 Year Extended (upon registration) |
