Gigabyte Nvidia GeForce RTX 5070 Ti Windforce OC SFF 16GB GDDR7 Triple Fan Graphics Card :
Overview :
The Gigabyte Nvidia GeForce RTX 5070 Ti Windforce OC SFF 16GB GDDR7 Triple Fan Graphics Card is engineered for gamers and creators seeking top-tier performance in a compact design. Powered by NVIDIA’s Blackwell architecture, Gigabyte Nvidia GeForce RTX 5070 Ti Windforce OC SFF 16GB GDDR7 Triple Fan Graphics Card offers real-time ray tracing, AI-enhanced graphics, and efficient cooling through its WINDFORCE system. With 16GB of GDDR7 memory and dual BIOS modes, this GPU ensures smooth 4K gaming and content creation, making Gigabyte Nvidia GeForce RTX 5070 Ti Windforce OC SFF 16GB GDDR7 Triple Fan Graphics Card an ideal choice for small form factor builds without compromising on power.
Key Features :
NVIDIA Blackwell Architecture: Delivers advanced ray tracing and AI-enhanced graphics performance.
16GB GDDR7 Memory: Ensures high-speed data processing and smooth multitasking.
WINDFORCE Cooling System: Features triple Hawk fans, composite copper heat pipes, and a large copper plate for efficient heat dissipation.
Dual BIOS (Performance/Silent): Allows users to switch between high-performance and quieter operation modes.
NVIDIA SFF-Ready Design: Compact form factor suitable for small form factor builds.
Reinforced Structure: Metal backplate enhances structural integrity and prevents PCB flex.
Versatile VGA Holder: Provides customizable mounting options to prevent GPU sag.
Specifications :
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 8,960 |
| Base Clock | 2,300 MHz |
| Boost Clock | 2,497 MHz |
| Memory Capacity | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 896 GB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| Bus Interface | PCI Express 5.0 x16 |

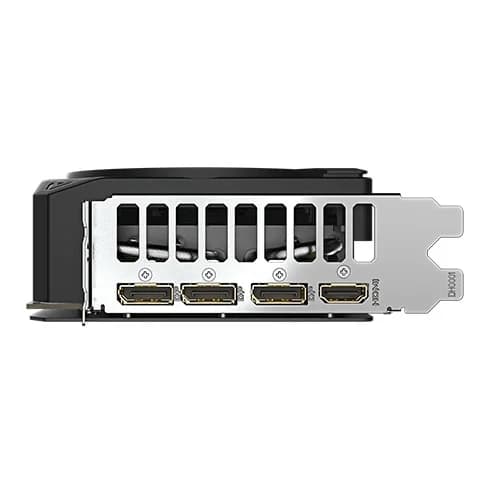

| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 |
| Multi-Display Support | Up to 4 displays |
| Power Consumption (TDP) | 300W |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin (12V-2×6) or 3 x 8-pin PCIe (adapter included) |
| Cooling System | Triple Hawk Fans, Composite Copper Heat Pipes, Large Copper Plate |
| Dimensions (L x W x H) | 304 x 126 x 50 mm |
| Slot Size | 2.5-slot |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Vulkan API | Vulkan 1.4 |
| Operating System Support | Windows 10/11, Linux |
| Additional Features | NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Broadcast, NVIDIA Studio Drivers |
| Accessories Included | User Manual, 12V-2×6 to 3 x 8-pin PCIe Adapter, VGA Holder |
| Warranty | 3 Years Manufacturer Warranty |
