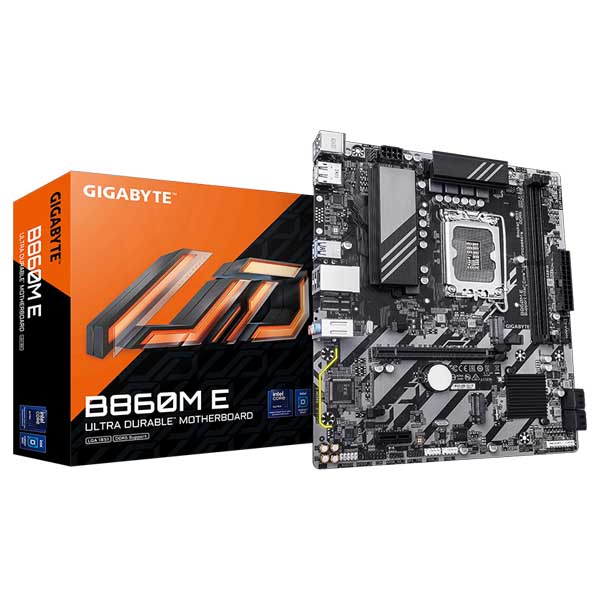

GIGABYTE B860M E M-ATX Motherboard (Intel Socket LGA 1851, DDR5)
Feature:
- GIGABYTE B860M E Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UIÂ : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networking : GbE LAN
- Extended Connectivity : HDMI, DisplayPort
Infinite Memory Performance
GIGABYTE B860M E motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE B860M E Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
GIGABYTE B860M E motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Specification:
| CPU | Supports Intel® Core™ Ultra Processors |
| CPU Socket | LGA1851 |
| Chipset | Intel® B860 Express Chipset |
| Memory Type | DDR5 |
| Memory Slots | 2 × DDR5 DIMM |
| Maximum Memory Capacity | 128GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR5 5600–6400 MT/s (Native), DDR5 6600–8800 MT/s (O.C.) |
| ECC Memory Support | ECC Un-buffered DIMM (Non-ECC Mode) |
| XMP Support | Yes |
| Graphics Support | Intel® HD Graphics (CPU Dependent) |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| DisplayPort | 1 × DisplayPort 2.1 |
| DisplayPort Maximum Resolution | 3840 × 2160 @ 144Hz |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| S/PDIF Support | Yes |
| LAN | Realtek® Gigabit Ethernet (10/100/1000 Mbps) |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slot | 1 × PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 PCIe 4.0 x4/x2 (2280) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| Rear USB 3.2 Gen 1 | 4 × USB 3.2 Gen 1 |
| Rear USB 2.0 | 2 × USB 2.0/1.1 |
| Internal USB 3.2 Gen 1 Header | 1 (Supports 2 Ports) |
| Internal USB 2.0 Headers | 2 (Supports 4 Ports) |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin ATX 12V |
| CPU Fan Header | 1 |
| CPU Pump Header | 1 |
| System Fan / Pump Header | 1 |
| Addressable RGB Headers | 2 × Addressable RGB Gen2 |
| Front Panel Header | 1 |
| Front Audio Header | 1 |
| S/PDIF Out Header | 1 |
| TPM Header | 1 |
| Serial Port Header | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel Ports | 1 × PS/2 Keyboard/Mouse, 1 × HDMI, 1 × DisplayPort, 4 × USB 3.2 Gen 1, 2 × USB 2.0, 1 × RJ-45, 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 × 21.5 cm) |
