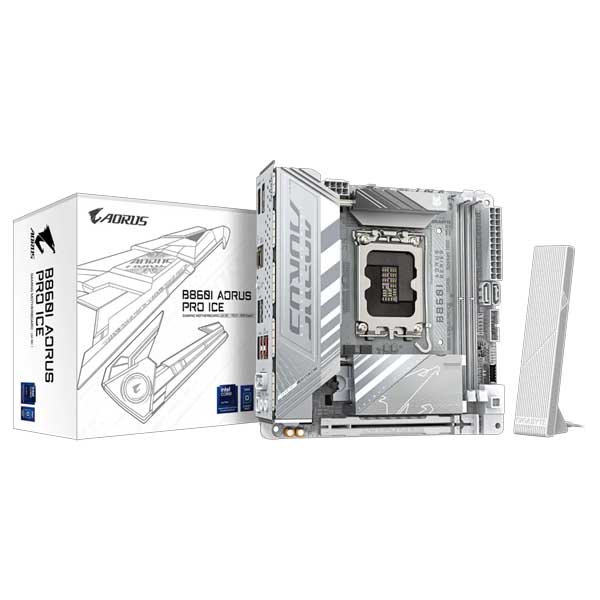

GIGABYTE B860I Aorus Pro ICE WIFI White M-ITX Motherboard (Intel Socket LGA 1851, DDR5, WiFi 7)
Feature:
- GIGABYTE B860I Aorus Pro ICE WIFI White Supports Intel® Core™ Ultra processors (Series 2)
- Digital 8+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : ThunderBolt4™ Type-C with DP-Alt, HDMI, DisplayPort
Infinite Memory Performance
GIGABYTE B860I Aorus Pro ICE WIFI White gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Better Play Elite Series, steady power keeps your gaming smooth.
Comprehensive Thermal
GIGABYTE B860I Aorus Pro ICE WIFI White motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Specification:
| Brand | Gigabyte |
| Modal | B860I AORUS PRO ICE |
| Color | White |
| CPU | LGA1851 socket: Support for Intel ® Core™ Ultra Processors |
| (Go to GIGABYTE’s website for the latest CPU support list.) | |
| L3 cache varies with CPU | |
| Chipset | Intel ® B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| – 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120×2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to triple-display at the same time | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) | |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Storage Interface | |
| CPU: | |
| – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) | |
| Chipset: | |
| – 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 2 x SATA 6Gb/s connectors | |
| RAID 0 and RAID 1 support for SATA storage devices | |
| USB | CPU: |
| – 1 x USB4® USB Type-C® port on the back panel | |
| Chipset: | |
| – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | |
| – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | |
| 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan header | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 2 x M.2 Socket 3 connectors | |
| 2 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x speaker header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x DisplayPort* |
| 1 x HDMI port* | |
| 1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port) | |
| 3 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| * Actual support may vary by CPU. | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Warranty | 3 Years |
| Note | Price, Feature and Specifications Are Subject To Change Without Notice. |
