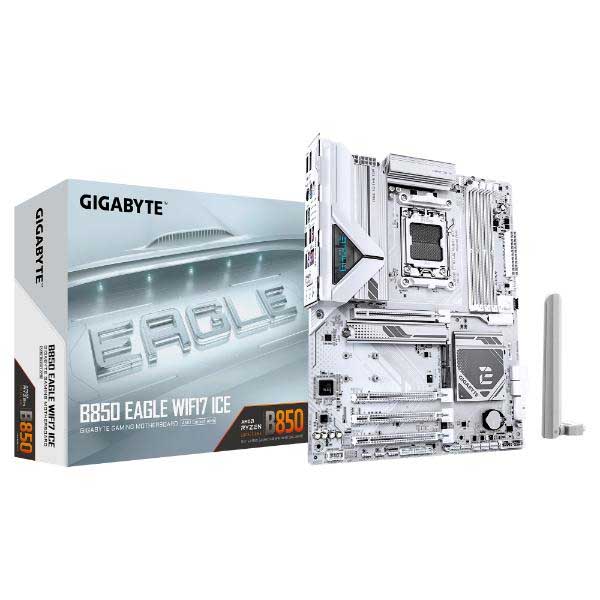

GIGABYTE B850 Eagle ICE WiFi ATX Motherboard (AMD Socket AM5, DDR5, WiFi 7)
Sale!

GIGABYTE B850 Eagle ICE WiFi ATX Motherboard (AMD Socket AM5, DDR5, WiFi 7)

Original price was: ₹25,999.Current price is: ₹19,899. (Inclusive of GST)

-23%
Brand:

Out of stock

GIGABYTE B850 Eagle ICE WiFi ATX Motherboard (AMD Socket AM5, DDR5, WiFi 7)

Feature:

  • X3D Turbo Mode : Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5 : Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Processors
  • Digital 8+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPOâ„¢Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity : HDMI, Displayport
  • PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

X3D Turbo Mode

Boost the performance of your Ryzen 9000 processor with a single click by enabling Gigabyte’s X3D Turbo Mode through the BIOS. This setting can enhance frame rates by up to 18% and works with both X3D and non X3D processors.

Steady Power

A 8+2+2 phase digital twin VRM design delivers consistent performance, capable of handling overclocked hardware. The UD Power Connector design and solid pins enhances conductivity and thermal dissipation.

D5 Bionic Corsa

One-click optimizing and overclocking, an advanced PCB design, and AI-driven advanced BIOS optimization help you to get the most performance out of your system.

Comprehensive Thermal Design

Large VRM heatsinks help to maintain optimal performance under heavy loads. M.2 Thermal Guard technology quickly dissipates heat from your SSDs to help avoid speed throttling. Additionally, the rear panel features small cooling vents. You can also control AIO fan speeds through the BIOS.

Smart Fan 6

Monitor the cooling performance of your build with Smart Fan 6, a free suite dedicated to ensuring your components run properly. Temperature sensors are located around the board, along with hybrid fan headers, giving you optimal control and cooling. When the optimal temperature is met, the fans automatically stop, promoting fan lifespan.

DIY Friendly

M.2 EZ-Latch Click, M.2 EZ-Latch Plus, and PCIe EZ-Latch Plus designs simplifies SSD and graphics card installation. The EZ Debug Zone helps you to quickly diagnose and troubleshoot issues. The stainless steel reinforced PCIe x16 slot provides better support for heavy expansion cards.

Hi-Fi Audio

Built with gaming and media enthusiasts in mind, the EAGLE WIFI7 ICE uses high-quality components and an audio noise guard to create deep and immersive audio experience.

RGB Fusion

Illuminate your rig with an abundance of color with RGB Fusion Software. Giving you a variety of effects and colors to choose from, you can turn your system into the centerpiece of your gaming room.

Easy BIOS Update

With GIGABYTE Q-Flash Plus, you can update the BIOS without having to install a CPU, memory, or graphics card. Simply download and save a new BIOS file onto a USB flash drive, then plug it into the designated port before pressing the dedicated Q-Flash Plus button.

Specification:

CPUSupports AMD Ryzenâ„¢ 9000 Series / Ryzenâ„¢ 8000 Series / Ryzenâ„¢ 7000 Series Processors
CPU SocketAMD Socket AM5
ChipsetAMD B850
Memory TypeDDR5
Memory Slots4 × DDR5 DIMM
Maximum Memory Capacity256GB
Memory ArchitectureDual Channel
Memory SupportDDR5 4400–8200+ MT/s (OC)
Memory FeaturesNon-ECC Un-buffered DIMM, AMD EXPOâ„¢, Intel XMP
Graphics SupportAMD Radeonâ„¢ Graphics (CPU Dependent)
DisplayPort1 × DisplayPort 1.4
DisplayPort Maximum Resolution3840 × 2160 @ 144Hz
HDMI Port1 × HDMI 2.1
HDMI Maximum Resolution4096 × 2160 @ 60Hz
Audio CodecRealtek® Audio CODEC
Audio Channels2 / 4 / 5.1 / 7.1 Channel HD Audio
LANRealtek® 2.5GbE LAN
Wi-FiRealtek® Wi-Fi 7 RTL8922AE
BluetoothBluetooth 5.4
Wireless Bands2.4GHz / 5GHz / 6GHz
PCIe x16 Slot (CPU)1 × PCIe 5.0 x16 (Ryzen™ 9000/7000), PCIe 4.0 x8/x4 (Ryzen™ 8000)
PCIe x16 Slot (Chipset)1 × PCIe 4.0 x4
PCIe x1 Slots2 × PCIe 3.0 x1
M.2 Slots3 × M.2 Socket 3
CPU M.2 Slot 1PCIe 5.0 x4/x2 (Ryzenâ„¢ 9000/7000), PCIe 4.0 x4/x2 (Ryzenâ„¢ 8000)
CPU M.2 Slot 2PCIe 4.0 x4/x2 (Ryzenâ„¢ 9000/7000), PCIe 4.0 x4/x2 / x2 (Ryzenâ„¢ 8000)
Chipset M.2 SlotPCIe 4.0 x2
SATA Ports4 × SATA 6Gb/s
RAID SupportNVMe RAID 0 / 1 / 5 / 10, SATA RAID 0 / 1 / 10
Rear USB Type-C1 × USB 3.2 Gen 1
Rear USB 3.2 Gen 22 × Type-A
Rear USB 3.2 Gen 12 × Type-A
Rear USB 2.04 × USB 2.0
Internal USB Type-C Header1 × USB 3.2 Gen 1
Internal USB 3.2 Gen 1 Header1 (Supports 2 Ports)
Internal USB 2.0 Headers2 (Supports 4 Ports)
Main Power Connector1 × 24-pin ATX
CPU Power Connectors1 × 8-pin ATX 12V, 1 × 4-pin ATX 12V
CPU Fan Header1
CPU Pump Header1
System Fan Headers3
System Pump Header1
Addressable RGB Headers3 × Addressable RGB Gen2
RGB Header1
Front Panel Header1
Front Audio Header1
TPM Header1
Reset Button1
Reset Jumper1
Clear CMOS Jumper1
Back Panel PortsDisplayPort, HDMI, Q-Flash Plus Button, 4 × USB 2.0, PS/2 Keyboard/Mouse, 2 × USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-C, RJ-45, 2 × USB 3.2 Gen 1, 2 × Antenna Connectors, 3 × Audio Jacks
I/O ControlleriTE® I/O Controller Chip
Hardware MonitoringVoltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control
BIOS1 × 256 Mbit AMI UEFI BIOS
Unique FeaturesGIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled SoftwareNorton® Internet Security (OEM), LAN Bandwidth Management Software
Operating SystemWindows 11 64-bit
Form FactorATX (30.5 × 24.4 cm)

Additional information

Weight3 kg
Brand

Gigabyte

Form Factor

ATX

Memory Slot

4 Slot

Memory Slot Type

DDR5

Platfrom

AMD

Socket

AM5
