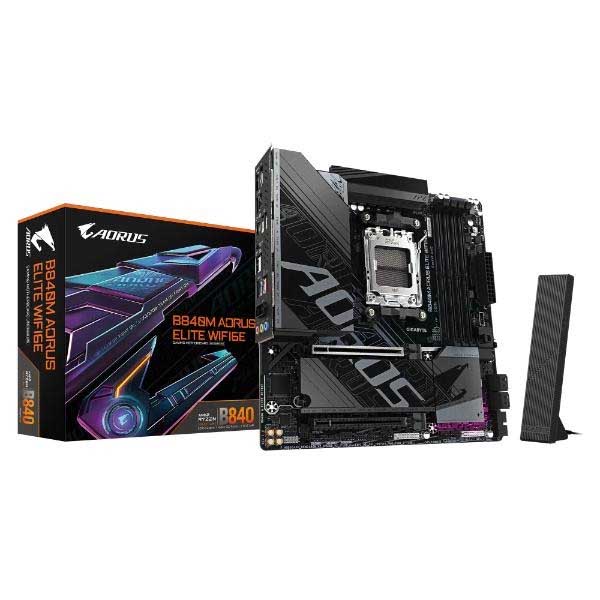

GIGABYTE B840M Aorus Elite WIFI M-ATX Motherboard (AMD Socket AM5, DDR5, WIFI 6E)
Feature:
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5Â : Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Processors
- Digital twin 10+2+2 phases VRM solution
- Dual Channel DDR5Â : 4*DIMMs with AMD EXPOâ„¢Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UIÂ : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
- PCIe UD Slot : PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Infinite Memory Performance
GIGABYTE B840M Aorus Elite WIFI motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Born from Ultra Durableâ„¢
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. Elite series motherboards are engineered to endure and excel.
Specification:
| CPU | Supports AMD Ryzenâ„¢ 9000 Series / Ryzenâ„¢ 8000 Series / Ryzenâ„¢ 7000 Series Processors |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD B840 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR5 4400–8200 MT/s (OC) |
| Memory Features | Non-ECC Un-buffered DIMM, AMD EXPOâ„¢, Intel XMP |
| Graphics Support | AMD Radeonâ„¢ Graphics (CPU Dependent) |
| Graphics Outputs | 1 × DisplayPort 1.4, 1 × HDMI 2.1 |
| DisplayPort Maximum Resolution | 3840 × 2160 @ 144Hz |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| LAN | Realtek® 2.5Gb Ethernet |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE |
| Bluetooth | Bluetooth 5.3 |
| Expansion Slots | 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 3.0 x16 (x4, Chipset) |
| CPU PCIe Slot | PCIe 4.0 x16 (Ryzenâ„¢ 9000/7000), PCIe 4.0 x8/x4 (Ryzenâ„¢ 8000) |
| Chipset PCIe Slot | 1 × PCIe 3.0 x16 (x4 Mode) |
| M.2 Slots | 2 × M.2 Socket 3 |
| M.2_1 | PCIe 4.0 x4/x2, Supports 2580/2280 SSD |
| M.2_2 | PCIe 4.0 x4/x2 (Ryzenâ„¢ 9000/7000 & Phoenix 1), PCIe 4.0 x2 (Phoenix 2), Supports 22110/2280 SSD |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | NVMe RAID 0 / 1 / 5 / 10 (RAID 5 on Ryzenâ„¢ 9000 only), SATA RAID 0 / 1 / 10 |
| Rear USB Type-C | 1 × USB 3.2 Gen 1 |
| Rear USB 3.2 Gen 2 | 1 × Type-A |
| Rear USB 3.2 Gen 1 | 2 × Type-A |
| Rear USB 2.0 | 4 × USB 2.0 |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 1 |
| Internal USB 3.2 Gen 1 Header | 1 (Supports 2 Ports) |
| Internal USB 2.0 Headers | 2 (Supports 4 Ports) |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin ATX 12V |
| CPU Fan Header | 1 |
| CPU Pump Header | 1 |
| System Fan Headers | 3 |
| System Pump Header | 1 |
| Addressable RGB Headers | 3 × Addressable RGB Gen2 |
| RGB Header | 1 |
| Front Panel Header | 1 |
| Front Audio Header | 1 |
| TPM Header | 1 |
| Reset Button | 1 |
| Reset Jumper | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel Ports | 1 × DisplayPort, 1 × HDMI, 1 × PS/2 Combo Port, 1 × Q-Flash Plus Button, 1 × USB Type-C, 1 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0, 1 × RJ-45 LAN, 2 × Wi-Fi Antenna Connectors, 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro-ATX (24.4 × 24.4 cm) |
| Warranty | 3 Years |
