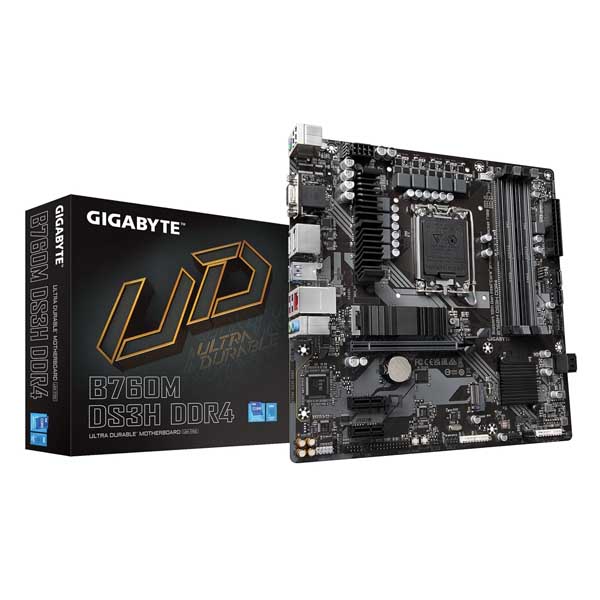

GIGABYTE B760M DS3H M-ATX Motherboard (Intel Socket LGA 1700, DDR4)
Feature:
- GIGABYTE B760M DS3H Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
6+2+1 Phases Hybrid Digital VRM Design
• 6+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation
• Premium Choke and Capacitors to improve transient response and minimize oscillation
GIGABYTE B760M DS3H Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE B760M DS3H is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Specification:
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® Processors |
| CPU Socket | LGA1700 |
| Chipset | Intel® B760 Express Chipset |
| Memory Type | DDR4 |
| Memory Slots | 4 × DDR4 DIMM |
| Maximum Memory Capacity | 128GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR4 2133–3200 MT/s (Native), DDR4 3300–5333 MT/s (O.C.) |
| ECC Memory Support | ECC Un-buffered DIMM (Non-ECC Mode) |
| XMP Support | Yes |
| Graphics Support | Intel® HD Graphics (CPU Dependent) |
| D-Sub Port | 1 × D-Sub |
| D-Sub Maximum Resolution | 1920 × 1200 @ 60Hz |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| DisplayPort | 2 × DisplayPort 1.2 |
| DisplayPort Maximum Resolution | 4096 × 2304 @ 60Hz |
| Multi-Display Support | Up to Quad Display |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| S/PDIF Support | Yes |
| LAN | Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 Socket 3 |
| M.2_1 | PCIe 4.0 x4/x2 (CPU) |
| M.2_2 | PCIe 4.0 x4/x2 (Chipset) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| Rear USB Type-C | 1 × USB 3.2 Gen 2 Type-C |
| Rear USB 3.2 Gen 1 | 3 × USB 3.2 Gen 1 |
| Rear USB 2.0 | 2 × USB 2.0 |
| Internal USB 3.2 Gen 1 Header | 1 (Supports 2 Ports) |
| Internal USB 2.0 Headers | 2 (Supports 4 Ports) |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin ATX 12V |
| CPU Fan Header | 1 |
| System Fan Headers | 3 |
| Addressable RGB Header | 1 |
| RGB Header | 1 |
| Front Panel Header | 1 |
| Front Audio Header | 1 |
| TPM Header | 1 |
| Serial Port Header | 1 |
| Parallel Port Header | 1 |
| S/PDIF Out Header | 1 |
| Q-Flash Plus Button | 1 |
| Reset Button | 1 |
| Reset Jumper | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel Ports | 2 × USB 2.0, 1 × PS/2, 1 × D-Sub, 1 × HDMI, 2 × DisplayPort, 3 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-C, 1 × RJ-45, 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 128 Mbit AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
