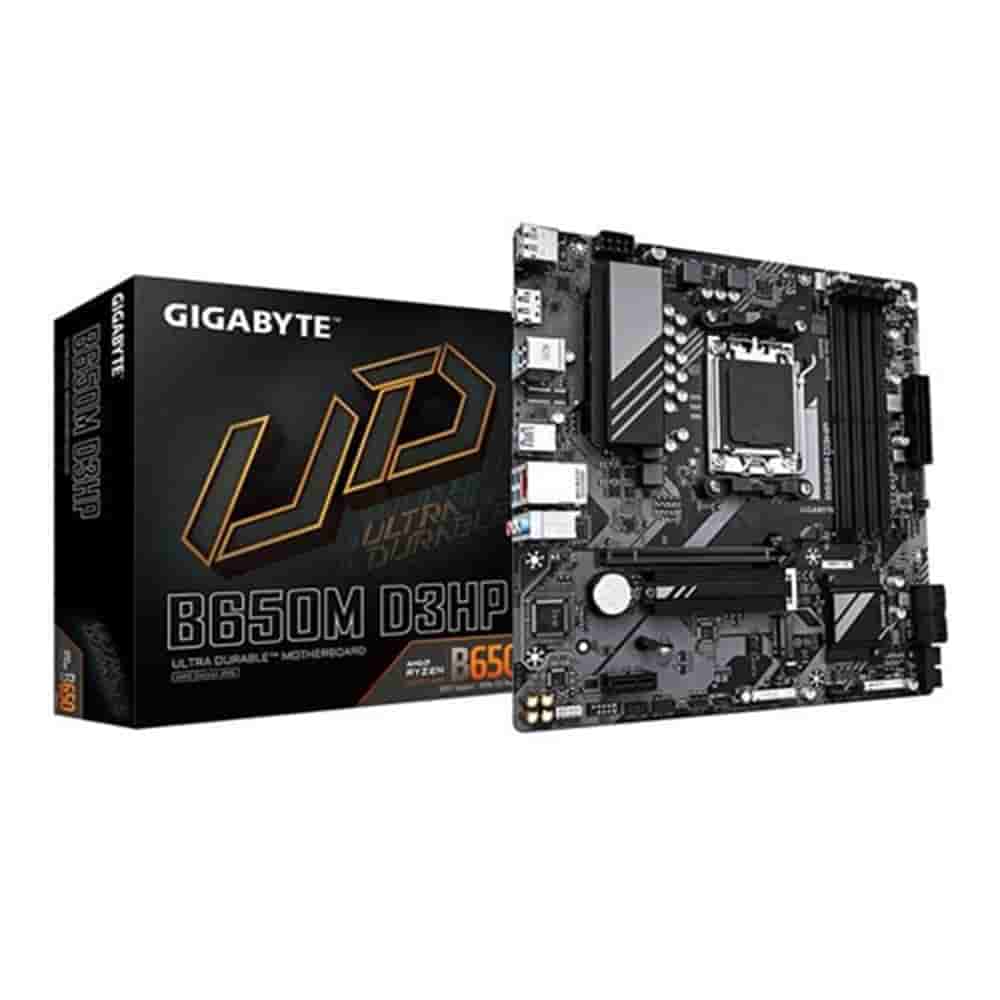

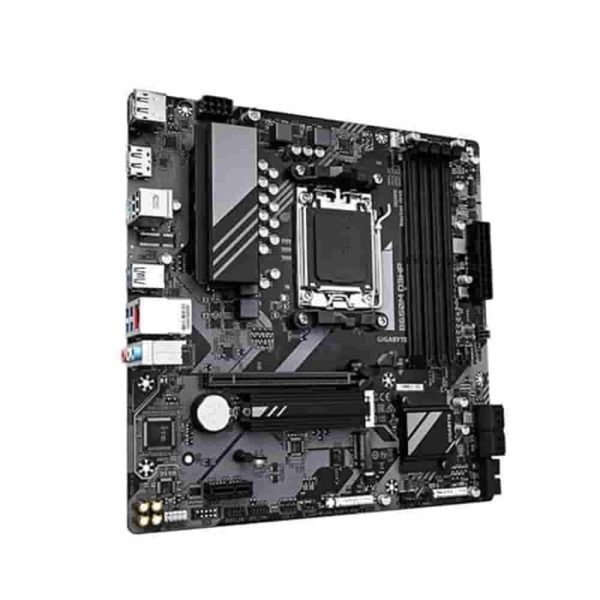

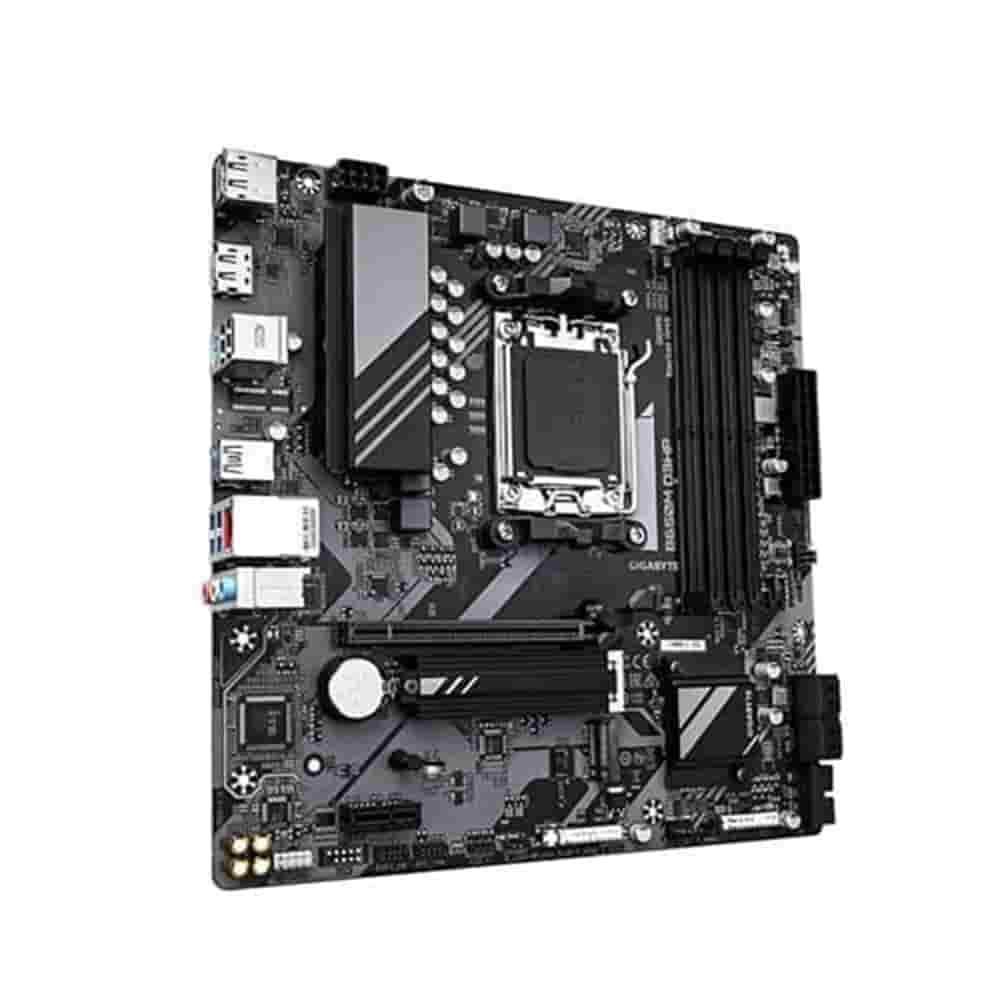

Gigabyte B650M D3HP (rev. 1.0) Motherboard :
Features :
- AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance:5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:2*DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Overview :
Durable Performance
Gigabyte B650M D3HP (rev. 1.0) Motherboard built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The Gigabyte B650M D3HP (rev. 1.0) Motherboard have ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style of the Gigabyte B650M D3HP (rev. 1.0) Motherboard.
Specifications :
CPU | AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors |
Chipset | AMD B650 |
Memory | – Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules<br>- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)<br>- Dual channel memory architecture<br>- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br>- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
Onboard Graphics | – Integrated Graphics Processor with AMD Radeon™ Graphics support<br>- 2 x DisplayPorts (3840×2160@144 Hz, DP 1.4)<br>- 1 x HDMI port (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3)<br>- Support for up to triple-display at the same time |
Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (configurable via audio software) |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots | – 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> – AMD Ryzen™ 7000 Series: PCIe 4.0 x16 mode<br> – AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode<br> – AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode<br>- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
Storage Interface | – 1 x M.2 connector (M2A_CPU), integrated in the CPU (Socket 3, M key, type 2580 SSDs):<br> – AMD Ryzen™ 7000 Series: PCIe 4.0 x4/x2 SSDs<br> – AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x4/x2 SSDs<br> – AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4/x2 SSDs<br>- 1 x M.2 connector (M2C_SB), integrated in the Chipset (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs)<br>- 4 x SATA 6Gb/s connectors<br>- RAID 0, RAID 1, and RAID 10 support for NVMe and SATA storage devices |
USB | CPU:<br> – 1 x USB Type-C® port (USB 3.2 Gen 1)<br> – 1 x USB 3.2 Gen 1 port<br> – 1 x USB 2.0/1.1 port<br>Chipset:<br> – 2 x USB 3.2 Gen 1 ports<br> – 1 x USB Type-C® port (USB 3.2 Gen 1, internal header)<br> – 2 x USB 3.2 Gen 1 ports (internal header)<br> – 5 x USB 2.0/1.1 ports (1 back panel, 4 internal headers) |
Internal I/O Connectors | – 1 x 24-pin ATX main power connector<br>- 1 x 8-pin ATX 12V power connector<br>- 1 x CPU fan header<br>- 2 x system fan headers<br>- 2 x addressable LED strip headers<br>- 1 x RGB LED strip header<br>- 2 x M.2 Socket 3 connectors<br>- 4 x SATA 6Gb/s connectors<br>- 1 x front panel header<br>- 1 x front panel audio header<br>- 1 x USB Type-C® header (USB 3.2 Gen 1)<br>- 1 x USB 3.2 Gen 1 header<br>- 2 x USB 2.0/1.1 headers<br>- 1 x Trusted Platform Module header<br>- 1 x Q-Flash Plus button<br>- 1 x reset jumper<br>- 1 x Clear CMOS jumper |

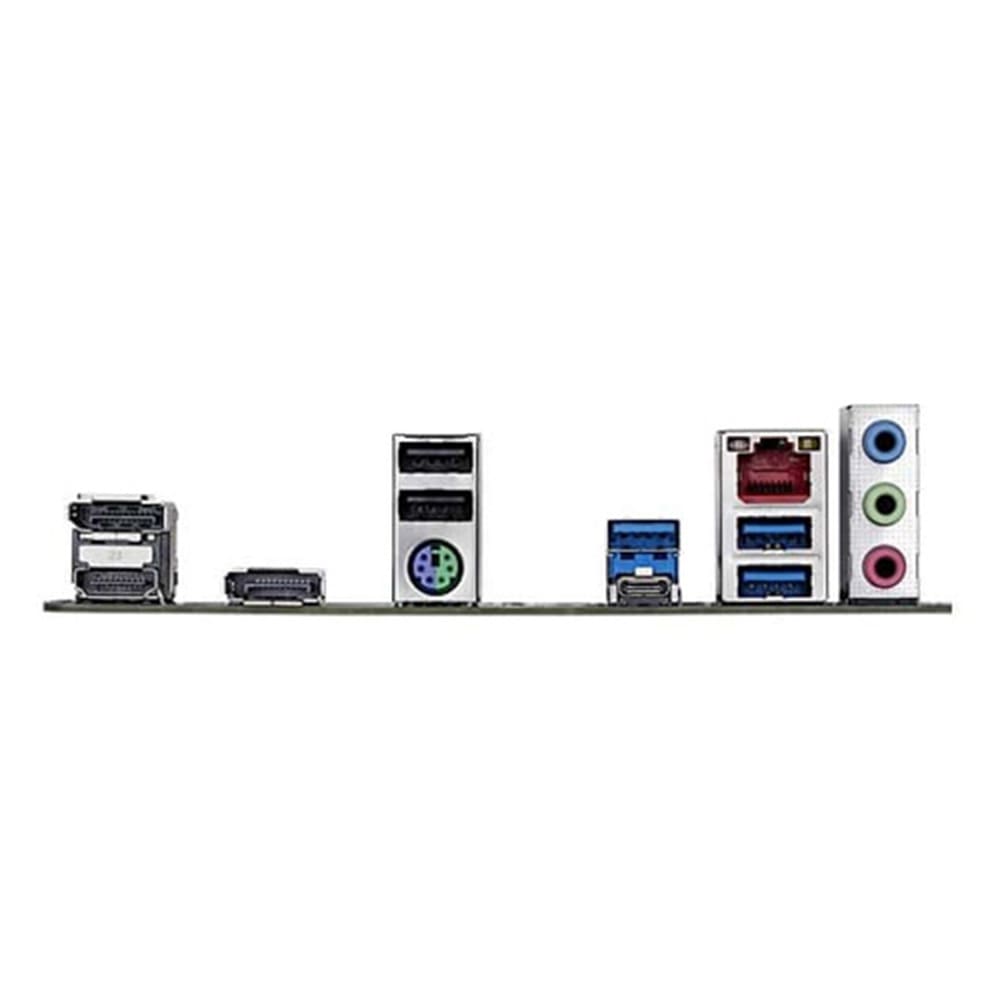

Back Panel Connectors | – 1 x PS/2 keyboard/mouse port<br>- 1 x USB Type-C® port (USB 3.2 Gen 1)<br>- 3 x USB 3.2 Gen 1 ports<br>- 2 x USB 2.0/1.1 ports<br>- 1 x HDMI port<br>- 2 x DisplayPorts<br>- 1 x RJ-45 port<br>- 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control (dependent on installed fan) |
BIOS | – 1 x 256 Mbit flash<br>- Use of licensed AMI UEFI BIOS<br>- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | – Support for GIGABYTE Control Center (GCC)<br>- Support for Q-Flash<br>- Support for Q-Flash Plus |
Bundled Software | – Norton® Internet Security (OEM version)<br>- LAN bandwidth management software |
Operating System Support | – Windows 11 64-bit<br>- Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Warranty | 3 Years |
