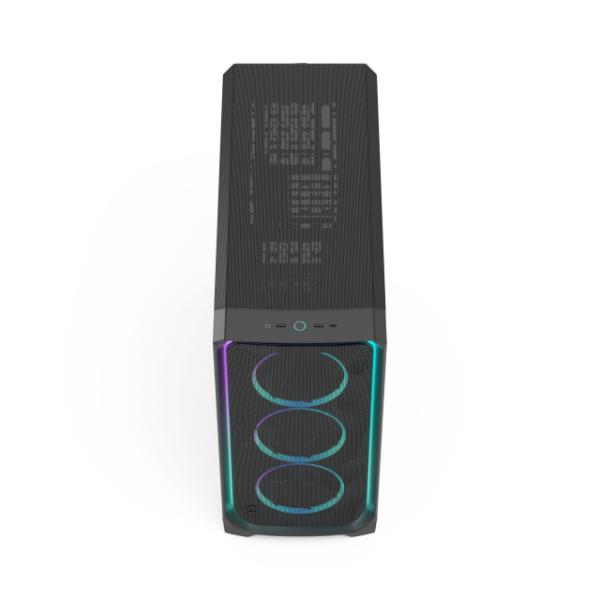

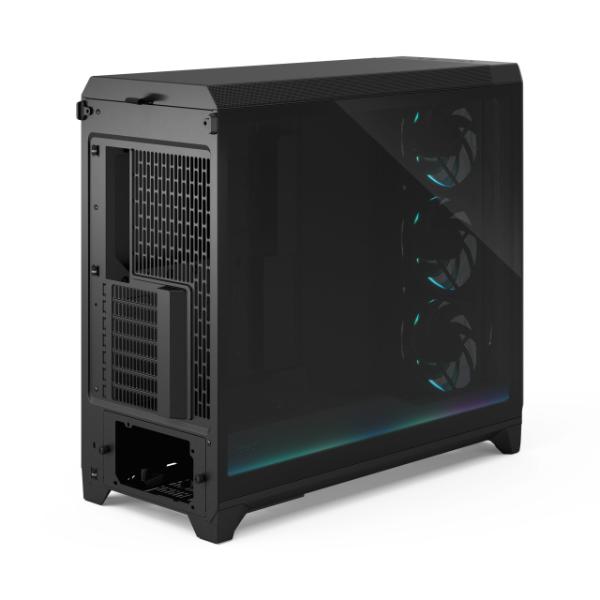

Fractal Design Meshify 3 XL Ambience Pro RGB Full Tower Cabinet with TG Light Tint Tempered Glass, Type C Port, Upto E-ATX Support, Upto 420mm Radiator Support
Overview :
The Fractal Design Meshify 3 XL Ambience Pro RGB E-ATX Full Tower PC Case Cabinet – Black TG Light Tint Tempered Glass, Mesh Front Panel, USB Type‑C, 420 mm Radiator Support is a premium Fractal Design Meshify 3 XL Ambience E-ATX full tower PC case offering excellent airflow with a stylish black tempered glass light tint side panel. Fractal Design Meshify 3 XL Ambience Equipped with pre-installed ARGB Momentum fans and USB Type-C connectivity, this case supports high-end gaming builds with up to 420mm radiators and large GPUs. Fractal Design Meshify 3 XL Ambience advanced cooling options and sleek design make it ideal for enthusiasts and custom water-cooling setups.
Key Features :
E-ATX Full Tower Compatibility: Supports motherboards up to 330mm wide (E-ATX, SSI-EEB), ideal for high-end workstation and gaming builds.
High Airflow Design: Mesh front panel combined with a light-tinted tempered glass side panel balances airflow and aesthetics.
Pre-installed ARGB Momentum Fans: Includes three 140mm ARGB fans with fluid dynamic bearings for quiet and efficient cooling.
Radiator Support: Supports up to 420mm radiators on top, 360mm front/side, enabling extensive liquid cooling configurations.
USB Type-C (20 Gbps): Front panel includes USB-C along with USB-A ports and audio jack for fast connectivity.
Cable Management: 37.5mm cable routing space with Velcro straps and cable aligners for clean builds.
Adjust Pro Hub Lighting: Advanced ARGB lighting system controlled via web interface, no additional software required.
Dust Filtration: Removable dust filters on front, top, and PSU areas to keep components clean.
Spacious GPU and PSU Clearance: Supports GPUs up to 512mm and PSUs up to 230mm in length.
Specifications Table :
| Category | Details |
|---|---|
| Form Factor | E-ATX / ATX / mATX / ITX / SSI-CEB / SSI-EEB |
| Dimensions (L×W×H) | 575 × 245 × 515 mm |
| Weight | Approx. 10.9 kg |
| Motherboard Support | Up to 330 mm width (E-ATX, SSI-EEB, CEB, ATX, mATX, ITX) |
| GPU Length Support | Up to 512 mm |
| CPU Cooler Height | Up to 182 mm |
| PSU Length Support | Up to 230 mm |
| Drive Bays | 2 × 3.5″ + 4 × 2.5″ (plus 1 dedicated 2.5″) |
| Expansion Slots | 7 full-height slots |
| Included Fans | 3 × 140 mm Momentum ARGB fans |
| Fan Mounting Capacity | Front: 3 × 140/2 × 180 mm Top: 3 × 140/120 mm Rear: 1 × 140 mm Side: 3 × 140 mm |
| Radiator Support | Top: up to 420 mm Front/Side: up to 360 mm Rear: 120/140 mm |
| Front I/O Ports | 1 × USB Type-C (20 Gbps), 2 × USB-A (5 Gbps), 1 × 3.5 mm combo jack |
| Cable Management Space | 37.5 mm with straps and cable aligners |
| Side Panels | Left: Light-tinted tempered glass Right: Steel |
| Material | Steel chassis with tempered glass |
| ARGB Lighting Control | Adjust Pro Hub, browser-based control |
| Dust Filters | Removable PSU, front, and top filters |
| Warranty | 2 years |
