Deepcool PX850G 850W ATX 3.0 80 Plus Gold Power Supply :

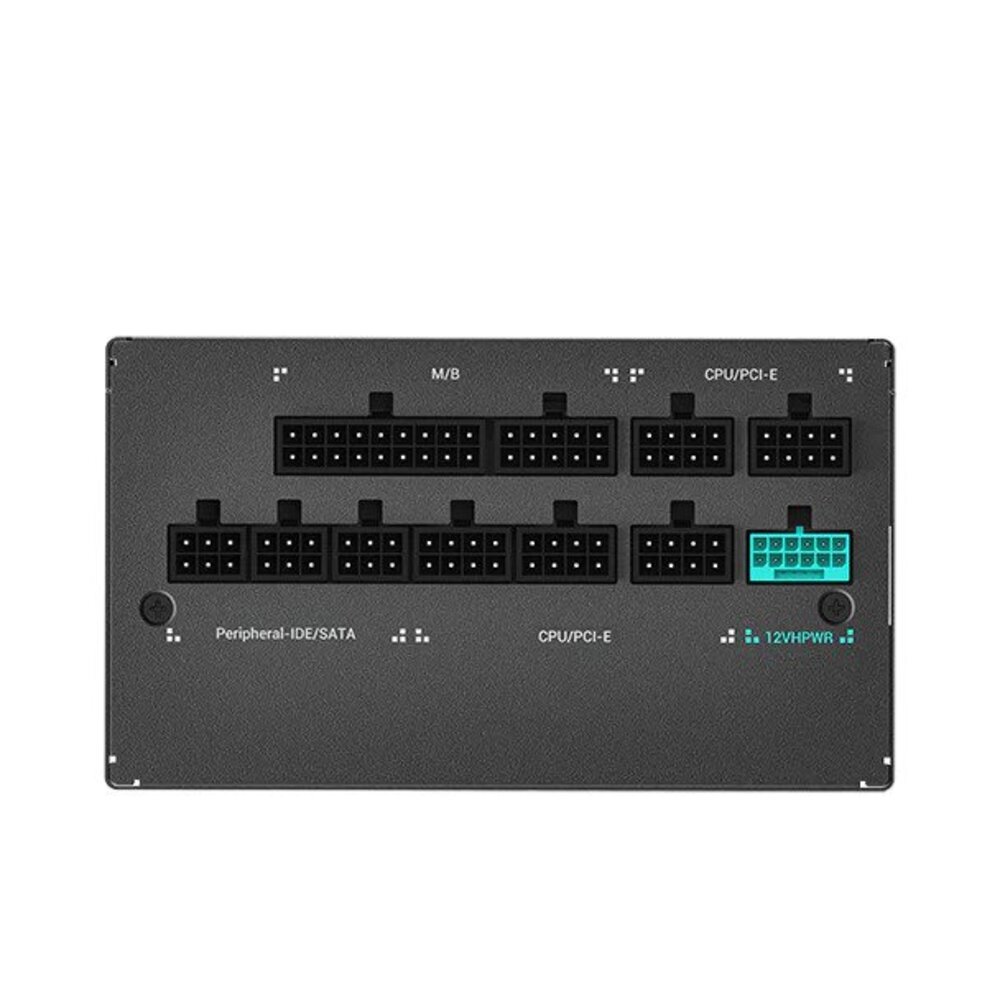

The DeepCool PX850G 850W ATX 3.0 is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX850G provides stable power for a wide range of components.
PAST, PRESENT, AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The Deepcool PX850G 850W ATX 3.0 will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1000G will operate at altitudes up to 5000 meters above sea level.
Through the use of a dual main capacitor topology, the Deepcool PX850G 850W ATX 3.0 can keep the hold-up time to ≥ 16ms under full load.
PCI-E 5.0 POWER PERFECTED
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
STATIC TO DYNAMIC
The Deepcool PX850G 850W ATX 3.0 comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
PEACE OF MIND
The Deepcool PX850G 850W ATX 3.0 includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
THE GLORY OF GOLD
80 Plus Gold certified to ensure 90% efficiency under typical load conditions.
|Product Dimensions||150×160×86mm (W x L x H)|
|Efficiency certification||80Plus GOLD/Cybenetics_Platinum|
|Fan Bearing||FDB (Fluid Dynamic Bearing)|
|Topology||Active PFC + Half Bridge SRC LLC + DC to DC|
|Capacitors||Full Japan Electrolytic Capacitors|
|Power Good Signal||100-150ms|
|Hold Up Time||≥16ms|
|Efficiency||≥90% Under Typical Load(50% Loading)|
|Operation Temperature||0 – 40℃|
|Erp Regulation||ErP 2014|
|Environment Protection||WEEE/中国 RoHS/Triman|
|EAN P/N||6933412716730 R-PX850G-FC0B-UK|
